SPB-5 Medium Range Aluminium Single Point Load Cell
The SPB-5 is a medium range anodised aluminium alloy single point load cells, which has been specifically deigned for platform weighing applications, although it is equally suited to other weighing and force measurement applications where high accuracy is required.
The SPB-5 is suitable for use in platforms with sizes up to 600mm x 600mm. It is environmentally sealed as standard to IP66.
The SPB-5 series can be supplied on it's own or combined with our extensive range of instrumentation to provide a complete load monitoring system.
- Anodised aluminium construction
- Environmentally sealed to IP66
- High accuracy (<±0.02%)
- Ranges from 50 to 635 kg
- Suitable for use in platforms, maximum size 600mm x 600mm

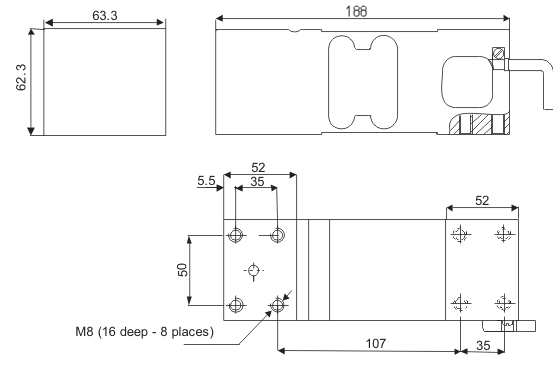

| Rated Load (kg) | 30, 50, 75, 100, 250, 300, 500, 635 | ||||||||||||
| Proof Load | 150% of Rated Load | ||||||||||||
| Ultimate Breaking Load | 250% of Rated Load | ||||||||||||
| Output | 2.0 mV/V at Rated Load (+-10%) | ||||||||||||
| Accuracy | < +-0.02% of Rated Load | ||||||||||||
| Non-Repeatability | < +-0.01% of Rated Load | ||||||||||||
| Excitation Voltage | 10vdc recommended, 15vdc maximum | ||||||||||||
| Bridge Resistance | 415O | ||||||||||||
| Insulation Resistance | > 500MO @ 100vdc | ||||||||||||
| Operating Temperature Range | -20 to +70degC | ||||||||||||
| Compensated Temperature Range | -10 to +40degC | ||||||||||||
| Zero Temperature Coefficient | < +-0.002% of Rated Load/degC | ||||||||||||
| Span Temperature Coefficient | < +-0.001% of Rated Load/degC | ||||||||||||
| Environmental Protection Level | IP66 | ||||||||||||
| Connection Type | PVC screened cable 3m long | ||||||||||||
| Wiring Connections |
|
- Platform scales
- Hanging Scales
- Web tension measurement
- Process weighing
- Single point weighing
