T24-SA Wireless Strain Gauge Load Cell Acquisition Module

The T24-SA is a high performance strain gauge to radio wireless telemetry converter module, offering precision measurement with high performance two-way telemetry. It is used in wireless load, force, pressure  and torque applications.

Low power modes allow the OEM wireless strain gauge sensor transmitter module to ‘power down’ between transmissions or to ‘power off’ completely and can be controlled by other T24 products such as the handheld displays or a base station. The wireless strain gauge sensor can be configured to last several years on 2 x alkaline AA batteries or alternatively be powered from 2 x NiMH or 1 x 3V Lithium.

The high accuracy, low noise measurement electronics in the T24-SA deliver high resolution, low drift results which can be user calibrated over 9 points to enable linearization and to deliver results in user definable engineering units. The results can be transmitted at rates up to 200 per second to other T24 devices such as handheld displays, analog outputs and base stations etc.

The licence-free 2.4GHz radio provides a line-of-sight communication range of 800 metres (2,600 feet), extendable by the use of a repeater. The use of the latest DSSS radio technology minimises local radio interference and ensures data integrity and security.

The wide operating temperature range and the robust technology ensures that the module is not susceptible to harsh physical or electrical environments.

  • Miniature PCB for fitting inside sensors
  • Very low power consumption for long battery life (up to 5 years)
  • Very small size (18 x 40 x 7mm including signal conditioning module)
  • 2 way radio system for data integrity
  • Remote power on/off (sleep/wake)
  • Up to 800m (2,600ft) wireless range
  • Worldwide licence exempt 2.4GHz radio
  • Configured and calibrated via PC using a base station and telemetry toolkit software provided

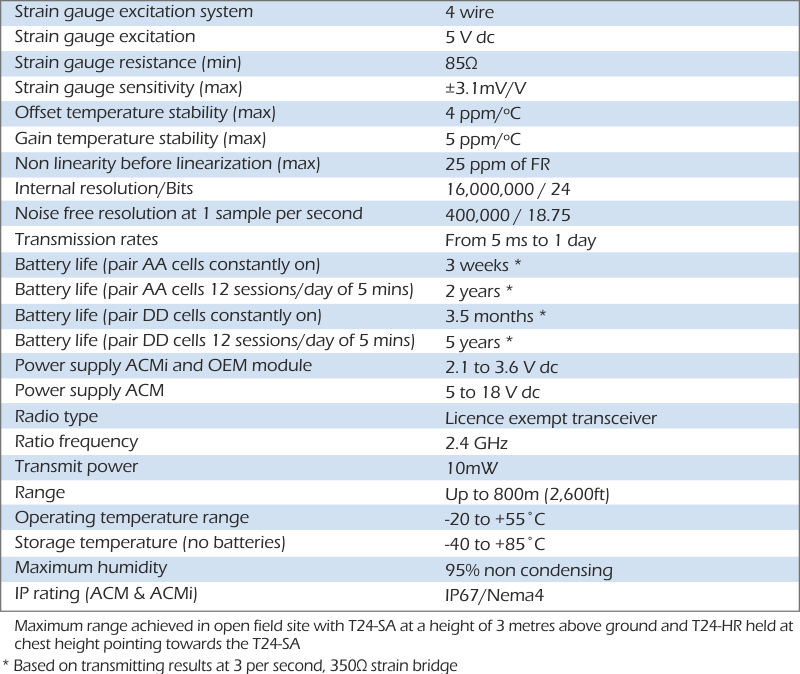

t24-sa specification

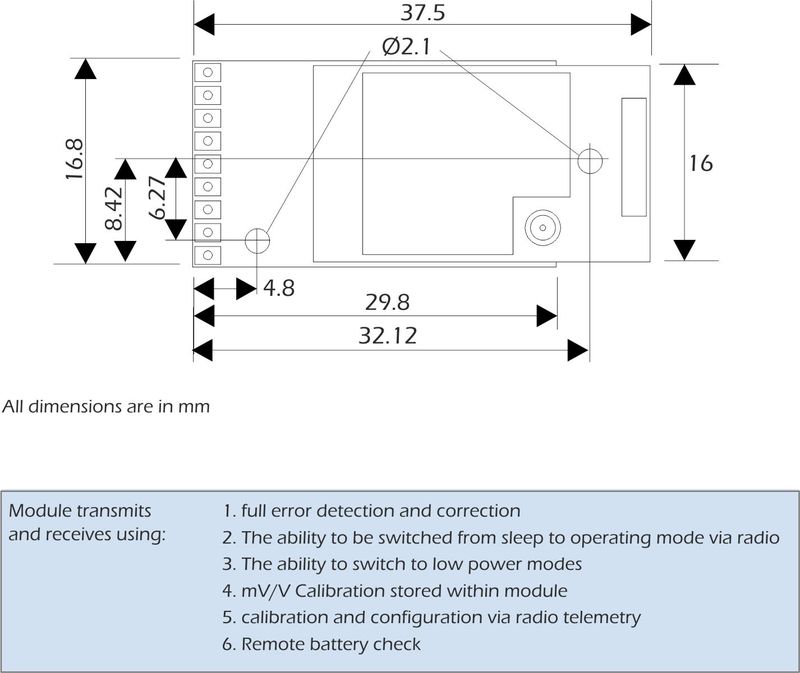

t24-sa dimensions

  • Internal antenna (T24-SAi)
  • External antenna (T24-SAe)
  • Wireless load shackles/load links
  • Crane weighing
  • Cable tension measurement
  • Rotating machine force measurement

Request a quote for T24-SA Wireless Strain Gauge Load Cell Acquisition Module

DescriptionPrice Base StationStockQty
T24-SAE external antenna wireless load cell acquisition board£228.00 1 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 1 pieces or less, we will despatch within 2 working days.

For orders of more than 1 pieces we will generally despatch within 5 working days.
T24-SAI internal antenna wireless load cell acquisition board£228.00 0 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 0 pieces or less, we will despatch within 2 working days.

For orders of more than 0 pieces we will generally despatch within 5 working days.
