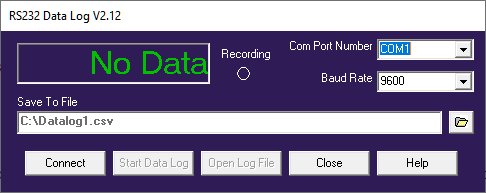

LCM RS232 ASCII Datalogging Software V2.12

Free communications software package for use with the TR150, ADW15 & LCA15 (when RS232 options ordered). This software is designed to evaluate the communications and has a simple data logging function included. The software is compatible with Windows XP, Vista, Windows 7, Windows 8 and Windows 10 (English versions only).

***** Please uninstall all previous versions of the software, before installing this copy ******

The current version is 2.12

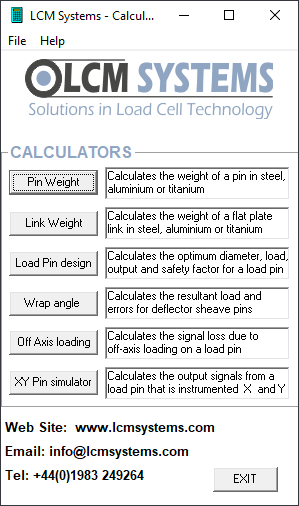

LCM Design Calculator V1.2

The LCM Calculator software enable users to evaluate various functions, including evaluating load pin designs, calculating load pin and link load cell weights, calculation of wrap angle effects on load pins, calculation of load pin errors due to off-centre axis loading and a simulator showing the X/Y axis effects on a typical load pin design.

The current version is V1.2

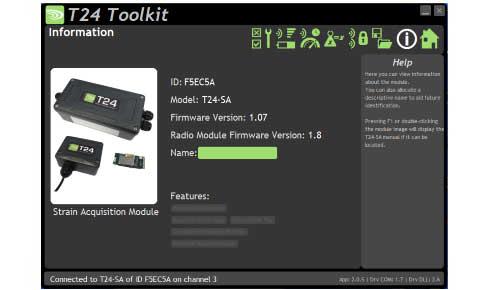

T24 Wireless Telemetry Toolkit

This toolkit allows configuration, calibration and testing of the T24 range of 2.4GHz telemetry products.

What Does It Do?
The T24 Toolkit is a software tool that allows communication with the T24 range of 2.4GHz telemetry products. A suitable telemetry to PC interface will be required such as a base station (T24-BSue).

The current version is V02.09.15

With this software you can:

  • View and alter device parameters
  • Execute commands
  • Save and restore configuration data to files
  • Check radio link quality
  • Calibrate modules
  • Perform simple logging
  • Assign Group Keys for increased security

You would use this software to:

  • Test communications with modules
  • Configure modules
  • Calibrate modules
