LCM4570 12te Subsea Load Shackle with Data Logging

We were contacted by a leading Canadian aquaculture company who were looking for a monitoring system that could log the tension in mooring lines that anchored tanks used for the farming of salmon to the sea bed. They had seen the SHK-B load shackle range on our website, but as it would be located at a depth of around 4.5 metres, needed a special subsea version. An initial system was required for testing purposes (carried out in a tow tank), but if successful multiple systems would be fitted to the fish tanks out in the field. The requirement was to monitor the loads on the mooring lines to check that they did not exceed safe operational limits, particularly during severe weather conditions.

A data logger was required to record measurement readings from the load shackle, which as well as being suitable for long term submersion underwater, also needed to be able to operate unattended for long periods between retrieval of the monitoring system for data download. LCM System engineers designed an IP68 enclosure for housing the data logging electronics, which was simple to open to facilitate easy access to the SD card and to replace the batteries. Lithium batteries were chosen to provide maximum battery life (around 90 days) and the data logger chosen featured low noise, high resolution and low power consumption, with the provision for 2 readings per minute. Data output was in Excel format for straight forward importation to a PC for analysis.

The enclosure was connected to the load shackle via a 1 metre cable and housed within a float to keep it away from the mooring lines, to avoid any possibility of it becoming entangled during stormy seas.

The main criteria we were given was as follows:

  • The load shackle must be suitable for subsea operation
  • Data logging capability required
  • Monitoring system to be robust enough for long term submersion and to withstand storm conditions
  • The data logger must have a minimal power consumption requirement so it can be left unattended for up to 6 weeks
  • Excel data output for importing to a PC
  • Full material traceability required
  • Load shackles to be calibrated to traceable standards

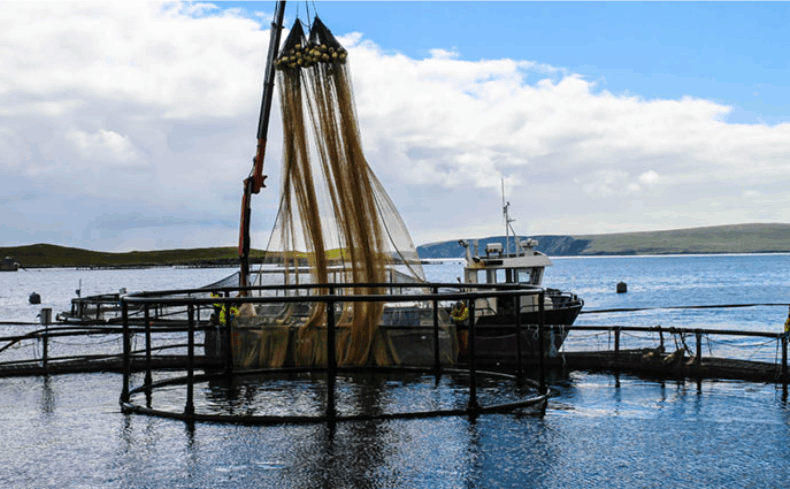

lcm4570 image

  • 12te Shackle and Data Logger
  • 6 weeks unattended operation
  • Data logger powered by 4 x AA lithium batteries
  • Easy to access subsea data logger enclosure for SD card retrieval
  • Environmentally sealed to IP68 for subsea operation
  • Load pin manufactured from 17-4PH H1150 stainless steel
  • Low noise, high resolution, low power consumption data logger, supplying 2 readings per minute
  • Manufactured using a 12te Crosby G2130 bow shackle
  • Removable 512MB SD card
  • Submersible to 4.5m

lcm4570 load shackle specification

lcm4570 load shackle dimensions

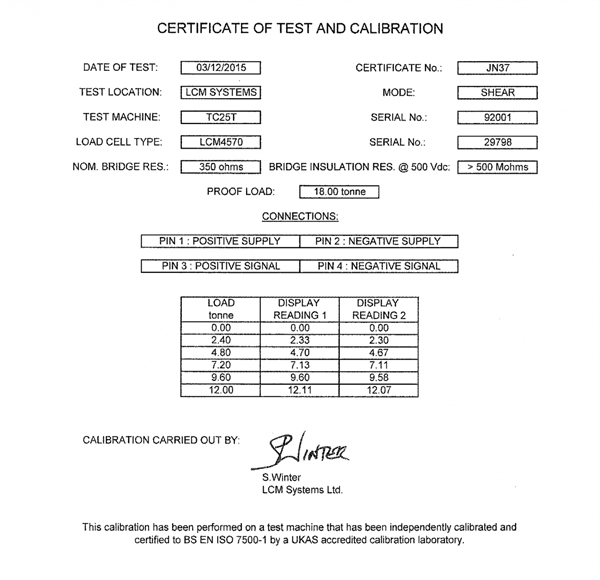

lcm4570 load shackle calibration certificate
