LCM4573 55te Low Temperature Wireless Load Shackle
This enquiry was received from a bespoke solutions provider to the Canadian heavy lift and transportation market. Primarily supplying to the oil, energy, mining and petrochemical markets, their capabilities include jacking, lifting, weighing, ballasting and transportation. They operate a fleet of heavy lift cranes with capacities from 50te to over 1000te.
The requirement was for 55te telemetry load shackles that could function in the sub-zero temperatures of the Canadian winter, so had to be robust enough to operate consistently in temperatures as low as -40°C. The customer had seen our standard TELSHACK-B load shackles on our website, but as they are rated to -20°C, were not quite suitable. Utilising over 30 years of load measurement experience, our design engineers were able to adapt the design to make it suitable for their requirement.
A total of 14 load shackles were supplied, which were fitted to a lifting beam to enable load testing to be carried out. Suspended from a 750te crane, the load beam has 14 sliders along its length, each of which were fitted with a load shackle. Any number of sliders can be used for a lift, depending on the size and weight of the item being lifted. The sliding mechanisms enable the lifting strops to be positioned in such a way as to ensure the load is evenly distributed along the length of the lifting beam and that it is evenly balanced.

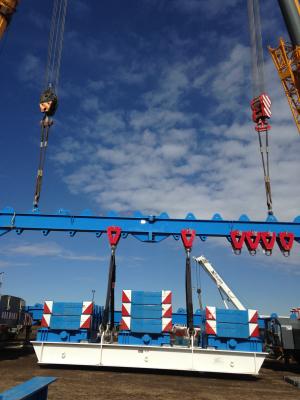

For the purposes of testing the beams load capacity, a number of counter weights were lifted and the resulting loads recorded. The photograph below shows two load shackles in use, but over the course of the tests all 14 were in operation.
The main criteria we were given was as follows:
- Must be suitable for use in extremely low temperatures
- Load cell to be a bow load shackle
- Construction robust enough for heavy lifting environment
- Software to show individual load shackle values as well as total value
- Data transmitted wirelessly to laptop/PC
- Full material traceability
- 55te Low Temperature Load Shackle

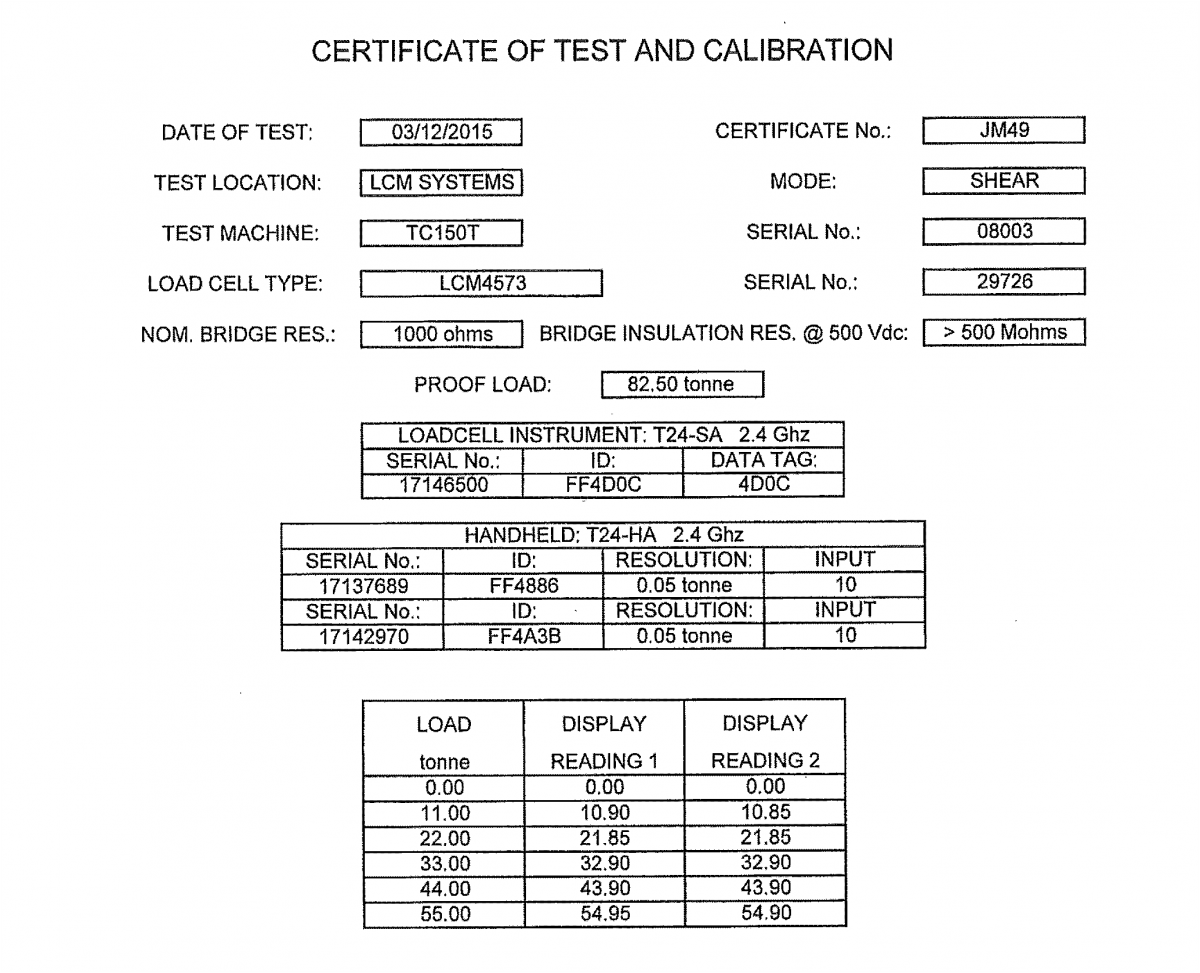

- Complete system supplied fully calibrated and issued with certificates traceable to UKAS Standards
- Crosby G2140 bow shackle
- Environmetally sealed to IP67
- Existing load shackle pin used for added traceability
- Supplied with custom designed software
- Supplied with load centralising bobbin for optimal accuracy
- Temperature range of -40°C to +60°C
- Transmission distanceof 600m (clear line of site)
