LCM4580 Stainless Steel Load Link

We were contacted by a customer with a requirement for a custom design load link for a cable laying application that would be used to monitor the tension on cable as it was being pulled through conduit. Due to the long lengths of cable involved, the customer was concerned that during installation the cable could become entangled and potentially brake, causing delays and incurring additional costs. The load link would therefore monitor the tension in the cable to ensure that it stayed constant, with any increases potentially indicating that the cable had become snagged, enabling the operation to be halted while investigations were carried out. Because of the diameter of the conduit, there were several dimensional restrictions to take into consideration, as well as a requirement for the load link to have rounded edges to help prevent the load link becoming stuck as it travelled round bends, as well as to mitigate against any twisting forces being exerted.

The load link rating needed to be 50kN and the customer additionally requested the holes be sized to fit Green Pin G-4159 6.5te shackles. They also wanted the link to power it (obviously external power supply was not an option for this application). They also needed a removable cover to access the electronics for measurement data download and facilitate easy access to change the batteries when necessary.

Our design engineers were able to design a load link to the required dimensions which also featured environmental sealing to IP66 and had an accuracy 0.3% of rated load.

The main criteria for the project were as follows:

  • 1 x 50kN load link supplied with 2 x Green Pin G-4159 6.5te shackles
  • Dimensional restrictions: no longer than 250mm and no wider than 100mm
  • No cable permitted
  • Must have integral power supply
  • Must incorporate electronics supplied by the customer
  • Removable cover required to access electronics and batteries
  • Data logging facility
  • Environmentally sealed to IP66
  • Holes sized for G-4159 shackles
  • Machined with rounded edges
  • Manufactured from 17-4PH stainless steel

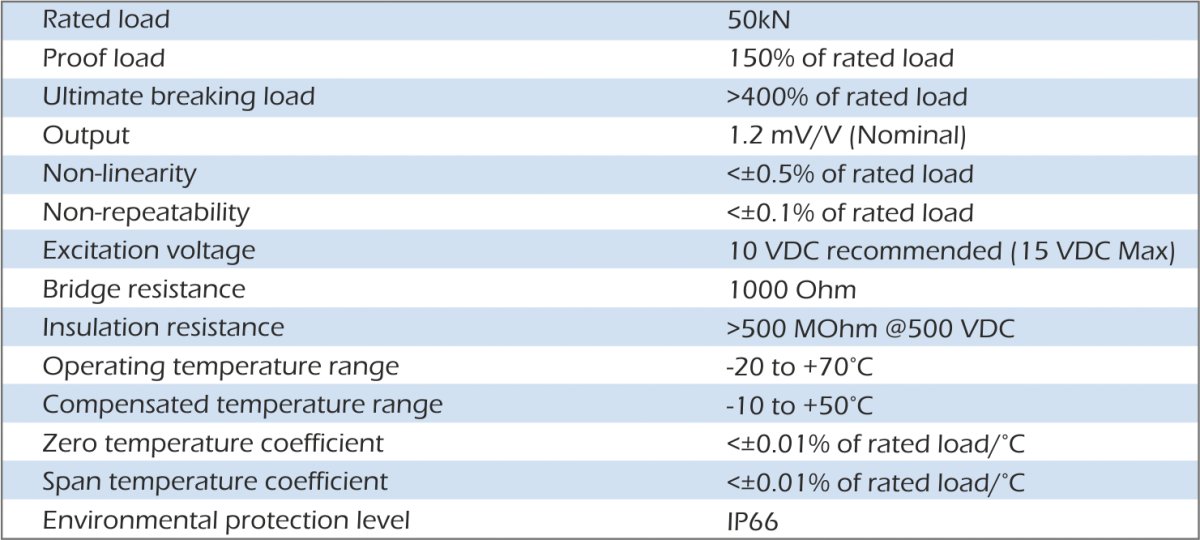

lcm4580 load link specification

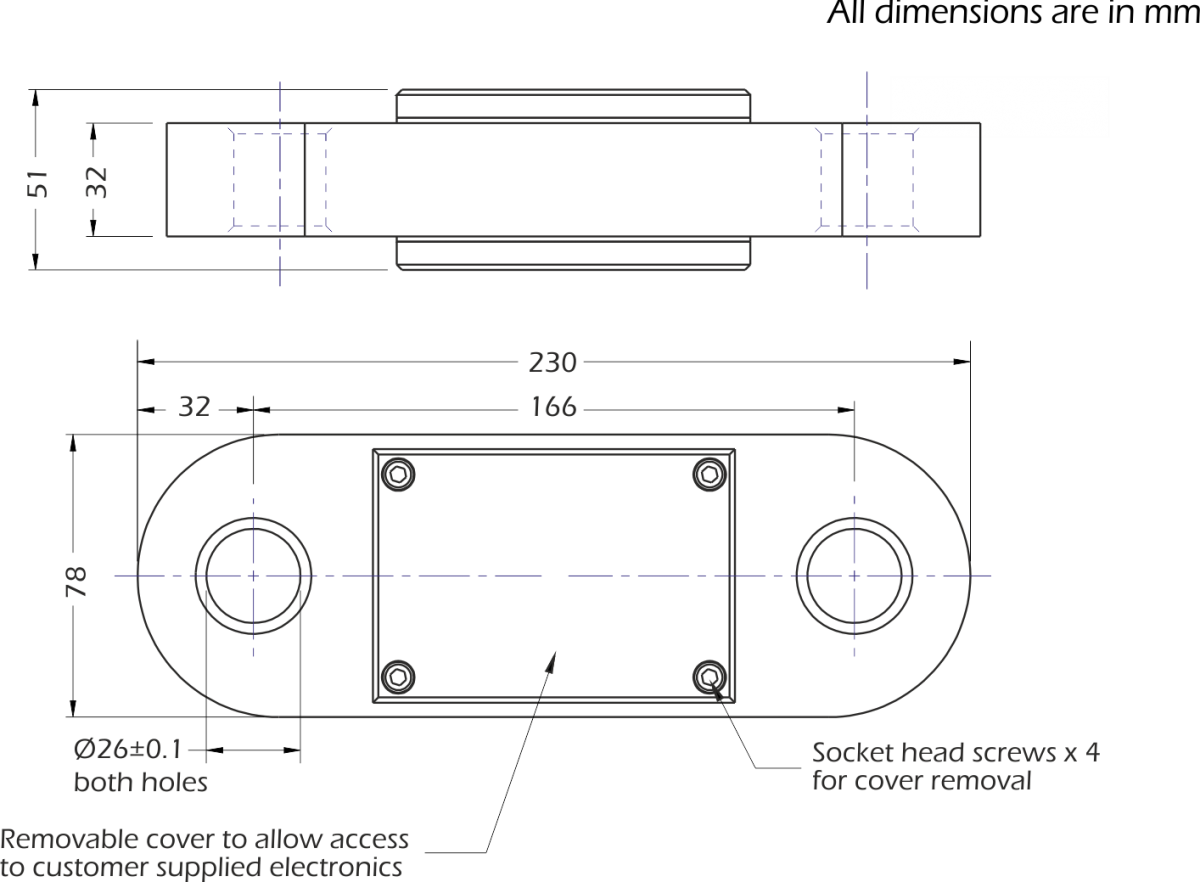

lcm4580 load link dimensions

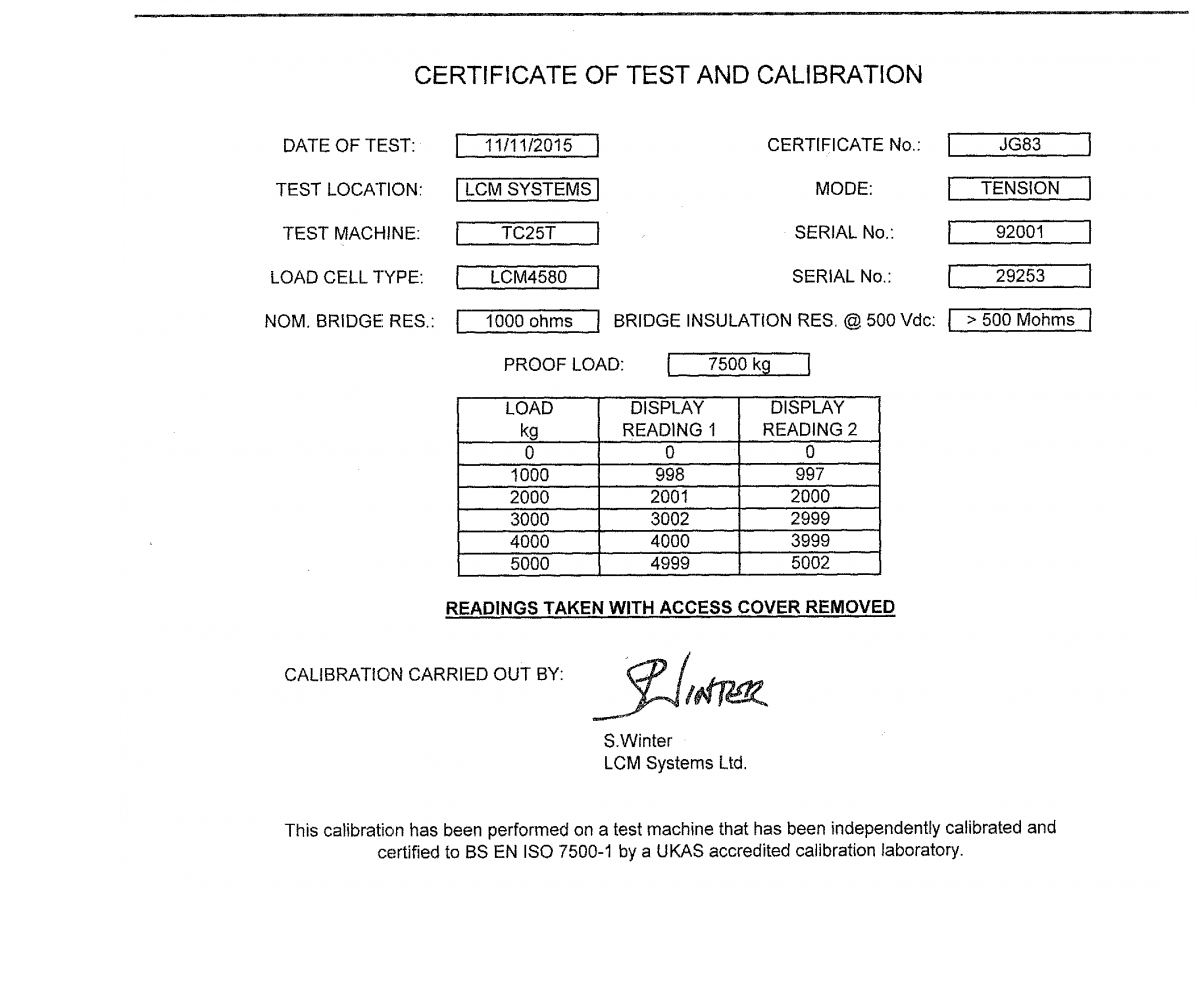

lcm4580 load link calibration data
