T24-RM1 Wireless Relay Output Module

The T24-RM1 is a wireless receiver with relay output offering dual power relays capable of mains power switching. Each relay can be configured as high, low or window alarms and can be associated with a group of up to eight T24 transmitters.

Relays can be latched and a digital input or external command can be used to reset them.
They can operate when the sum of the assigned transmitter modules reach a setpoint or when any of the modules reach the setpoint. There is also a mode where the difference between the lowest and highest value is compared to the setpoint.

An alarm/error signal relay is operated if communication is lost or other selectable errors occur and this alarm resets once the source of the alarm or error is removed.

The data sent by transmitter modules can be utilised by multiple receivers such as displays, handheld readers, analogue outputs, relay modules and computer interfaces. Receivers
support common industrial power supplies and are available in robust IP rated enclosures with internal antennas optimised to give outstanding coverage.

The T24 Toolkit offers a fast and simple way to configure the relays operation and set-point values which are entered in the engineering units of the associated transmitter modules.

The licence free 2.4GHz direct sequence spread spectrum (DSSS) radio technology offers high integrity, error free communications which can co-exist with other wireless technologies such as Wi-Fi, Bluetooth® and Zigbee®. FCC, ETSI and IC approvals.

This module is supplied as standard in an IP67 case, but a DIN rail option is available.

LCM Systems can supply the T-24 products integrated into various sensors, to form a wireless load cell system. There are several standard products which utilise the T24 range, including the TELSHACK, WLL and RILL ranges.

Please contact LCM's sales department to discuss your wireless load cell requirements.

  • Alarm signal
  • Environmentally sealed to IP67
  • Latched relays
  • Offers dual 240V AC 5Amp Relays
  • Relay output module
  • Sums up to 8 T24 acquisition modules
  • Up to 200m (650ft) wireless range
  • Worldwide licence exempt 2.4 GHz radio

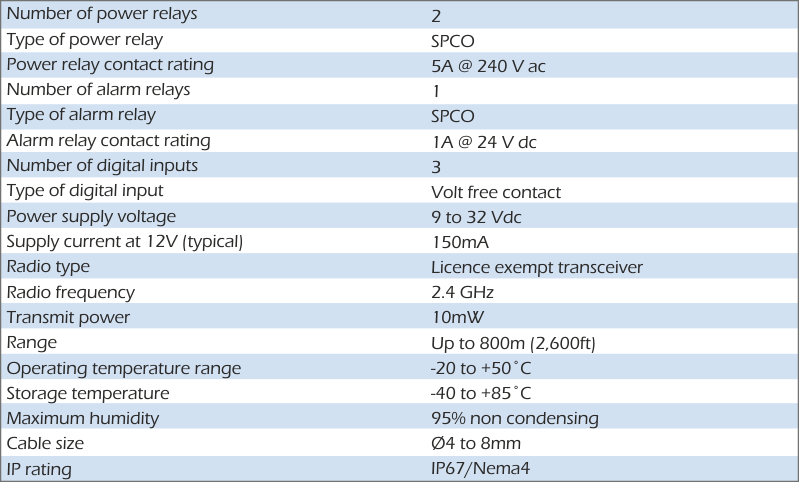

t24-rm1 specification

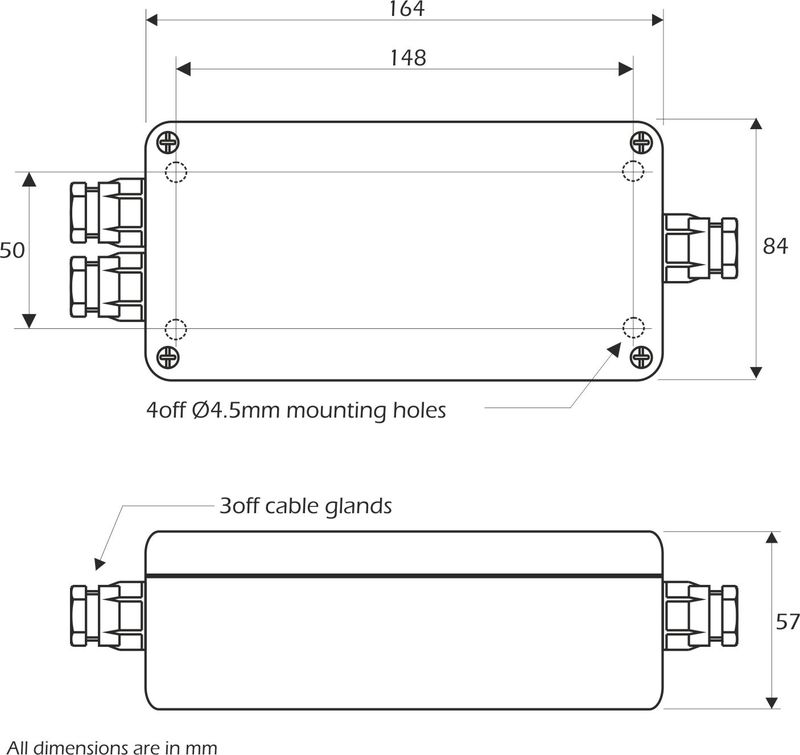

t24-rm1 dimensions

Can be used with our range of wireless load cells.

  • Wireless shackle load cells
  • Wireless link load cells
  • Platform Weighing
  • Vehicle Weighing
  • Rotating machine force measurement
  • Balancing Systems
  • Simple Centre of Gravity
