20te Dual Bridge Compression Load Cells

20te Dual Bridge Compression Load Cells
Share Share this page

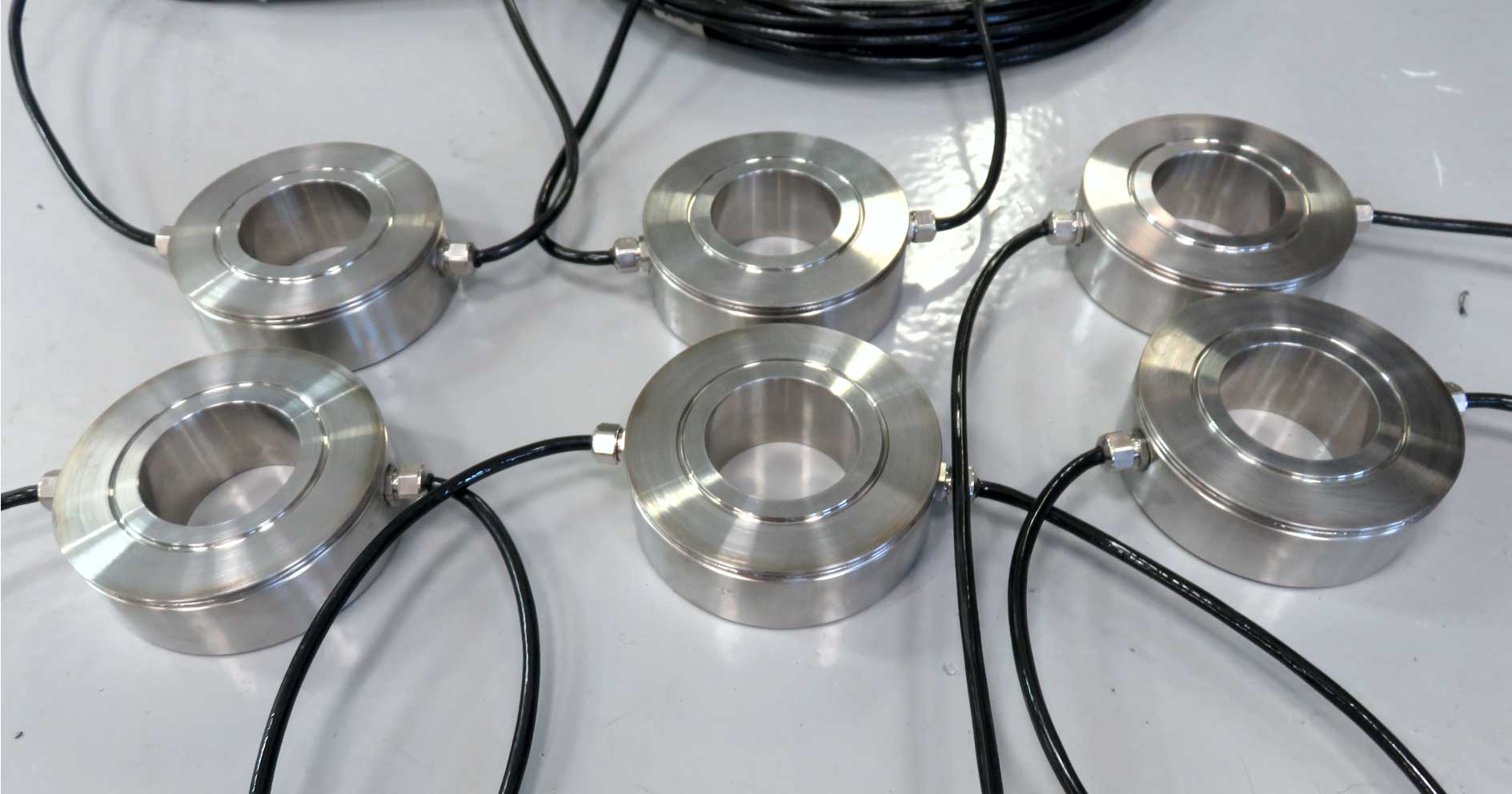

Recently delivered to a customer were these six custom design annular compression load cells with two independent bridges to provide dual redundancy. Each strain gauge bridge has its own cable exit, so that in the event of failure of one bridge, the second can be used to maintain system integrity. Manufactured from stainless steel, they have a diameter of 88mm x 30mm high and are environmentally sealed to IP67.
