25klbf Dual Bridge Load Pin

25klbf Dual Bridge Load Pins 📰

14th Apr 2023

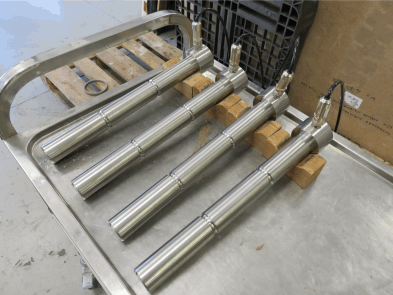

Load pins come in all shapes and sizes as they have to dimensionally replicate existing load bearing pins. We have recently manufactured these 25klbf (11.3 tonne) load pins for a company that manufactures bulk material handling systems. They wanted to measure the loads on a hydraulic cylinder in one of their products, so LCM Systems designed a load pin to suit. They have a diameter of 38mm and an overall length of 400m, with two load cell bridges to provide dual redundancy, each providing a 4-20mA output.

Whatever the application, we can provide a load measuring solution that meets specific requirements, so if you have an upcoming project that requires load monitoring, please make sure you contact our sales team at info@lcmsystems.com.
