CDIT-3 WMOUNT Weighing Assembly

The CDIT-3-WMOUNT is a complete weighing assembly for use with the CDIT-3 range of load cells. The weighing assembly facilitates easy mounting for the engineer on site and incorporates a number of key features that allows the best installed accuracy to be achieved. These include and anti-lift off mechanism, compensation for therm expansion and for off-axis loading.

Manufactured from stainless steel, the CDIT-3-WMOUNT is available in two sizes. The unit is equipped with self load alignment to mitigate against positioning errors and deformation of structures.

THIS ITEM CAN BE PURCHASED ONLINE. SEE CDIT-3 PAGE FOR FURTHER DETAILS

  • Aids installation
  • Available in two sizes
  • Ensures best accuracy is achieved
  • From 250kg to 30te
  • Incorporates a safety retainer to prevent accidental vessel lifting or sliding
  • Stainless steel construction
  • Suitable for use with the CDIT-3 load cell series

Not applicable to this product.

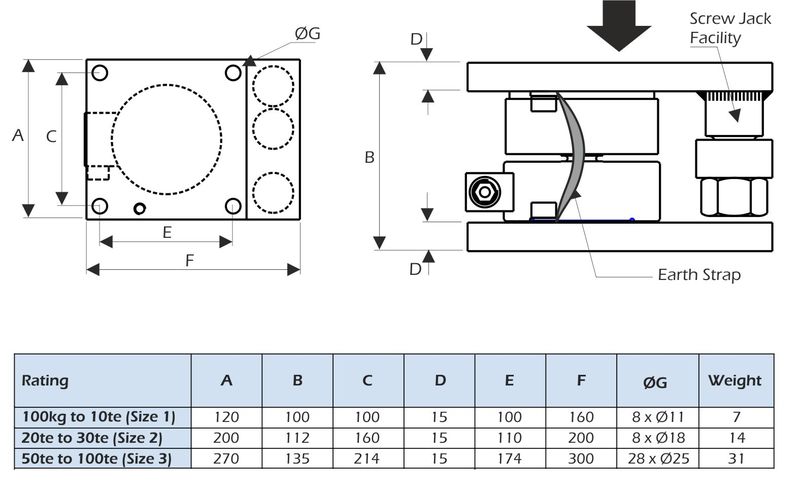

cdit-3-wmount dimensions 0

None for this product.

  • Vessel Weighing
  • Silo Weighing
  • Process Weighing and Control
  • Tank Weighing

Request a quote for CDIT-3 WMOUNT Weighing Assembly
