DIS-323AL/DIS-323SS ATEX/IECEx Display

The DIS-323AL and DIS-323SS are flameproof field mounting loop powered indicators that only introduce a 2.3V drop, making them suitable for inclusion in almost any 4-20mA loop. The two instruments are electrically identical but have different enclosure materials. The DIS-323AL is housed in an epoxy painted aluminium enclosure and the DIS-323SS in a 316 stainless steel enclosure. Both provide IP66 and NEMA Type 4X protection.

Configuration and calibration of the indicators is performed via simple Windows compatible software running on a PC connected to the instrument via a temporary communications cable. The view button on the front of the indicator adjacent to the terminals provides a rapid check of loop function and instrument calibration with no risk of the calibration being accidentally changed.

Both instruments are suitable for use in zone 1 and 2 hazardous areas, and units of measurement can be displayed in up to five digits, entered via the configuration software.


atex statement exd

  • +/-99999 display, 10mm high
  • Available in stainless steel or aluminium
  • Configurable via free Windows compatible software
  • Display for use in hazardous areas
  • IP66 sealed
  • Loop powered
  • Programmable units of measurement
  • Root extractor and lineariser

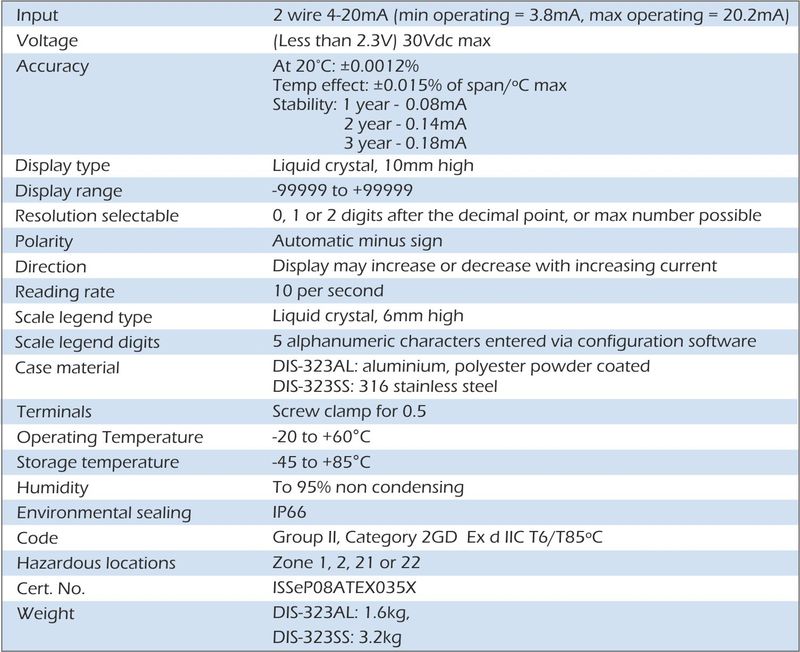

dis-323al atex display specification

atex statement exd

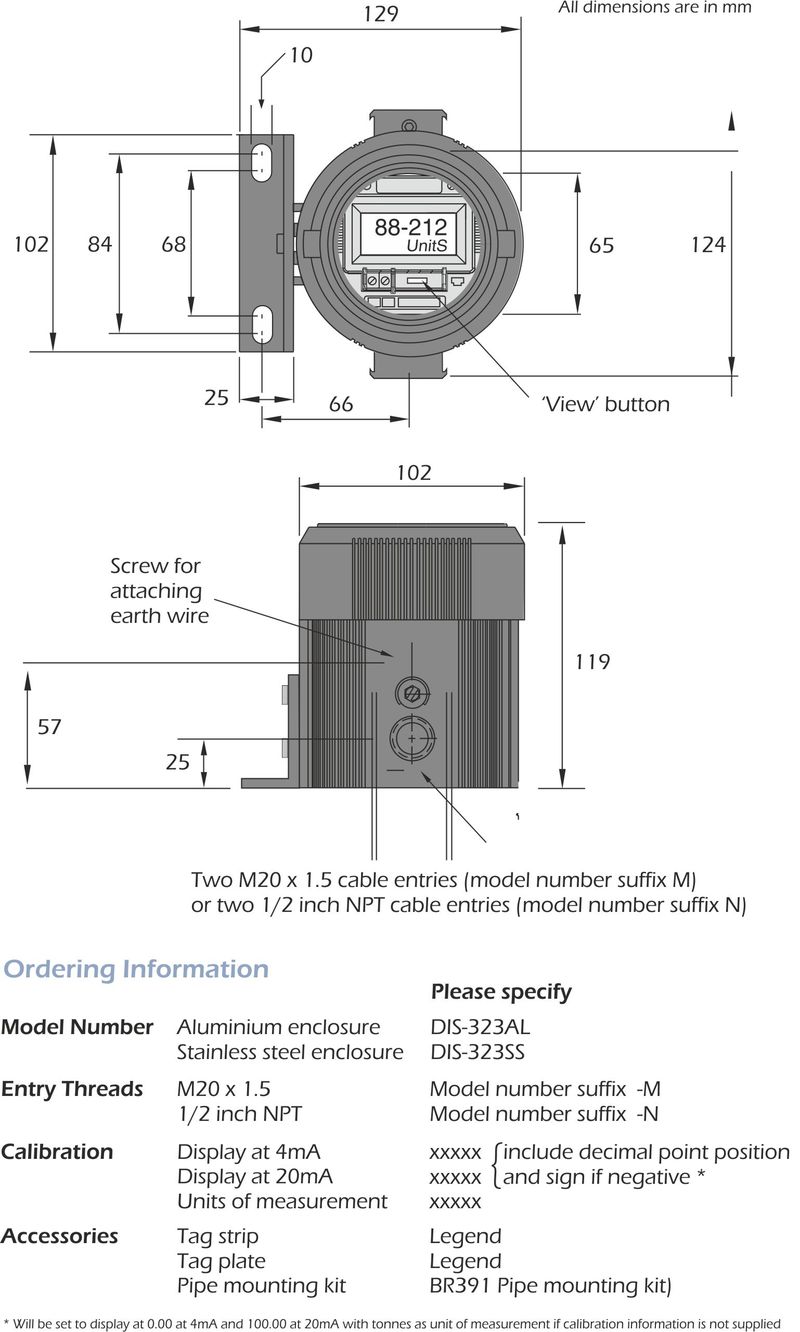

dis-323al atex display dimensions

  • Tag strip (thermally printed label)
  • Tag plate (etched tie-on stainless steel lablel)
  • Pipe mounting kit (stainless steel 'U' bolt to fit up to 50mm outside diameter pipe)
  • Vessel weighing
  • Winch monitoring
  • Crane weighing
  • Module weighing

Request a quote for DIS-323AL/DIS-323SS ATEX/IECEx Display
