50 Tonne Wireless Compression Load Cells

24th Sep 2021

These 50 tonne wireless compression load cells, ordered by one of our UK customers, are from our standard CPW range. Available in load ratings from 50 tonnes up to 1000 tonnes, the CPW is a compact and versatile stainless steel load cell with environmental sealing to IP67, making them suitable for use in outdoor installations. The unique wireless housing allows speedy access to the batteries without the need for any tools via two retaining clips, and offers a wireless transmission range of up to 800 metres when there is a clear line of sight. The load cells have been supplied with a T24-HA handheld display which allows viewing of the load on each individual load cell, as well as the total load on all four. A T24-BSD base station has also been included to facilitate data transfer direct to a PC. All the load cells and accompanying instrumentation have been packed in a moulded polyurethane case to protect them during transit and to provide a portable load measuring solution.

This is just one solution that is available from our ever expanding range of wireless load cell products and wireless instrumentation.

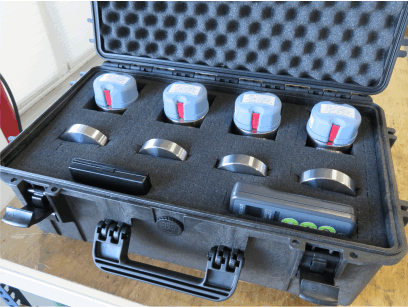

CPW Load Cells in Transit Case
