AWLL Aluminium Wireless Load Link

The LCM AWLL load link series have been designed for lifting and weighing in harsh environments. Being manufactured from aluminium alloy to minimise weight also makes them ideal for mobile use, and steel brushed holes provide added wear protection from the industry standard shackles they have been designed for use with. They are ideal for proof testing structures, monitoring loads on hoists and rigging, line tension/bollard testing and weighing suspended loads on cranes.

The wireless antenna is internally mounted, protecting it from accidental damage during use and handling. The AWLL range also uses standard AAA alkaline batteries, which are readily available and low cost. They are Simple to install and have a high safety factor (5:1) to provide safe and accurate measurements during critical lifting operations.

The AWLL is supplied as standard without any additional wireless devices to enable greater flexibility with the configuration and ordering of the product. The AWLL can be used with any of the T24 range of wireless instrumentation, whether this be for a simple display system using the T24-HS-LS, or more complex systems using multiple load cells and multiple wireless devices.

For more sophisticated systems, including datalogging or monitoring/reporting requirements, we are able to offer a robust tablet PC with installed software for use with single or multiple load cell installations. Our sales team will be happy to discuss the best wireless system configuration to suit your requirements.

  • Ranges from 5 to 300 tonnes
  • Lightweight aluminium construction
  • High accuracy
  • Supplied with carry case
  •  License Free 2.4GHz radio
  • Internal antennae
  • 300 hours battery life using standard AAA batteries
  • Can be supplied with various bespoke telemetry and/or software packages

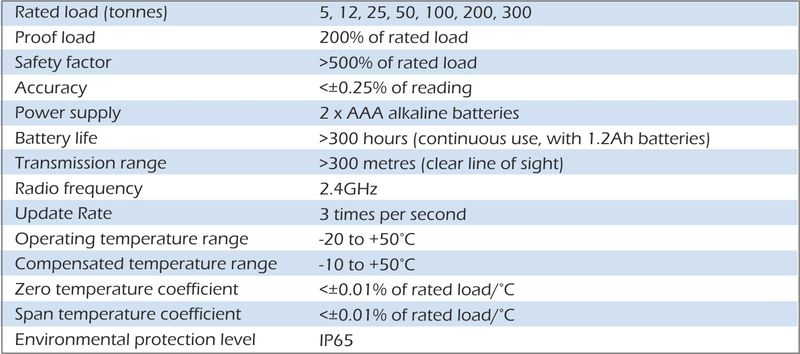

AWLL Aluminium Wireless Load Link specifications

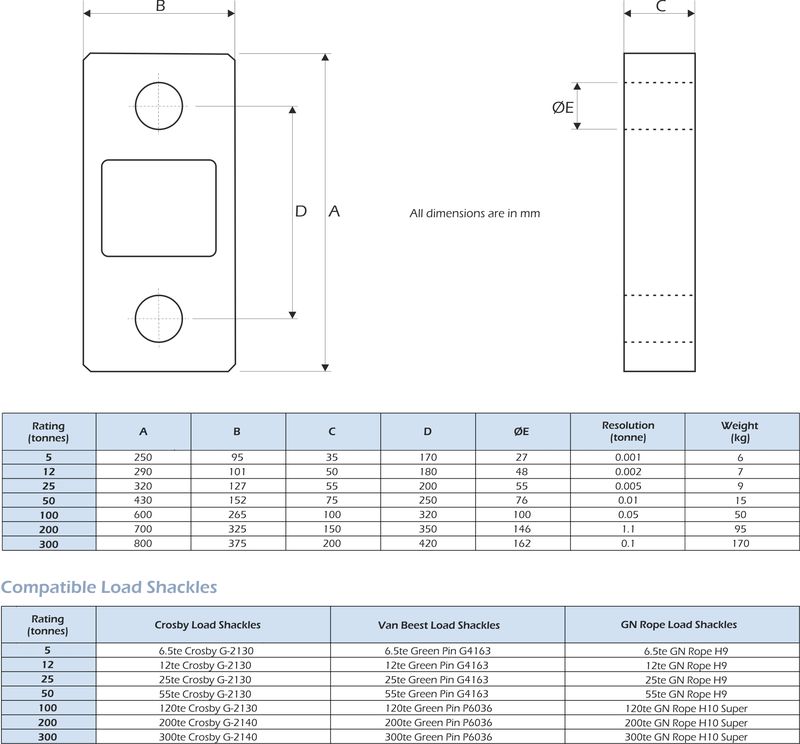

AWLL Aluminium Wireless Load Link dimensions

  • Wireless overload alarm module
  • Wireless base station with analogue output
  • Wireless signal booster
  • Multiple wireless load cell controller software
  • Wireless slave display
  • Crosby shackle supply
  • Underhook Crane Weighing
  • Cable tension monitoring
  • Crane/Hoist Proof Loading
  • Water Weights filling
  • Warehouse despatch weighing

Request a quote for AWLL Aluminium Wireless Load Link

DescriptionPrice Wireless DisplayStockQty
5 tonne AWLL (no display included)£1744.00 0 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 0 pieces or less, we will despatch within 2 working days.

For orders of more than 0 pieces we will generally despatch within 10 working days.
12 tonne AWLL (no display included)£1878.00 1 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 1 pieces or less, we will despatch within 2 working days.

For orders of more than 1 pieces we will generally despatch within 10 working days.
25 tonne AWLL (no display included)£2073.00 2 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 2 pieces or less, we will despatch within 2 working days.

For orders of more than 2 pieces we will generally despatch within 10 working days.
50 tonne AWLL (no display included)£2841.00 1 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 1 pieces or less, we will despatch within 2 working days.

For orders of more than 1 pieces we will generally despatch within 10 working days.
100 tonne AWLL (no display included)£5032.00 0 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 0 pieces or less, we will despatch within 2 working days.

For orders of more than 0 pieces we will generally despatch within 30 - 40 working days.
200 tonne AWLL (no display included)£10669.00 0 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 0 pieces or less, we will despatch within 2 working days.

For orders of more than 0 pieces we will generally despatch within 30 - 40 working days.
300 tonne AWLL (no display included)£14585.00 0 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 0 pieces or less, we will despatch within 2 working days.

For orders of more than 0 pieces we will generally despatch within 30 - 40 working days.
