BBL-1 Stainless Steel Beam Load Cell

The BBL-1 series of beam load cells are available in a wide range of capacities from 10kg through to 500kg. They are manufactured entirely from stainless steel and have a fully welded construction, providing a high level of environmental and hermetic sealing to IP68. The design makes them ideal for use in harsh weighing environments where wash down of the application is required.

The BBL-1 can be supplied complete with a vessel/tank weighing assembly, which is designed to make installation easier and to provide a means of realising the best accuracy from the product when installed, by eliminating the effects for vessel/tank thermal expansion. More details on the assembly are available on a separate datasheet (BBL-1-WMOUNT).

We offer a wide range of additional instrumentation products to further enhance the product within a complete system. For vessel weighing applications, there are several displays and signal conditioners that can be offered to provide a complete weighing solution.

  • Can be supplied with vessel mounting assembly or shock mounts
  • Environmentally sealed to IP68
  • From 10kgs to 500kgs
  • Fully welded stainless steel
  • High accuracy

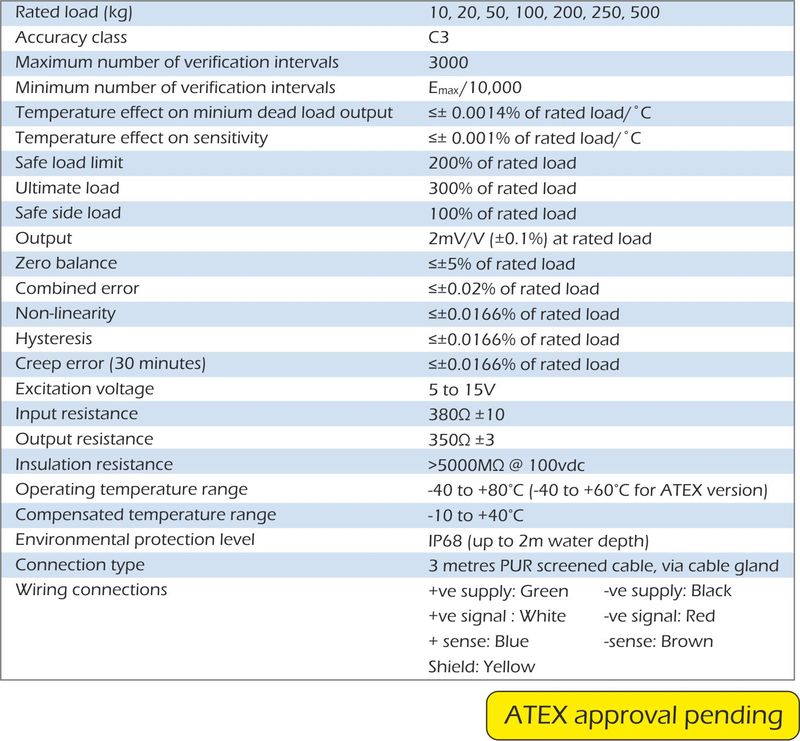

bbl-1 beam load cell specification

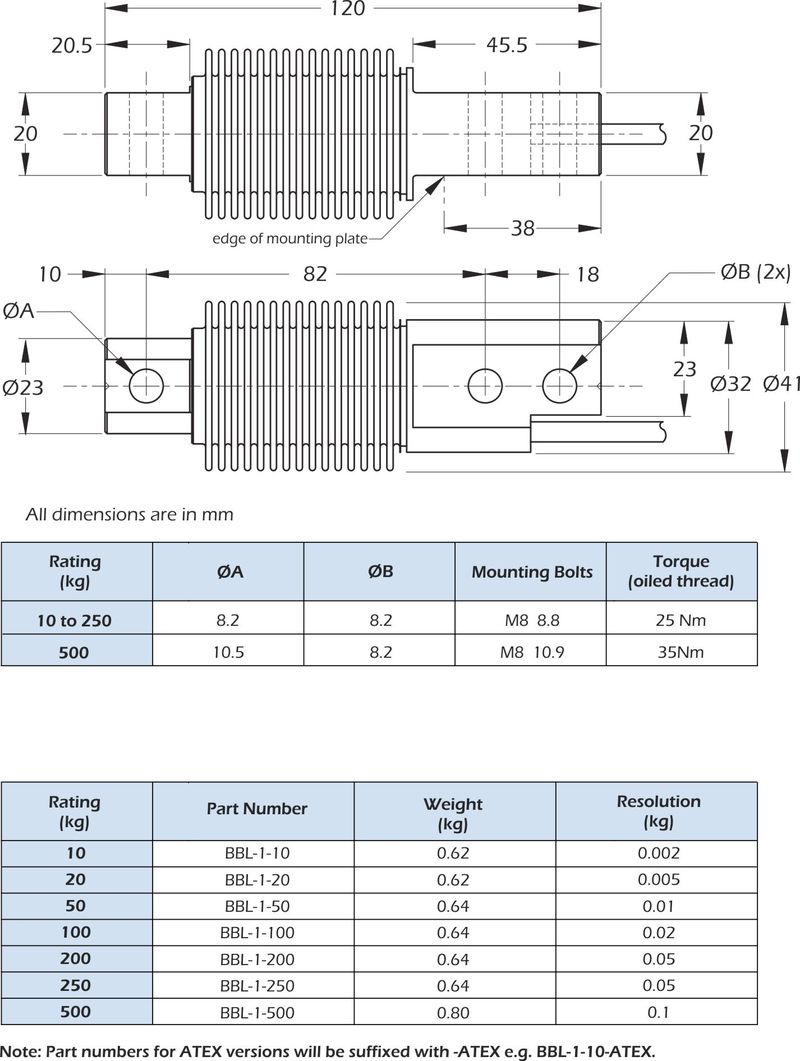

bbl-1 beam load cell dimensions

  • Vessel Weighing
  • Hanging Scales
  • Conveyor Weighing
  • Tensile Test Machines
  • Small hopper/tank weighing
  • Bagging machinery

Request a quote for BBL-1 Stainless Steel Beam Load Cell
