JPP-JB Termination Junction Box

The JPP-JB series of termination junction boxes offer a solution to connect either 4, 6 or 8 load cells in parallel to a suitable display or amplifier. There are no adjustment facilities with this product, and it is only usually recommended for use with load cells with matched or rationalised outputs. It acts as an installation aid in a variety of weighing applications.

LCM Systems can provide the JPP-JB on its own or complete with matched/rationalised load cells and complimentary instrumentation to offer a complete package. Please contact our technical department for any advice required on suitable solutions.

  • 4, 6 or 8 way versions
  • Connect up to 8 load cells
  • Field screw terminals
  • Junction termination box
  • Robust IP66 enclosure
  • Wide range of cable sizes suitable

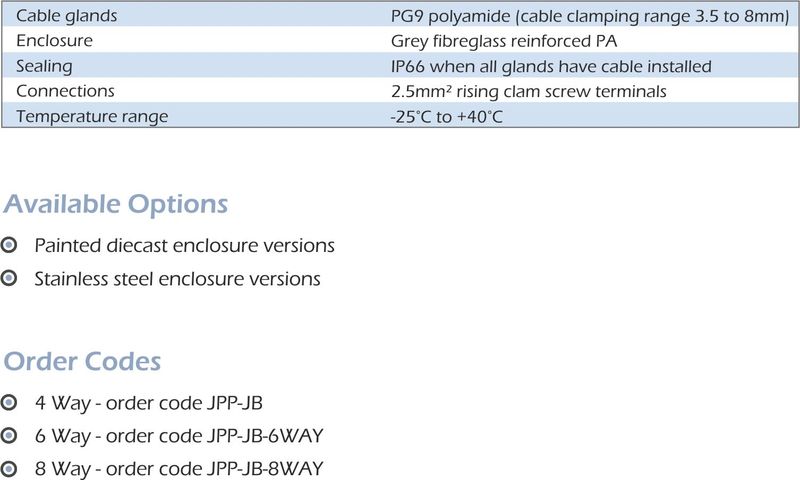

jpp-jb junction box specification

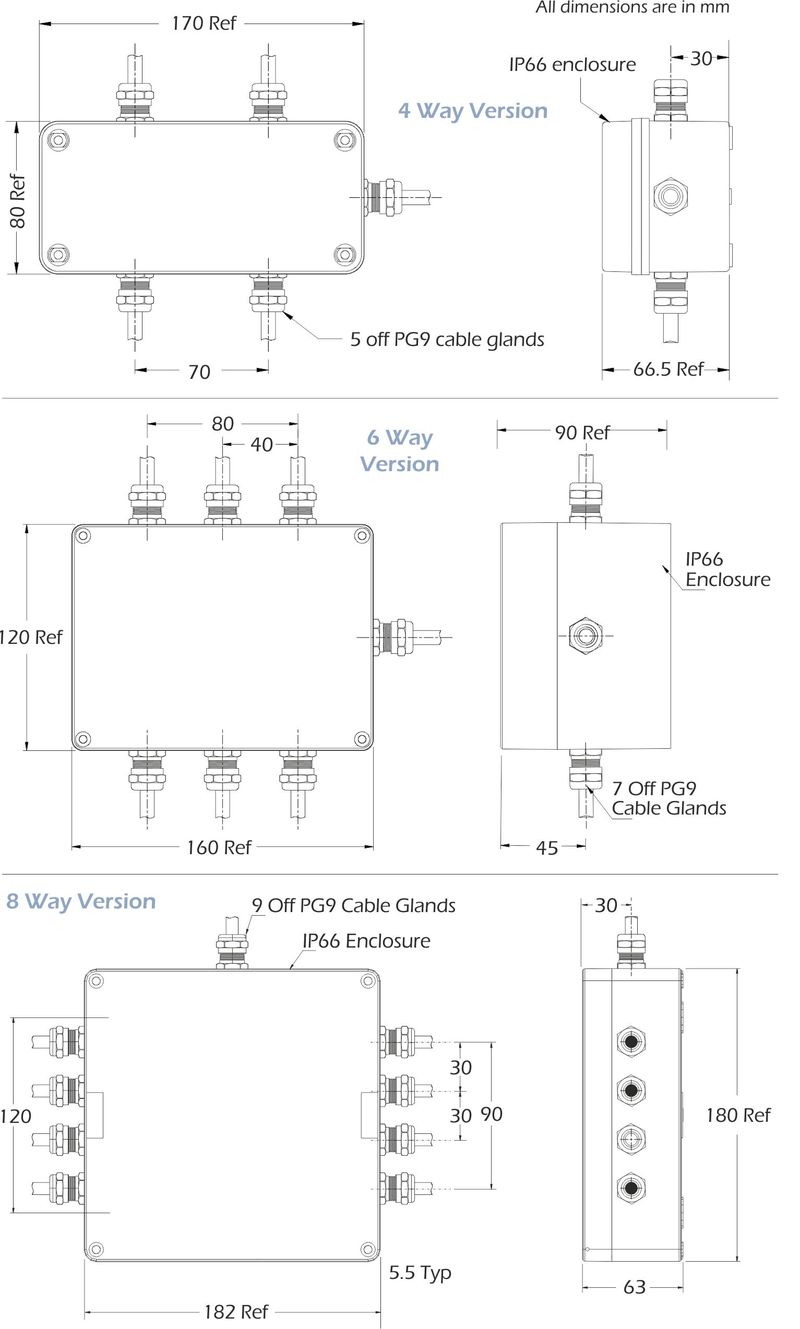

jpp-jb junction box dimensions

  • Painted diecast enclosure versions
  • Stainless steel enclosure versions
  • Vessel weighing
  • Silo weighing
  • Process weighing
