BP16UVW Voltage Output Pressure Transmitter

The LCM Systems range of pressure transmitters have been widely used for many years. The BP16UVW pressure transmitters combine the excellent performance of bonded foil strain gauge technology with a single piece stainless steel diaphragm construction and provide an excellent price/performance ratio. They are suitable for use in many arduous measurement applications, with integral signal conditioning, providing an amplified voltage output.

The BP16UVW pressure transmitter construction makes it ideal for a wide range of applications, including hydraulic lifting, mobile hydraulic vehicles, portable test gear and air frame test rigs amongst others. The most popular version of the BP16UVW pressure transmitter is the integral cable version, which is supplied with a 2 metre PVC cable length. An integral connector version is also available, as are versions with different cable lengths or different cable types.

The BP16 family of products offers a variety of output formats (please refer to the BP16 and BP16EF datasheets). LCM Systems can supply the BP16UVW pressure transmitter on its own or integrated with any of the wide range of instrumentation available from LCM Systems

  • 100psig to 15,000psig
  • 3-wire 0-5V or 0-10V or 4-wire ±10V Output
  • Amplified current output version available (refer to BP16EF datasheet)
  • Environmentally sealed to IP66
  • mV/V Wheatstone Bridge version available (refer to BP16 datasheet)
  • Stainless steel diaphragm
  • Supplied with 2 metre PVC cable (versions available with integral connector or modified cable lengths/type)
  • Voltage output
  • ¼" BSPP female pressure port (supplied as standard with bonded seal and ¼" male pressure port adaptor)

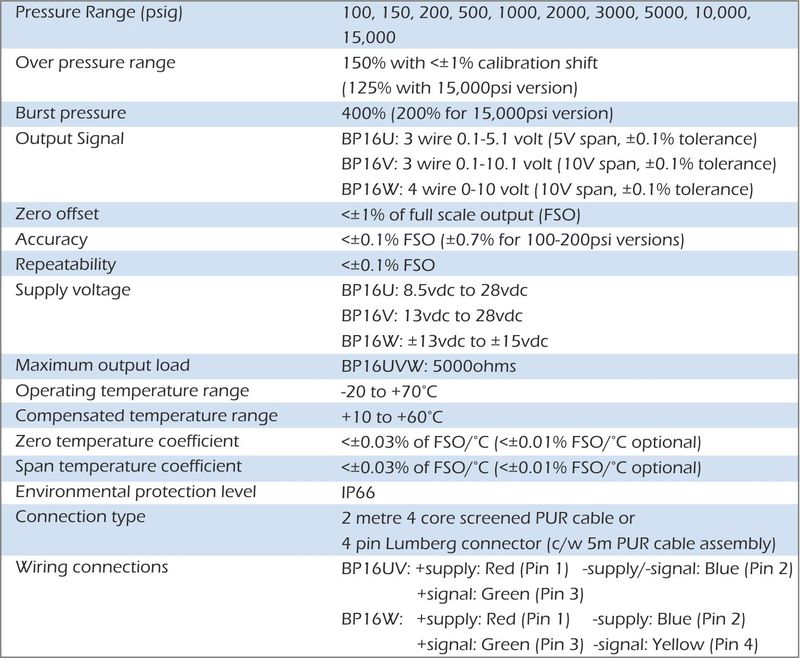

bp16uvw pressure transducer specification

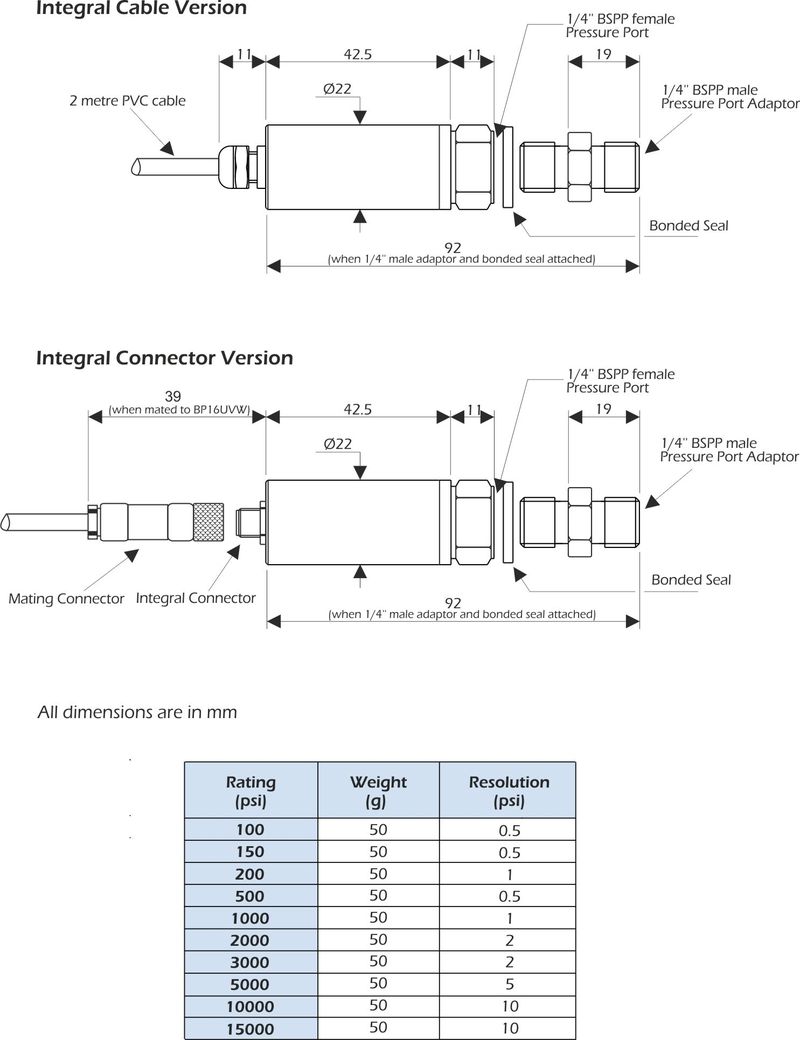

bp16uvw pressure transducer dimensions

  • Integral connector option
  • Modified cable length/type options
  • TEDS option (when used with TR150 handheld display)
  • Other special versions available
  • On-board vehicle weighing
  • Earthmoving  vehicle hydraulic system protection/weighing
  • Portable hydraulic test sets
  • Air frame test rigs
  • Hydraulic system feedback control
