PMD-STRAIN Load Cell and Strain Gauge Input Panel Mounting Display

The PMD-STRAIN is a panel mounting display for use with strain gauge bridge based sensors,; including load cells, load pins etc.
This series of display offers very simple operation and configuration.

The PMD-STRAIN does not use a menu system to configure and calibrate the display, making installation and commissioning very straightforward.

To simplify commissioning even further, the product instruction manual provides step by step pictorial details for each function that you may want to configure, saving time searching through an overly complex manual trying to find that one parameter that you wish to change.

Options valuable for the PMD-STRAIN include:-

Power supply options available include 95-265vac, 11-30vdc and 48vac.
Output options available include 4-20mA, 0-10v, ±10v, 2 relay alarms, 4 relay alarms, RS232 or RS485.

The main application for the PMD-STRAIN is for simple crane weighing applications, hoist and winch monitoring, as well as many other force measurement applications.

Different input signals are available including Serial input (see PMD-SERIAL), process input (see PMD-PROCESS).

LCM Systems engineers will be pleased to discuss your specific application requirements with you. They will be able to advise on the correct product selection, options required and advise on suitable sensors, where required.

  • 14.2mm high red LED display
  • AC or DC powered versions
  • All option boards are pluggable and can be retro-fitted
  • IP65 sealed (option for IP67 sealing)
  • Load cell input
  • Menu free setup and calibration
  • Panel mounted
  • Wide selection of outputs

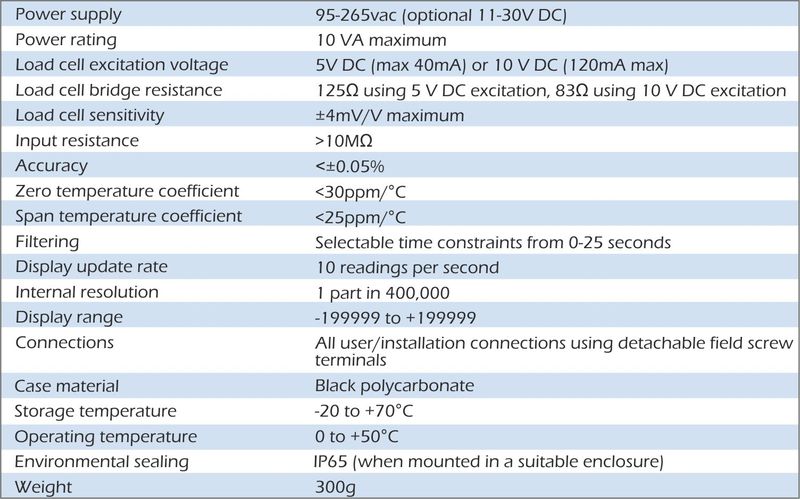

pmd-strain specifications

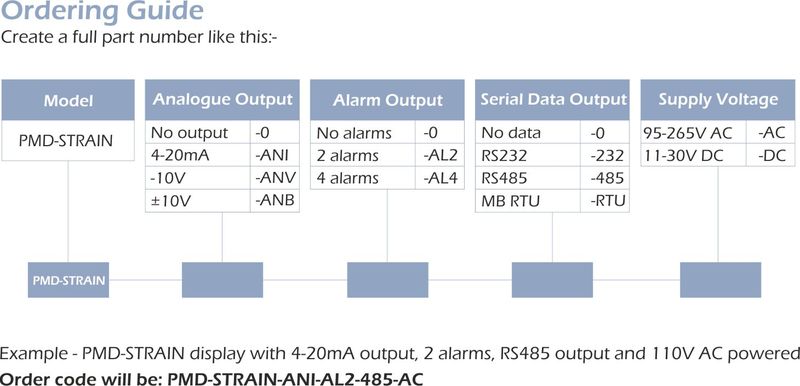

PMD-STRAIN Load Cell Strain Gauge Input Panel Mounting Display specifications 2

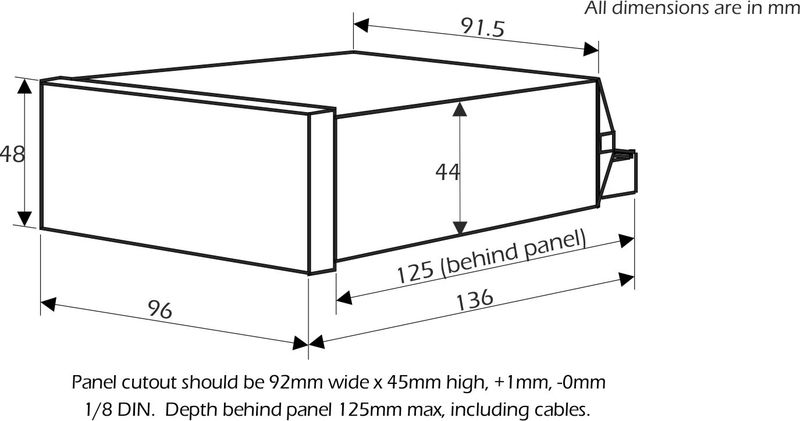

pmd-strain dimensions

  • Cover (part number SPC4 for increase sealing to IP67)
  • Power supply options: 95-265vac and 11-30vdc
  • Output options: 4-20mA, 0-10V, +/- 10V, 2 relay alarms, 4 relay alarms, RS232, RS485 or Modbus RTU ASCII
  • Vessel weighing
  • Winch monitoring
  • Crane weighing
  • Module weighing
  • General force measurement

Request a quote for PMD-STRAIN Load Cell and Strain Gauge Input Panel Mounting Display

DescriptionPrice Analogue OutputsSerial Data OutputsAlarm OutputsQty
PMD-STRAIN Display - Base Model 95-265Vac Powered£449.00
PMD-STRAIN Display - Base Model 11-30Vdc Powered£479.00
