LD-STRAIN Load Cell and Strain Gauge Input Large Digit Display
The LD-STRAIN is a large digit display for use with strain gauge bridge based sensors,; including load cells, load pins etc. Various options are available including, 4 or 6 digit versions, different height digits allowing viewing from up to 200 metres, DC or AC powering and different mounting options.

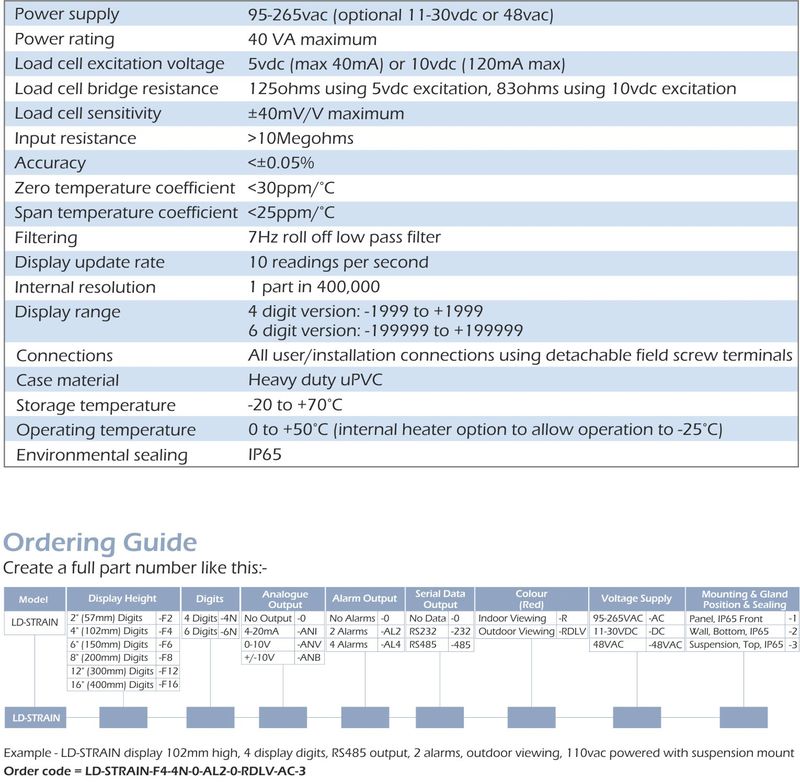

The digit heights that are available include 57mm (25m viewing distance), 102mm (50m viewing distance), 150mm (75m viewing distance), 200mm (100m viewing distance), 300mm (140m viewing distance) and 400mm (200m viewing distance). Mounting options available include panel mounting, suspension mounting and Wall Mounting. Power supply options available include 95-265vac, 11-30vdc and 48vac. Output options available include 4-20mA, 0-10v, +-10v, 2 relay alarms, 4 relay alarms, RS232 or RS485.
The main application for the LD-STRAIN is for simple crane weighing applications, hoist and winch monitoring etc. The various output options available allow for the re-transmission of the display signal or for process control.
Different input signals are available including Serial input (see LD-SERIAL), process input (see LD-PROCESS) or wireless version (see LD-WIRELESS). LCM Systems engineers will be pleased to discuss your specific application requirements with you. They will be able to advise on the correct product selection, options required and advise on suitable sensors, where required.
- AC or DC powered
- Digit height up to 16" (40.5cm)
- IP65 sealed
- Load cell input

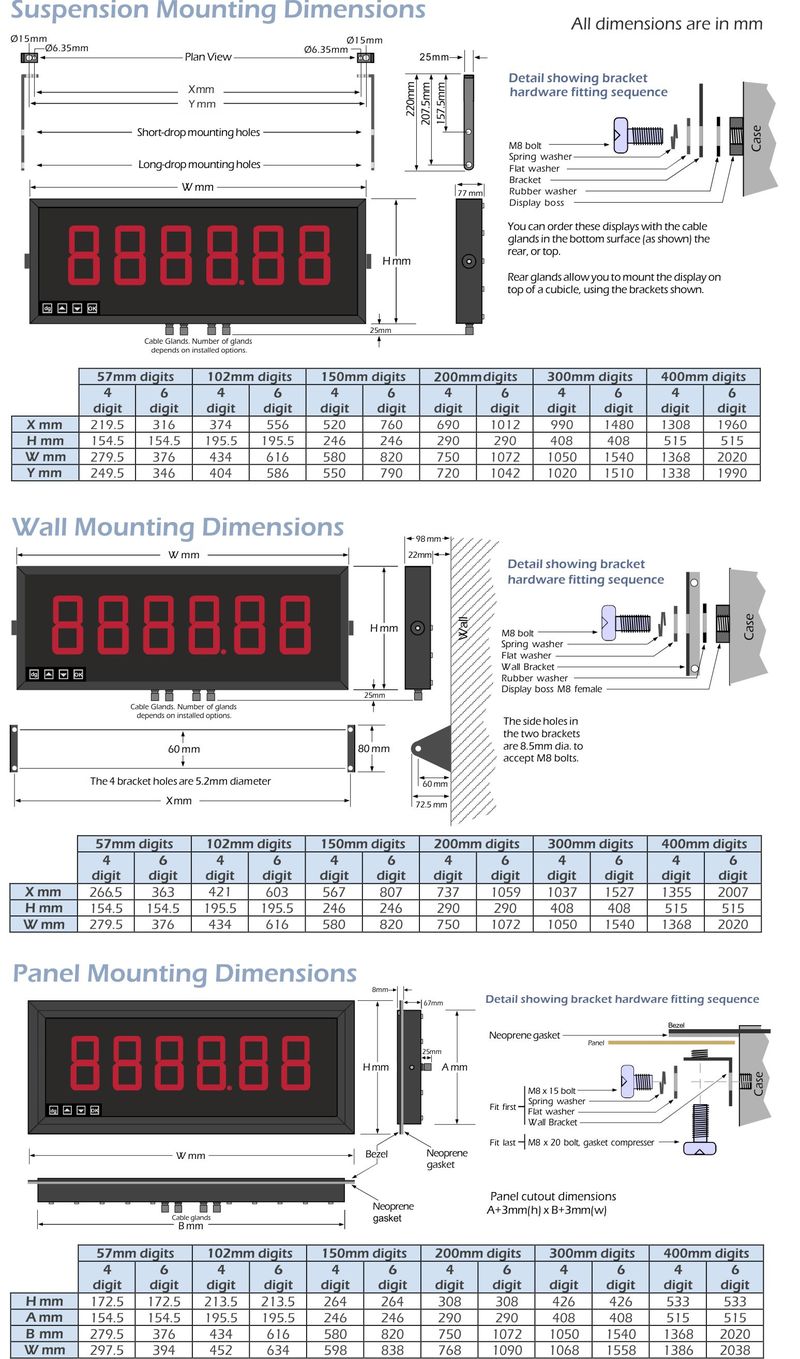

- Suspension, panel or wall mounting options
- Viewing distances from 25, 50, 75, 100, 140 or 200 metres
- Wide choice of analogue, relay or digital outputs
- Vessel weighing
- Winch monitoring
- Crane weighing
- Module weighing
