CPA Stainless Steel Compression Load Cell

The LCM series of Compression Load Cells are designed for general use and are suitable for use in laboratories or in permanent outdoor installations. They are built to exacting standards and are suitable for use in exposed installations, with versions being available for full immersion in water.

There are many special options which have been previously supplied, including, domed top (supplied with or without loading cap), integral carry handles, mounting base integral connectors, and internal analogue/digital signal amplifiers. The standard product is constructed from stainless steel.

The CPA series can be supplied as shown in this datasheet or can be modified to meet a particular application requirement. We are always pleased to discuss any special requirements that can be accommodated. It an also be supplied on its own or combined with our extensive range of instrumentation to provide a complete load monitoring system.

atex statement exd and exi

  • Can be supplied with amplifier output
  • Can be supplied with domed top and spherical loading cap
  • Can be supplied with integral connector
  • Environmentally sealed to IP67
  • Many special design versions available
  • Ratings from 2 tonnes to 1000 tonnes
  • Stainless steel construction
  • Versions available for use as calibration standards

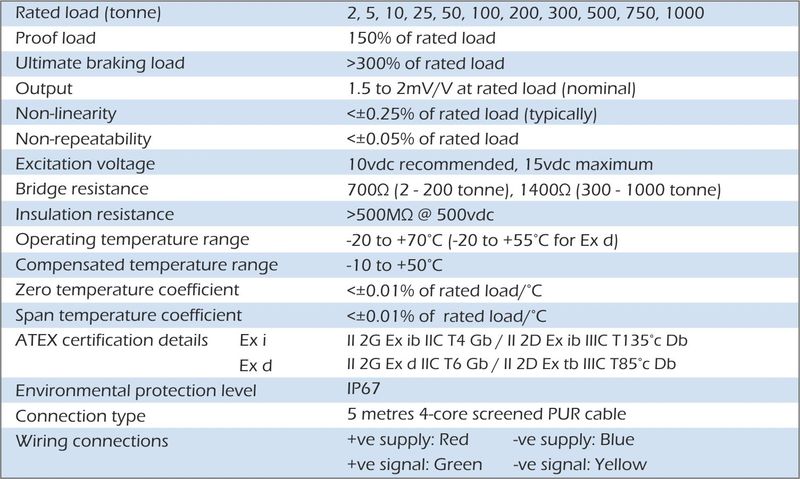

cpa load cell specification

atex statement exd and exi

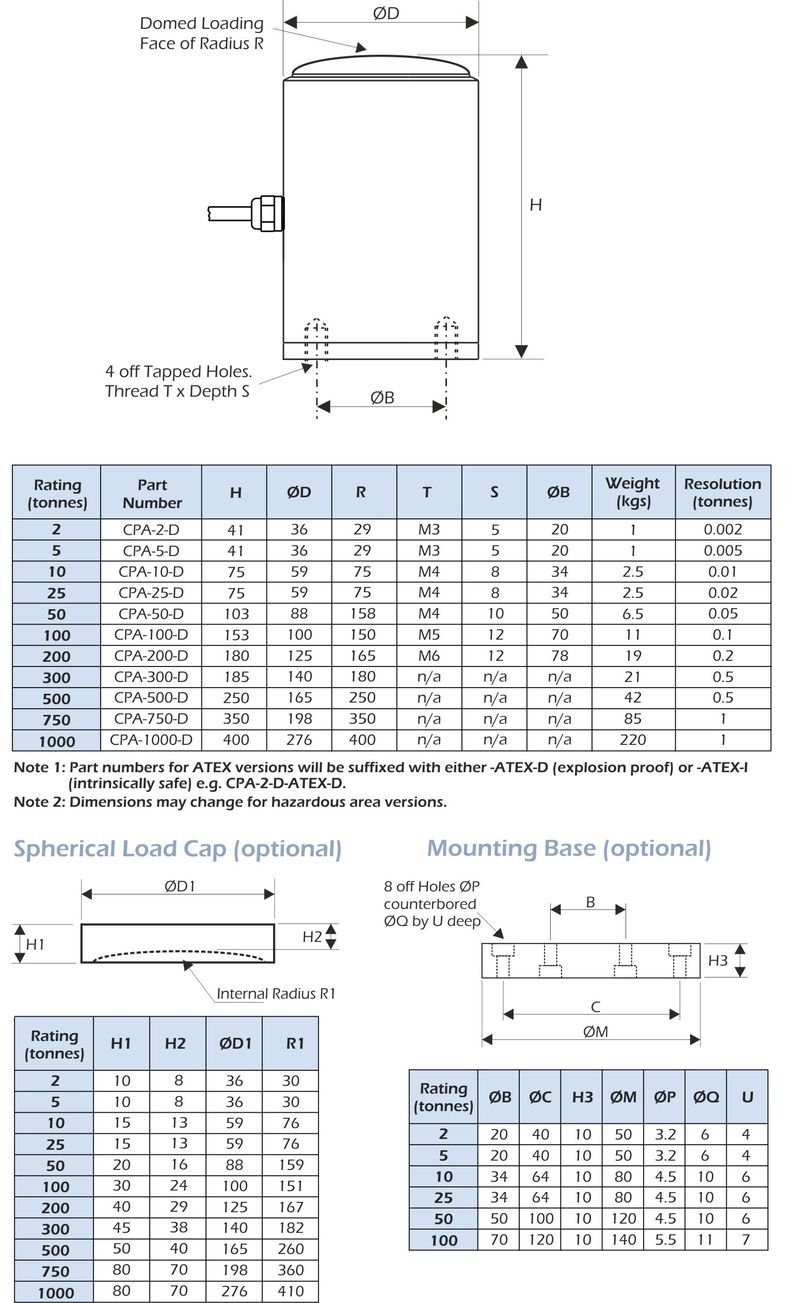

cpa load cell dimensions

  • Optional Mounting Base
  • Optional Domed Top (Flat top version is the standard product)
  • Optional Spherical Load Cap, for use with domed top version
  • Integral Amplifier, providing direct voltage or current output, using ICA range of products - Click here to view ICA details
  • Integral Amplifier, providing direct RS485 digital communications using DCELL range of products - Click here to view DCELL details
  • Special sizes and ratings available
  • Special electrical connections
  • Submersible versions available
  • Verification Standard versions available
  • TEDS option (when used with TR150 handheld display)
  • Hydraulic Press Calibration
  • Pile Force Measurement
  • Structural Proof Testing
  • Centre of Gravity (module) Weighing
  • Jack Force Measurement
