LPB Custom Design Load Pins

The LCM Systems range of load measuring pins are designed for general use. They are a simple and versatile type of load cell that are used in a large variety of applications, including harsh environments such as subsea, marine and offshore. They are easily installed into machines by replacing any existing load bearing pin with no modifications to the equipment required. They are also very easy to install new or retrofit, and have a long design life to offer any years of trouble-free operation.

The LPB load pin range is entirely custom designed to meet specific customer requirements, and over 5000 different product variants have been manufactured to date. Machined from high tensile stainless steel, they are built to exacting standards and proof loaded to 150% of normal rated load. We also offer a standard load pin range that covers ratings between 500kgs and 1500kgs (see LMP load pin).

The LPB load pin series can be supplied on its own or combined with our extensive range of instrumentation to provide a complete load monitoring system.

If you would like a quotation for an LPB load pin, please complete our load pin questionnaire by clicking here.


atex statement exd and exi

  • Ranges:  100kg to 1500+ tonnes
  • Dimensions to suit specific individual requirements
  • Stainless steel construction
  • Choice of environmental sealings
  • Many special design options available
  • Versions available to meet offshore, subsea and marine specifications
  • Design support software available

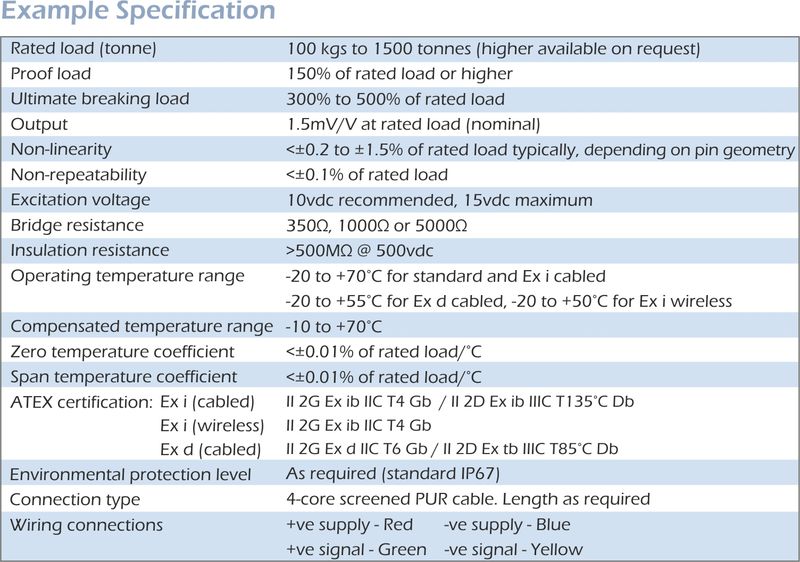

lpb load pin specification

atex statement exd and exi

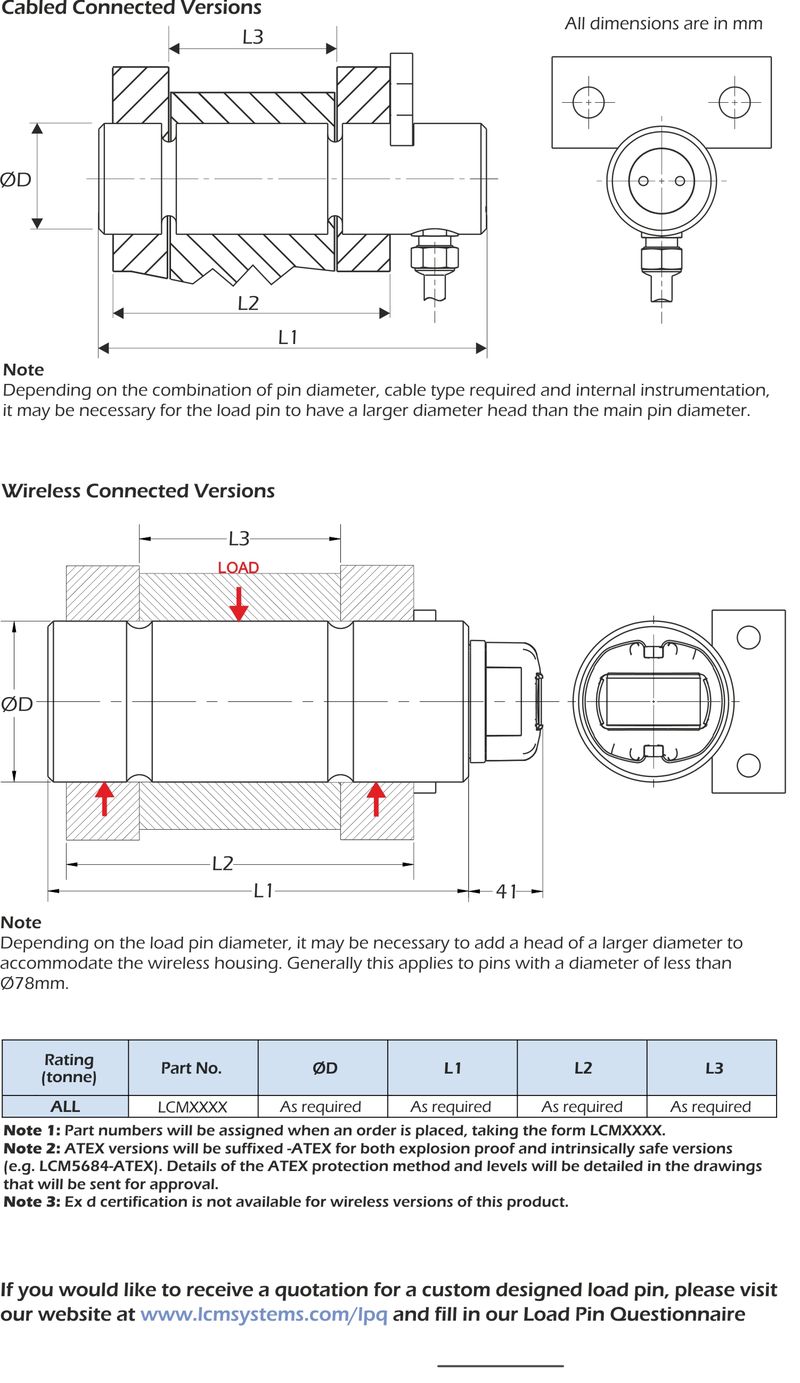

lpb load pin dimensions

  • Submersible and subsea versions
  • Integral signal conditioning
  • Special electrical connectors
  • Wireless option (not available with Explosion Proof (Exd) certification)
  • Hazardous Area certified - Explosion Proof (Ex d) and Intrinsically Safe (Ex i)
  • Anti-rotation plate
  • TEDS option when used with TR150 handheld display (Not available with Hazardous Area versions)
  • Crane overload protection
  • Winch force monitoring
  • Cable and wire dynmometers
  • Hoist overload protection
  • Mooring load tension measurement
  • Container weighing
