RILL Wireless Aluminium Load Link

The LCM RILL series have been designed for lifting and weighing in rugged or harsh environments. Being manufactured from high tensile aluminium to minimise weight also makes them ideal for mobile use (steel brushed holes provide added wear protection from shackles etc).

The RILL load link range is simple to install and are matched to standard shackle sizes. They are supplied complete with a battery powered handheld indicator, which will display the load in tonnes or pounds (other measurement units are available on request). The handheld indicator is very easy to operate, with just three buttons. One turns the unit On/Off, one toggles between Gross/Net, and the third allows you to switch units from tonnes to pounds and vice versa.

The RILL is supplied as standard without any additional wireless devices to enable greater flexibility with the configuration and ordering of the product. The RILL can be used with any of the T24 range of wireless instrumentation, whether this be for a simple display system using the T24-HS-LS, or more complex systems using multiple load cells and multiple wireless devices.

For more sophisticated systems, including datalogging or monitoring/reporting requirements, we are able to offer a robust tablet PC with installed software for use with single or multiple load cell installations. Our sales team will be happy to discuss the best wireless system configuration to suit your requirements.

  • Can be supplied with various bespoke telemetry and/or software packages
  • Environmentally sealed to IP67
  • From 1 tonne to 300 tonnes
  • License free 2.4GHz radio
  • Lightweight aluminium construction
  • Steel bushed shackle holes
  • Supplied with carry case
  • Wireless load link

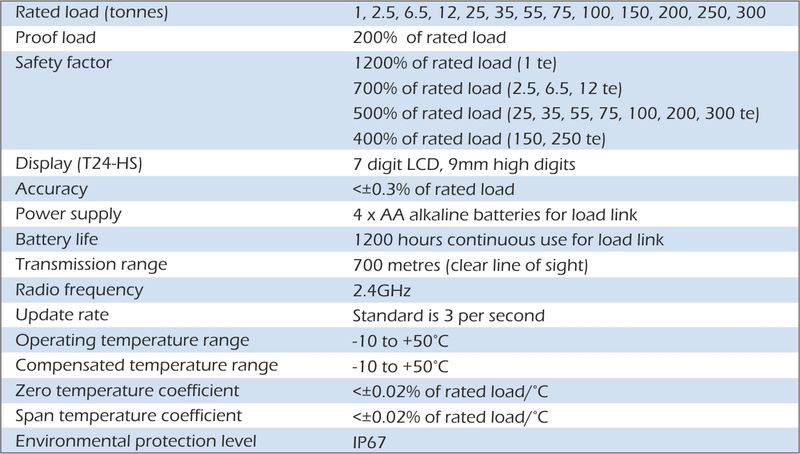

rill load link specification

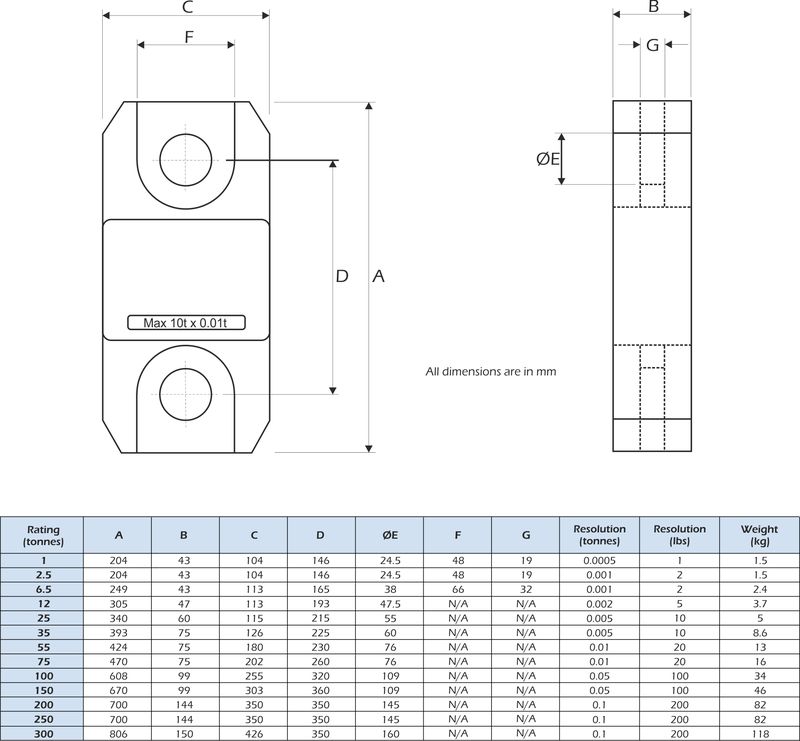

rill load link dimensions

  • Wireless overload alarm module
  • Wireless base station with analogue output
  • Wireless signal booster
  • Multiple wireless load cell controller software
  • Wireless slave display
  • Crosby shackle supply
  • Underhook Crane Weighing
  • Cable tension monitoring
  • Crane/Hoist Proof Loading
  • Water Weights filling
  • Warehouse despatch weighing

Request a quote for RILL Wireless Aluminium Load Link

DescriptionPrice Wireless DisplayStockQty
12 tonne RILL (no display included)£1727.00 2 in stock | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 2 pieces or less, we will despatch within 2 working days.

For orders of more than 2 pieces we will despatch within 10 working days.
25 tonne RILL (no display included)£1828.00 0 in stock | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 0 pieces or less, we will despatch within 2 working days.

For orders of more than 0 pieces we will despatch within 10 working days.
55 tonne RILL (no display included)£2542.00 1 in stock | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 1 pieces or less, we will despatch within 2 working days.

For orders of more than 1 pieces we will despatch within 10 working days.
