SPB-5-Aluminium Medium Range Single Point Load Cell

The SPB-5 is a medium range anodised aluminium alloy single point load cells, which has been specifically deigned for platform weighing applications, although it is equally suited to other weighing and force measurement applications where high accuracy is required. It is suitable for use in platforms with sizes up to 600mm x 600mm and is environmentally sealed to IP66.

The SPB-5 series can be supplied on it's own or combined with our extensive range of instrumentation to provide a complete load monitoring system.

For sale at £50 (original selling price £175)

  • Anodised aluminium construction
  • Environmentally sealed to IP66
  • High accuracy (0.02% of rated load)
  • Priced at £50
  • Rated to 250kgs
  • Suitable for platforms (maximum size 600mm x 600mm)

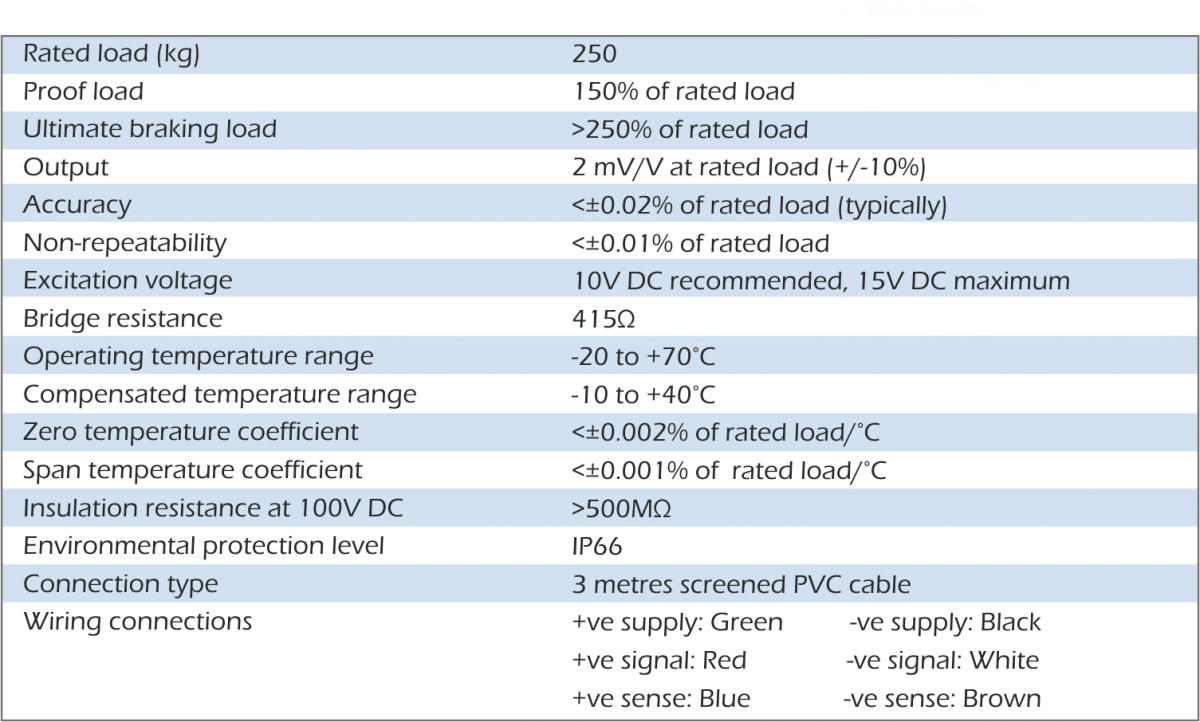

spb-5-250 specification

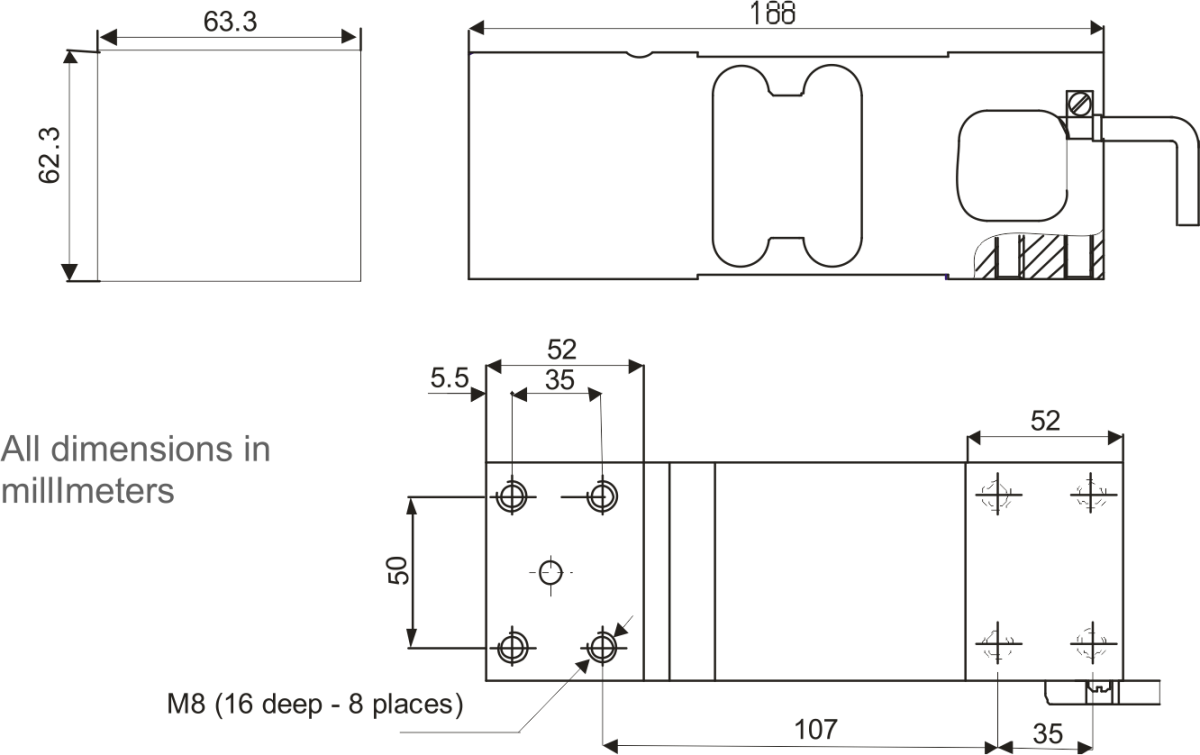

spb-5 dimensions

There are no options for this product

  • Platform scales
  • Hanging scales
  • Web tension measurement
  • Process weighing
  • Single point weighing

Request a quote for SPB-5-Aluminium Medium Range Single Point Load Cell

DescriptionPrice StockQty
SPB-5 250kg single point load cell£50.005 in stock
Hover over ADD TO BASKET for DELIVERY times | Only 5 pieces are available
