WLL Stainless Steel Wireless Load Link

The WLL series of wireless load monitoring links have been designed for lifting and weighing in rugged or harsh environments, being manufactured from stainless steel for corrosion resistance. It complies with the European Machinery Directive 2006/42/EC and is supplied in a robust storage case.

The WLL wireless series are simple to install and are matched to standard shackle sizes. The unique wireless housing is manufactured from semi-aromatic polyamide plastic making the load link far more compact and reducing the overall product weight. Located in the housing are two AAA alkaline batteries which can be easily accessed by removing the telemetry housing cover, while the internal electronics underneath remain completely sealed. The antenna is also internally mounted, protecting it from accidental damage during use and handling. The batteries are standard AAA alkaline batteries, which are readily available and low cost.

The WLL is supplied as standard without any additional wireless devices to enable greater flexibility with the configuration and ordering of the product. The WLL can be used with any of the T24 range of wireless instrumentation, whether this be for a simple display system using the T24-HS-LS, or more complex systems using multiple load cells and multiple wireless devices.

For more sophisticated systems, including datalogging or monitoring/reporting requirements, we are able to offer a robust tablet PC with installed software for use with single or multiple load cell installations. Our sales team will be happy to discuss the best wireless system configuration to suit your requirements.

The WLL series can be provided as shown in this datasheet or can be modified to meet a particular application requirement. We are always pleased to discuss any special requirements that can be accommodated.

atex statement exi



  • Amplified output version available
  • Environmentally sealed to IP67
  • Higher Range versions available
  • Machinery Directive 2006/42/EC compliant
  • Ratings from 5 to 100te
  • Simple installation and operation
  • Special Sizes and ranges available
  • Stainless steel (17-4PH H900)
  • Supplied with transit case
  • Wireless load link

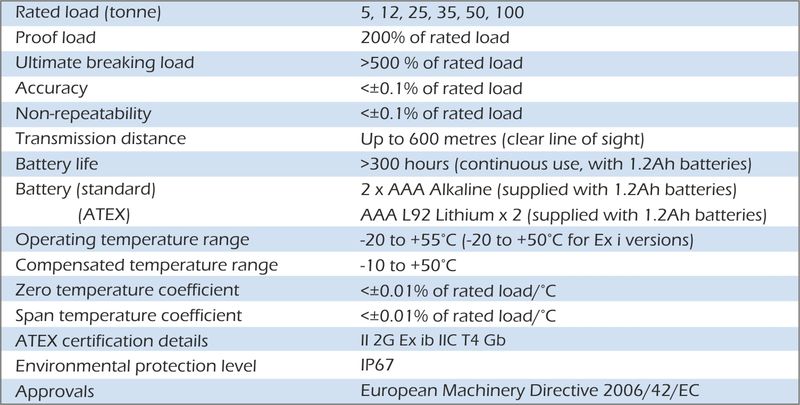

wll specification

atex statement exi

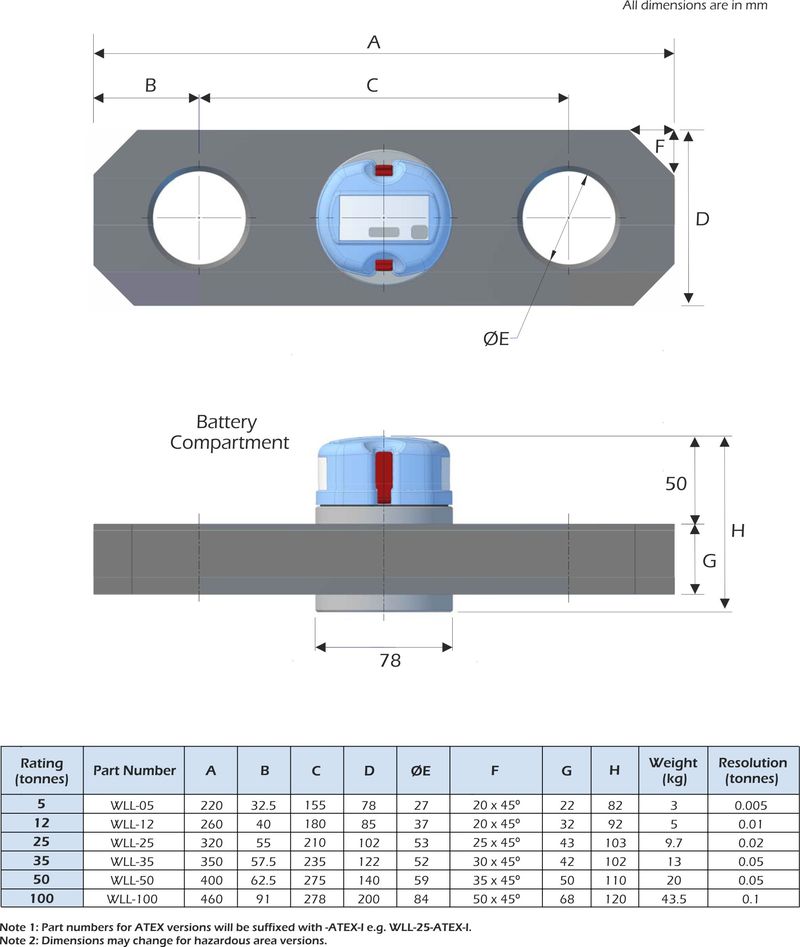

wll dimensions

  • Special ranges and sizes available
  • Hazardous Area certified - Intrinsically Safe (Ex i)
  • Ruggedised Tablet PC, with bespoke software for datalogging, reporting etc.
  • Various other wireless accessories available. See T24 range of wireless products
  • T24-HA display, for multiple load cell system
  • Can be supplied complete with shackles

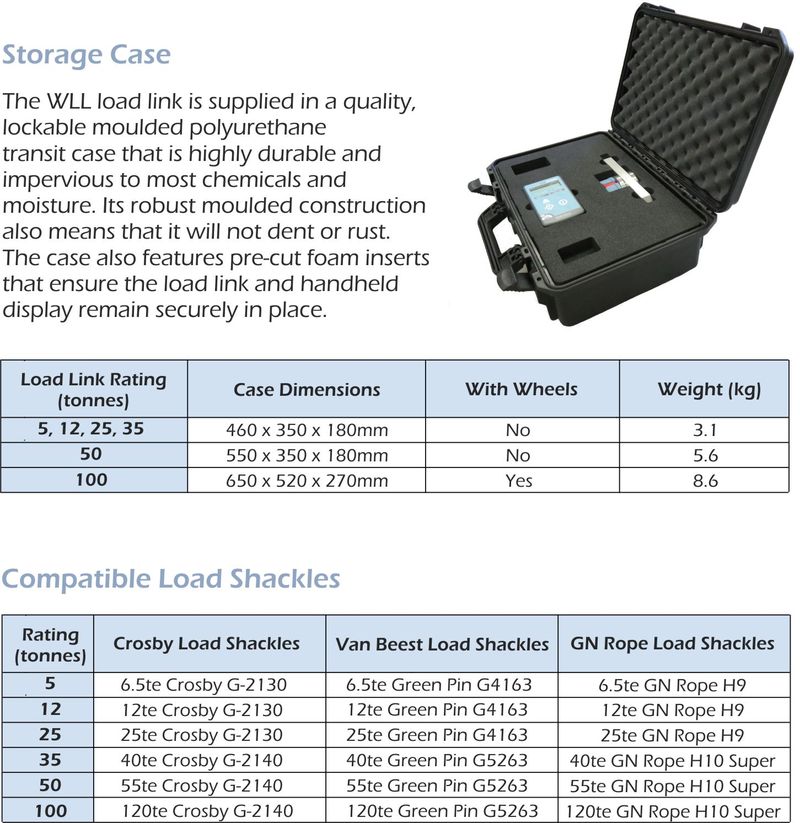

wll compatable load shackles





  • Cable Tension Monitoring
  • Under-hook Hoist and Crane Weighing
  • Towing/Mooring Tension
  • Crane Safe Load Monitoring
  • Water Bag Weighing
  • Lifting Gear Testing

Request a quote for WLL Stainless Steel Wireless Load Link

DescriptionPrice Wireless DisplayStockQty
5 tonne WLL (no display included)£1452.00 2 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 2 pieces or less, we will despatch within 2 working days.

For orders of more than 2 pieces we will generally despatch within 15 working days.
12 tonne WLL (no display included)£1413.00 2 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 2 pieces or less, we will despatch within 2 working days.

For orders of more than 2 pieces we will generally despatch within 15 working days.
25 tonne WLL (no display included)£1425.00 2 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 2 pieces or less, we will despatch within 2 working days.

For orders of more than 2 pieces we will generally despatch within 15 working days.
35 tonne WLL (no display included)£1495.00 2 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 2 pieces or less, we will despatch within 2 working days.

For orders of more than 2 pieces we will generally despatch within 15 working days.
50 tonne WLL (no display included)£2214.00 1 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 1 pieces or less, we will despatch within 2 working days.

For orders of more than 1 pieces we will generally despatch within 15 working days.
100 tonne WLL (no display included)£2666.00 2 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 2 pieces or less, we will despatch within 2 working days.

For orders of more than 2 pieces we will generally despatch within 15 working days.
