LCM3778 Load Pin

The LCM3778 stainless steel load pin has been designed for general use. Suitable for use in a large variety of applications, it is easy to install by replacing an existing load bearing pin to provide real time monitoring of load forces.

Originally manufactured for Sany and Zoomlion (two of the worlds largest engineering, mining and construction machinery manufacturers), this load pin is rated to 60 tonnes, is 80mm diameter x 208mm long and has a Lumberg connector with 10m PUR screened cable. We have 20 available for despatch in two weeks.

On sale at £400 (original selling price £1,183)

  • 4-20mA output
  • Available for £400
  • Environmentally sealed to IP67
  • Rated to 60 tonnes
  • Replaces existing load bearing pin without any system modifications
  • Robust construction
  • Simple installation and operation
  • Stainless steel construction

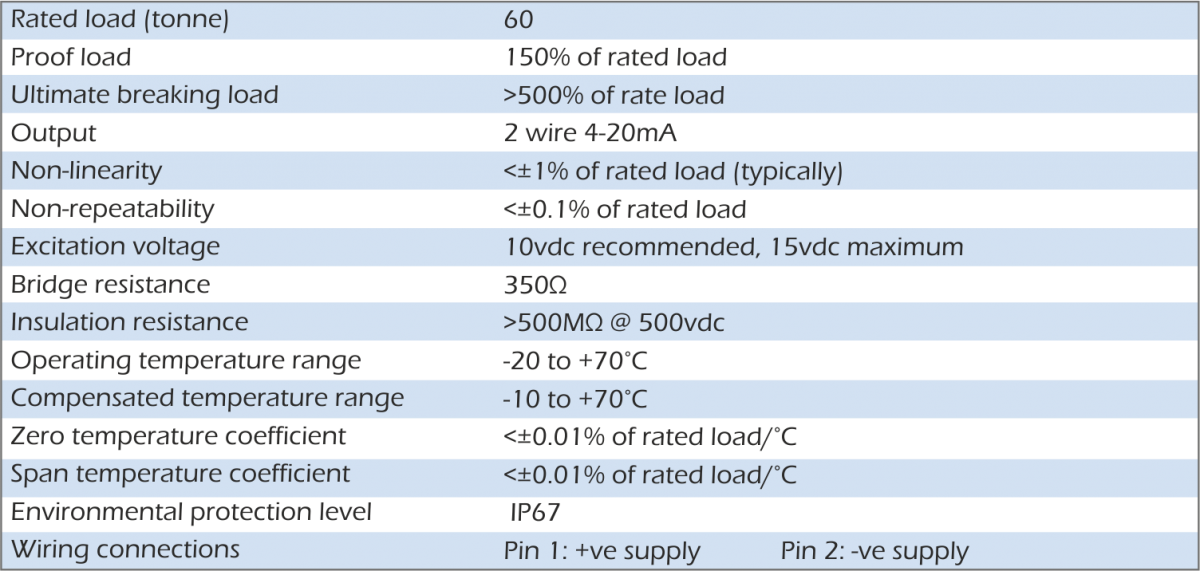

lcm3778 specification

lcm3778 dimensions 0

There are no options for this product.

  • Crane overload protection
  • Winch force monitoring
  • Cable and wire dynamometers
  • Hoist overload protection
  • Mooring load monitoring

Request a quote for LCM3778 Load Pin

DescriptionPrice StockQty
LCM3778 60te Load Pin£400.000 in stock
| YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.
For orders of 0 pieces or less, we will despatch within working days.
For orders of more than 0 pieces we will generally despatch within working days.
