LCM3780 Load Pin

The LCM3780 stainless steel load pin has been designed for general use. Suitable for use in a large variety of applications, it is easy to install by replacing an existing load bearing pin to provide real time monitoring of load forces.

Originally manufactured for Sany and Zoomlion (two of the worlds largest engineering, mining and construction machinery manufacturers), this load pin is rated to 120 tonnes, is Ø110 x 235mm and has a Lumberg connector with 10m PUR screed cable. We have 60 available for despatch in two to three weeks.

On sale at £450 (original selling price £1,380)

  • 4-20mA output
  • Easy to install
  • Environmentally sealed to IP67
  • No modifications to system required
  • Rated to 120 tonnes
  • Robust construction
  • Selling for £450
  • Stainless steel construction

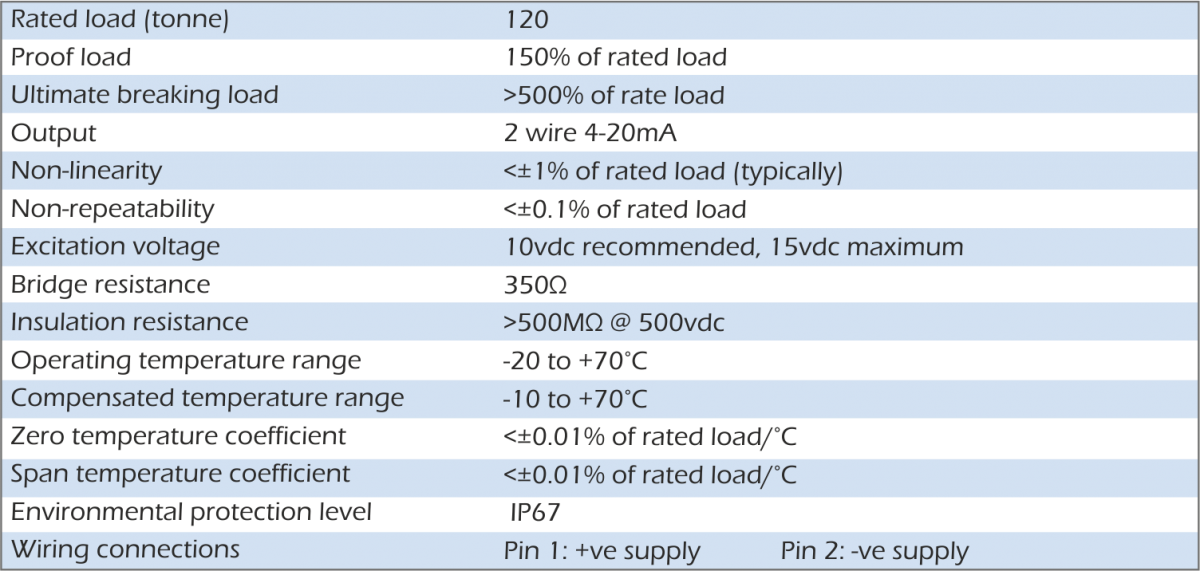

lcm3780 specification

lcm3780 dimensions

There are no options available for this product.

  • Mooring load monitoring
  • Crane overload protection
  • Hoist overload monitoring
  • Winch force monitoring

Request a quote for LCM3780 Load Pin

DescriptionPrice StockQty
LCM3780 120te Load Pin£450.000 in stock | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 0 pieces or less, we will despatch within 2 working days.

For orders of more than 0 pieces please contact
