SBL-2 Stainless Steel Shear Beam Load Cell

The SBL-2 series of shear beam load cells have been specifically designed for use in a wide range of weighing applications, including vessel weighing, floor scales and pallet trucks. There are a number of mounting accessories available to make installation easier and to ensure that the best system accuracy is maintained. Please consult with LCM Systems engineers for further details, based on your application requirements.

The SBL-2 shear beam load cell offers high accuracy and superior immunity to shock or side loading. Manufactured from stainless steel with high performance potting for superior environmental protection, the load cell provides long term reliability. There are two versions available; one with a full metric thread and another with a blind hole for load attachment.

The SBL-2 series can be supplied on its own or combined with our extensive range of instrumentation to provide a complete system.

  • 250kgs to 2000kgs
  • Can be supplied with vessel mounting assembly, shock mounts or platform foot mounting assembly
  • Environmentally sealed to IP67
  • Low profile design
  • Stainless steel construction

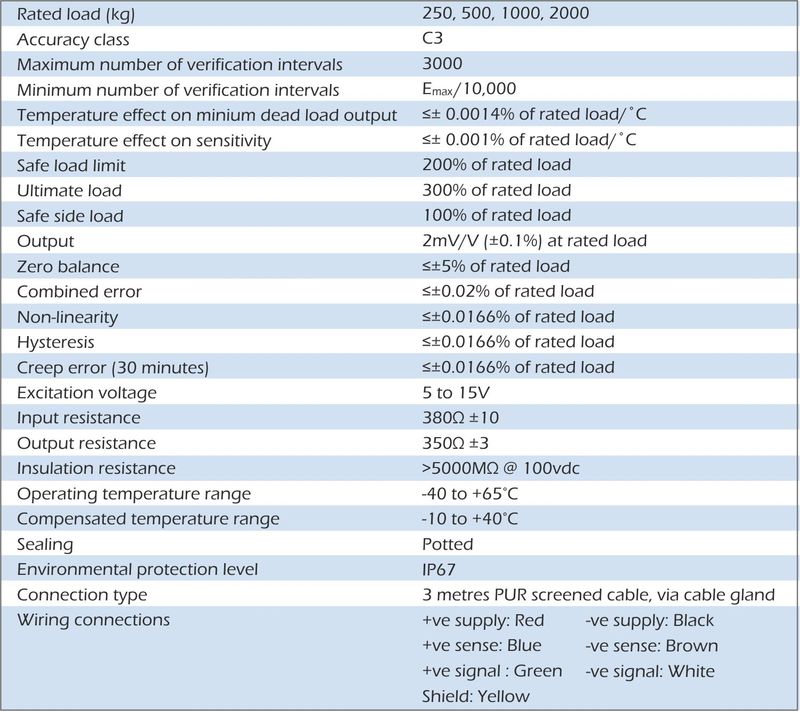

sbl-2 specification

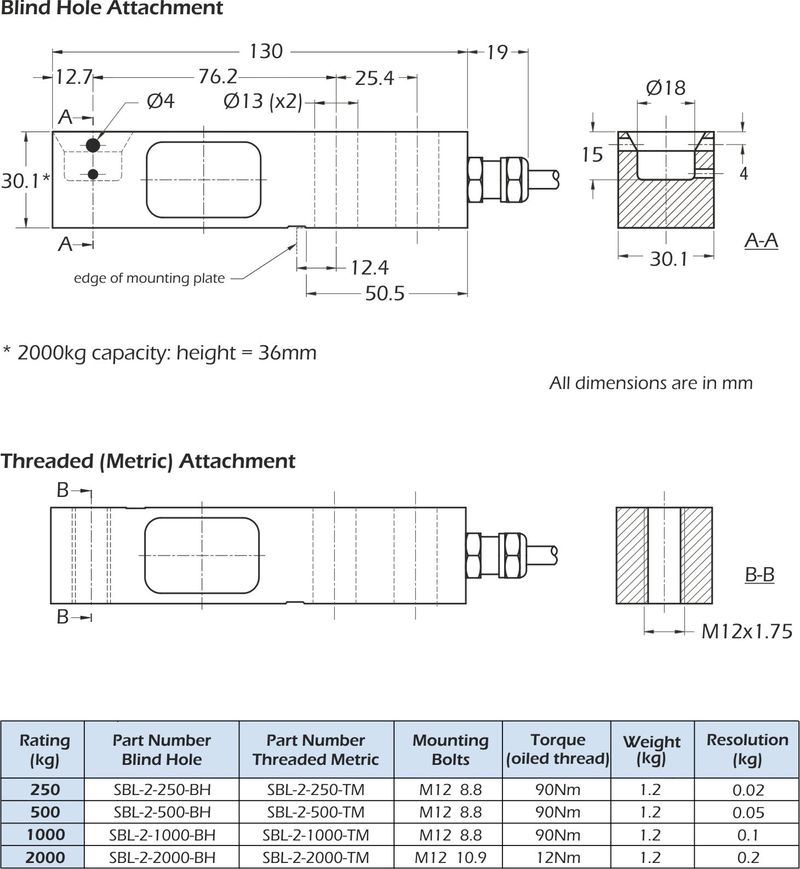

sbl-2 beam load cell dimensions

  • Vessel mounting assembly (using blind hole version of SBL-2)
  • Shock mounting assembly
  • Platform foot mounting assembly (using blind hole version of SBL-2)
  • Vessel weighing
  • Floor scales
  • Rolling roads
  • MOT Brake testers
