DSC Strain Gauge to Digital Data Converter

The DSC is a high performance digital signal conditioner with a host of additional features for the precision measurement of strain gauge based transducers.

The DSC is available with an RS485 or RS232 output format, making it suitable for "one-to-one" or mutli-drop systems. Including the DSC into load cell based applications enables the building of very high accuracy load cells, using the built in linearisation and temperature compensation facilities.

The DSJ1, single channel junction box and DSJ4, four channel junction box are available to assist with simple on-site installation and commissioning.

LCM Systems can also supply PC based software packages, specially written to interface with DCELL based load cells and pressure transducers. Please contact our technical department to discuss your requirements.

  • Baud rates to 230k
  • Diagnostics LED
  • High speed (up to 500 readings/sec)
  • Noise immunity 5x heavy industrial level
  • Operating voltage (5.4 - 18Vdc)
  • Peak and trough recording
  • Programmable dynamic filter
  • Real mV/V calibration
  • Remote shunt calibration
  • RS485 and RS232 versions available
  • Strain gauge to digital data converter
  • Very high stability
  • ±15KV ESD protected

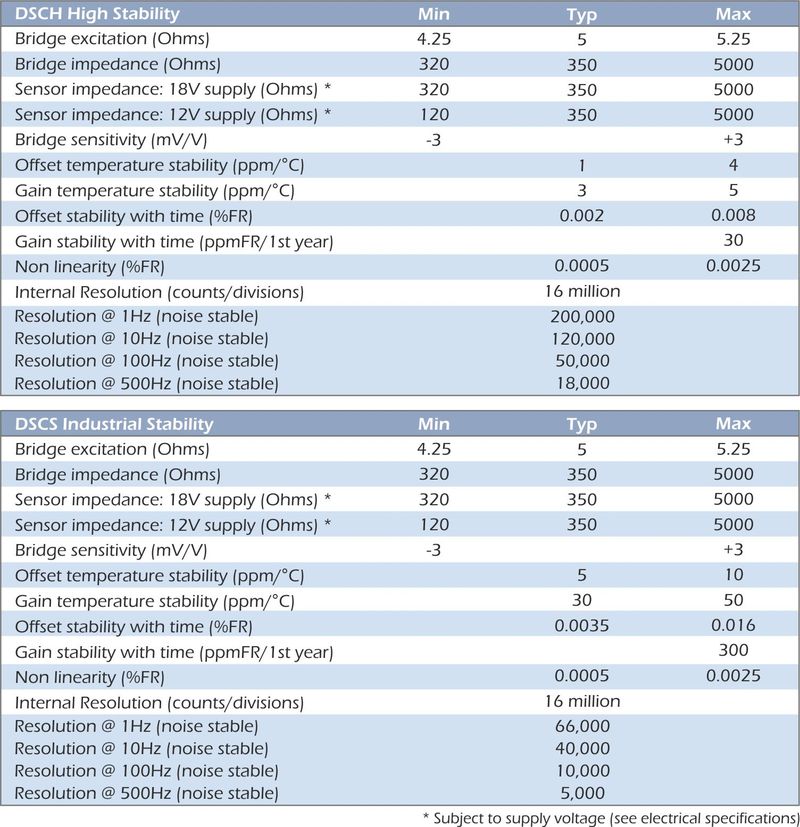

dsc data converter specification

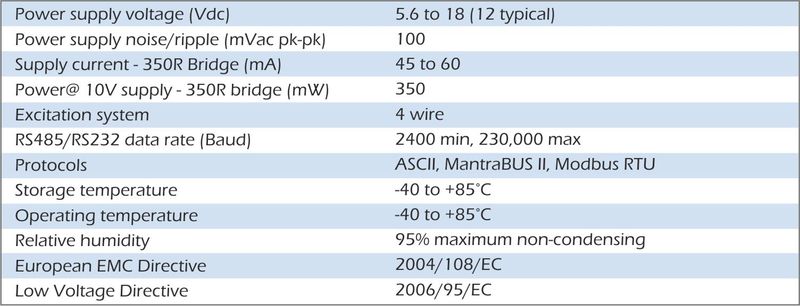

dsc data converter specification 1

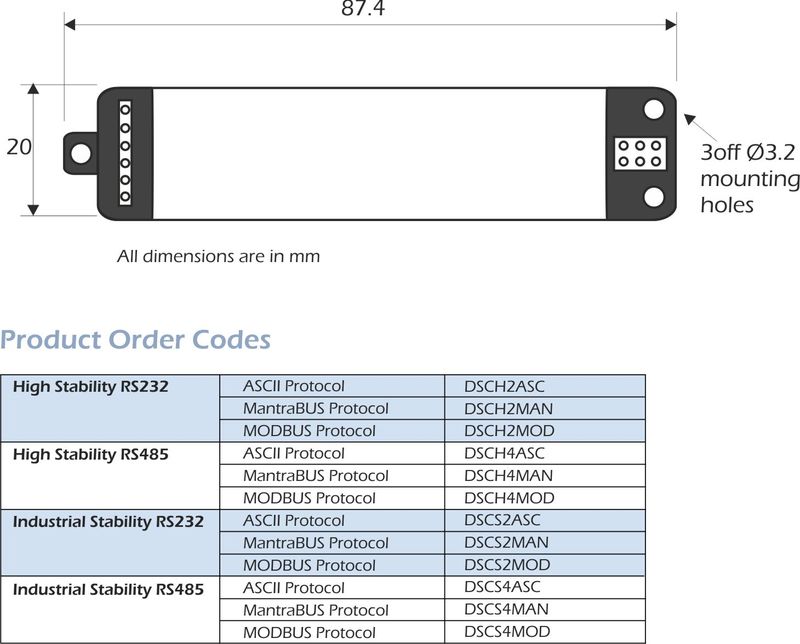

dsc data converter dimensions

  • Temperature Measurement Resolution (0.1oC) and Temperature Measurement Accuracy (1oC)
  • High accuracy Aircraft Weighing
  • Crane weighing, using LDD-LITE large digit display
  • Centre of Gravity PC based systems
  • Condition and safety monitoring systems
