SBL-3 Stainless Steel Shear Beam Load Cell

The SBL-3 series of shear beam load cells are available in a wide range of capacities from 200lb (91kg) through to 5000lb (2268kg). They are manufactured entirely from stainless steel and offer environmental sealing to IP67. The high bridge resistance of this model provides extended battery life for portable or battery powered installations. The SBL-3 shear beam load cell can be supplied complete with a vessel/tank weighing assembly, which is designed to make installation easier and to provide a means of realising the best accuracy from the product when installed, by eliminating the effects for vessel/tank thermal expansion. More details on the assembly are available on a separate datasheet (SBL-WMOUNT).

There are two versions available; one with a threaded end load attachment hole, the other version has a blind hole. The blind hole version is ideal for floor scale applications, where a foot can be attached for simple scale design. This version is also used when the vessel weighing assembly is used. The threaded version is ideal for hanging vessels and hoppers.

We offer a wide range of additional instrumentation products to further enhance the product within a complete system. For vessel weighing applications, there are several displays and signal conditioners that can be offered to provide a complete weighing solution.

  • Can be supplied with vessel mounting assembly, shock mounts or platform foot mounting assembly
  • Environmentally sealed to IP67
  • High bridge resistance
  • Ranges 200lbs to 5000lbs
  • Stainless steel construction
  • Unique blind loading hole

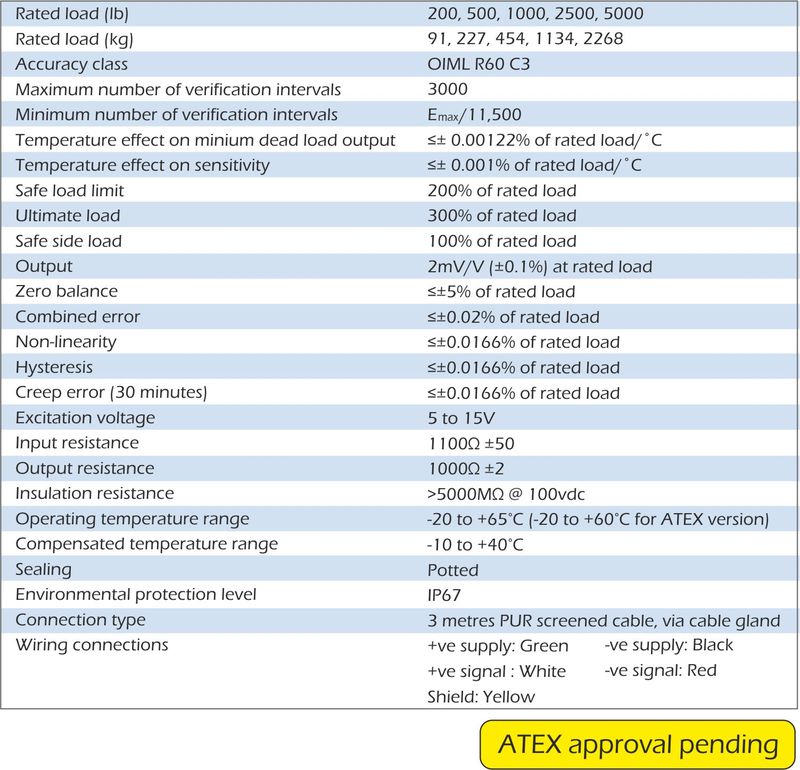

sbl-3 beam load cell specification

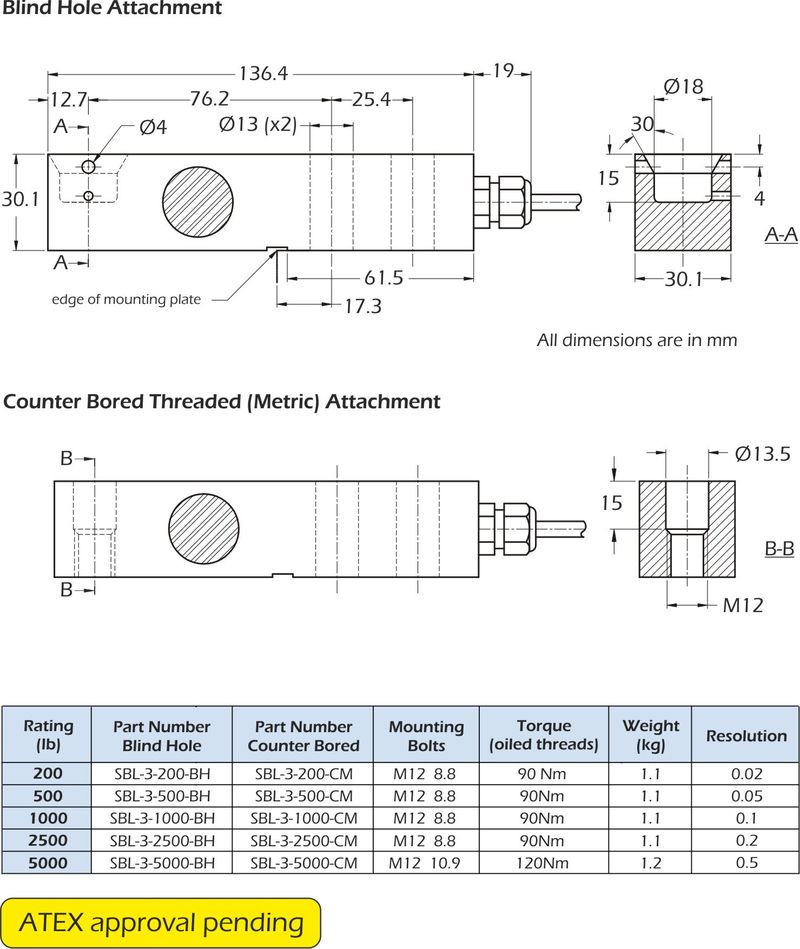

sbl-3 beam load cell dimensions

  • Vessel mounting assembly (using blind hole version of SBL-3)
  • Shock mounting assembly
  • Platform foot mounting assembly (using blind hole version of SBL-3)
  • Vessel and hopper weighing
  • Floor scales
  • Rolling roads
  • MOT Brake testers
  • Pallet truck weighing
  • Tank and silo weighing
