STA-7 Low Range S Type Tension & Compression Load Cell

The STA-7 series load cell is ideal for measuring both tensile and compressive forces. The standard metric threads at each end of the load cell are designed to accept standard spherical seating rod-end bearings. The STA-7 is suitable for many applications where a tension and compression load cell is required, for high accuracy measurements. Applications such as material test machines, weighing, general force measurement etc.

Tension and compression overload stops are supplied as standard on all ranges up to 5kg. This feature helps to protect the load cell against accidental damage up to 500% of the load cell range.

The STA-7 series can be supplied on it’s own or combined with our extensive range of instrumentation to provide a complete load monitoring system.




  • Aluminium alloy construction
  • Environmentally sealed to IP20
  • High accuracy
  • Integral Overload Stops on 1, 2 and 5kg versions
  • Ratings from 1kg to 50kgs
  • Weighs only 300g

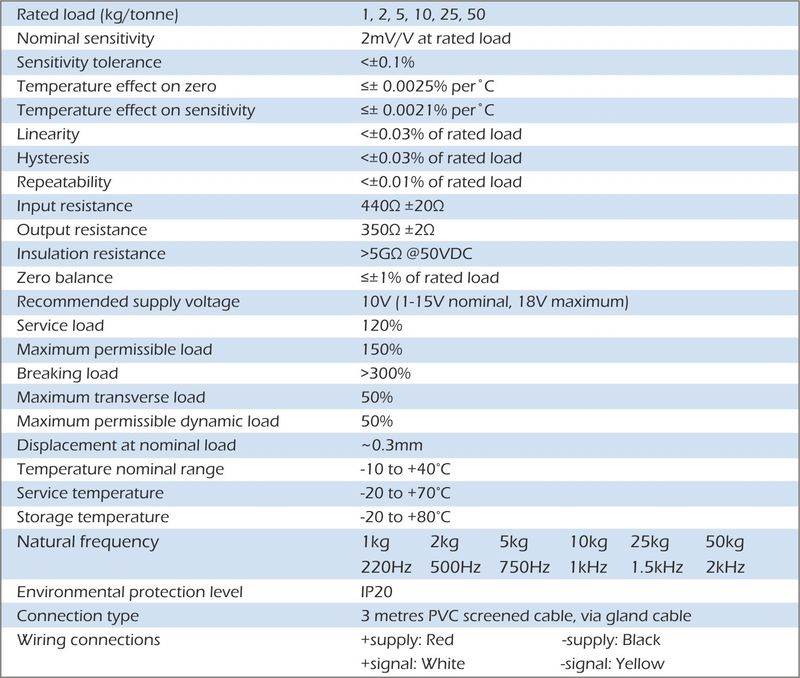

sta-7 load cell specification

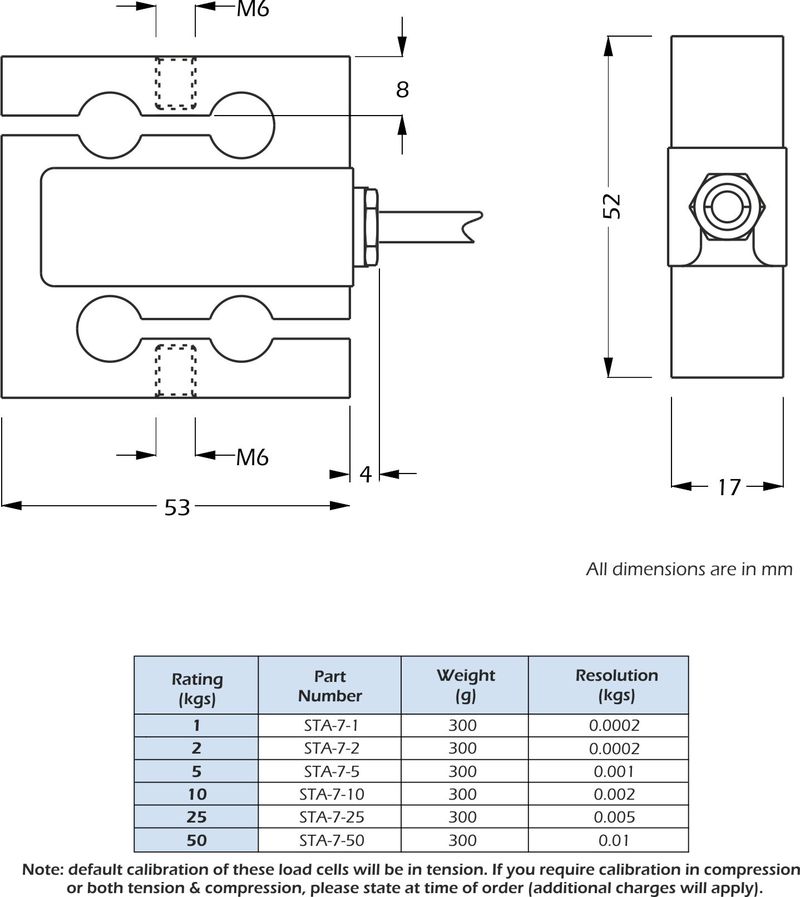

sta-7 load cell dimensions

  • Hanging scales
  • Material test machines
  • Motor dynamometers
  • General force measurement

Request a quote for STA-7 Low Range S Type Tension & Compression Load Cell

DescriptionPrice StockQty
1kg STA-7£379.0024 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 24 pieces or less, we will despatch within 2 working days.

For orders of more than 24 pieces we will generally despatch within 15 working days.
2kg STA-7£379.004 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 4 pieces or less, we will despatch within 2 working days.

For orders of more than 4 pieces we will generally despatch within 15 working days.
5kg STA-7£344.004 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 4 pieces or less, we will despatch within 2 working days.

For orders of more than 4 pieces we will generally despatch within 15 working days.
10kg STA-7£344.005 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 5 pieces or less, we will despatch within 2 working days.

For orders of more than 5 pieces we will generally despatch within 15 working days.
25kg STA-7£344.002 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 2 pieces or less, we will despatch within 2 working days.

For orders of more than 2 pieces we will generally despatch within 15 working days.
50kg STA-7£344.0010 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 10 pieces or less, we will despatch within 2 working days.

For orders of more than 11 pieces we will generally despatch within 15 working days.
