STA-1 S-Type Tension and Compression Load Cell

The STA-1 product has been replaced by an expanded STA-4 range of products. We can offer the STA-1 until all stock is sold. Actual stock quantities for each capacity that are available can be viewed above.
Click here to view details of the STA-4 product range.

The STA-1 series load cell is ideal for measuring both tensile and compressive forces. The standard metric threads at each end of the load cell are designed to accept standard spherical seating rod-end bearings.

The STA-1 is suitable for many applications where a tension and compression load cell is required for high accuracy measurements. Applications such as vessel weighing, material test machines and dynamometers are a few examples.

The STA-1 series can be supplied on it's own or combined with our extensive range of instrumentation to provide a complete load monitoring system.

  • Aluminium alloy construction
  • Can be supplied complete with mating spherical rod-end bearings
  • Environmentally sealed to IP66
  • From 50kgs to 300kg

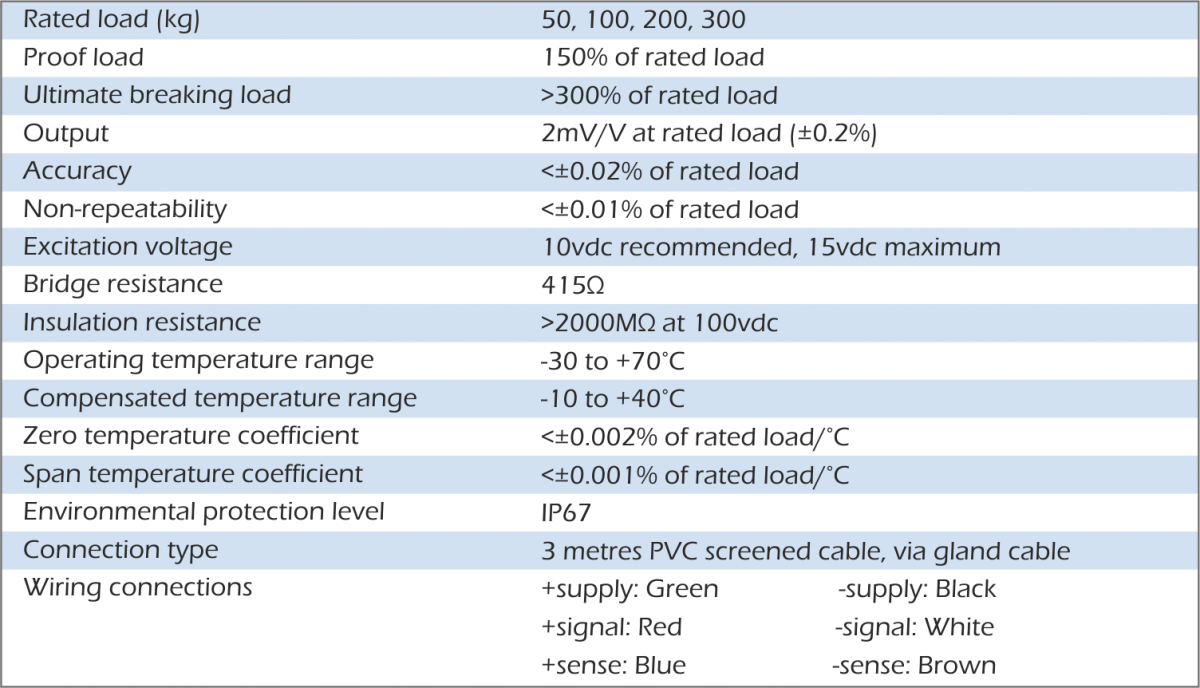

sta-1 load cell specification

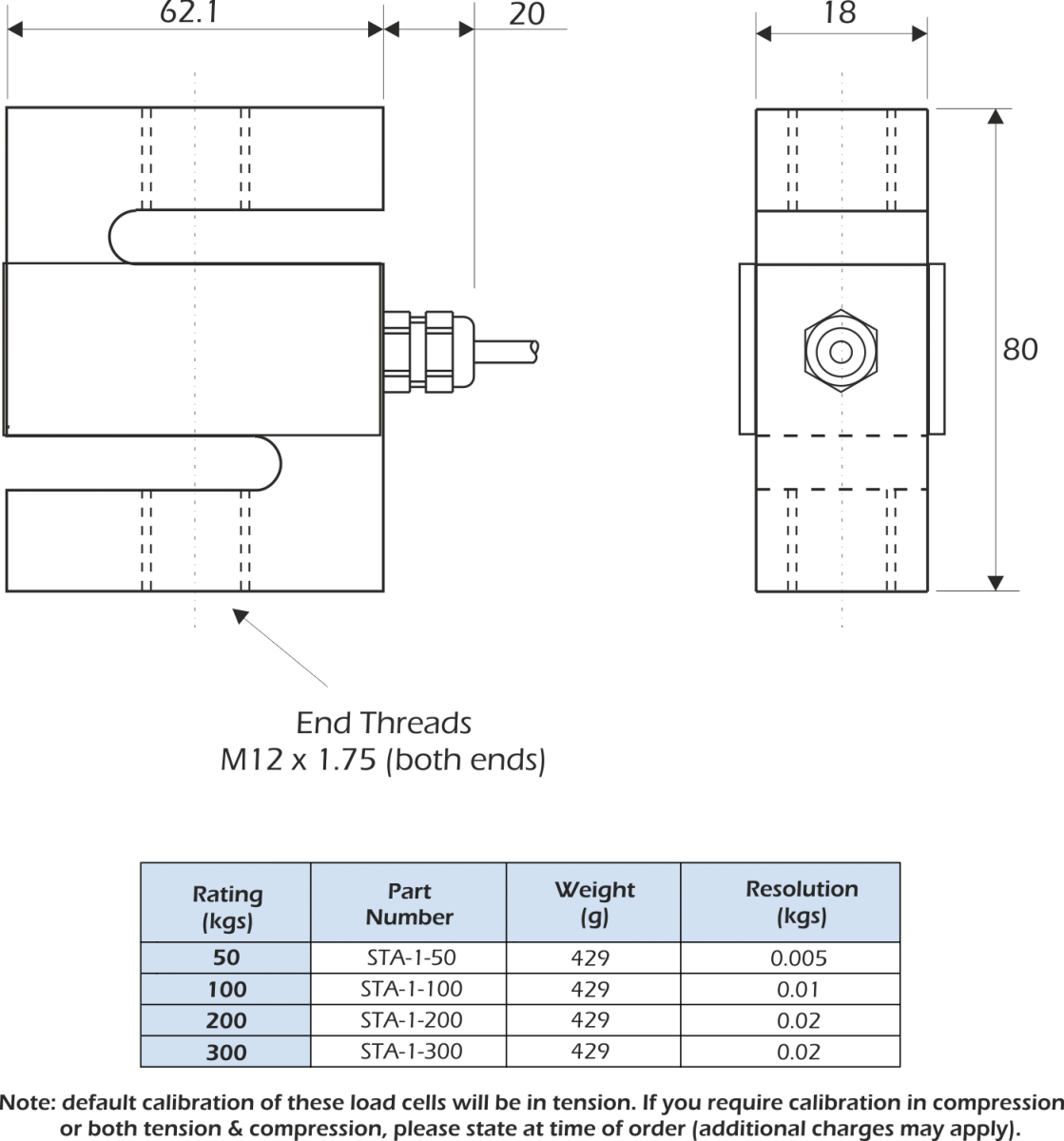

sta-1 load cell dimensions

  • Hanging scales
  • Material test machines
  • Engine/motor dynamometers
  • General force measurement

Request a quote for STA-1 S-Type Tension and Compression Load Cell

DescriptionPrice StockQty
100kg STA-1£114.000 in stock | For orders of more than 0 pieces please refer to STA-4 Model
