All aircraft must undergo a complex, rigorous flight testing and certification programme. Only when fully approved and certified can the aircraft be cleared for service. Part of this testing includes structural static testing of the airframe, including maximum wing bending at full operational loading, spoiler and aileron function testing during maximum wing bend and fatigue tests which examine how the aircraft structure responds to stress over a period of time and during different stages of its operations, from take-off to landing.
To recreate these conditions a combination of loads is placed on the airframe and typically activated by computer-operated hydraulic jacks. Strain gauged load cells are incorporated to provide load measurement data on the forces being applied that is subsequently used by engineers for analysis and test result generation.
LCM Systems can provide a variety of load cells for airframe testing, many of which include integral amplifiers to provide an output compatible for direct integration with a PC for simple configuration and set up. Below is just a small selection of the types of load cell we supply for this application, but if you can’t see what you are looking for make sure you get in touch, as we are always more than happy to offer advice and assistance.
Below is a selection of some of our most popular standard load cell and sensor based products used for Airframe Testing applications
Below is a selection of our most popular standard instrumentation products used for Airframe Testing applications
Below is a selection of some of our custom design product solutions used for Airframe Testing applications
What Airframe Testing Applications have LCM Systems already satisfied?
Please review some of the recent news items relating to Airframe Testing load cells, load pins and associated instrumentation that we have supplied to our customer base. These will help demonstrate the experience we have in finding solutions for our customers, in a addition to the standard product offering available for this application.
22nd Mar 2022
300kN ATEX/IECEx Triple Bridge Load Cells

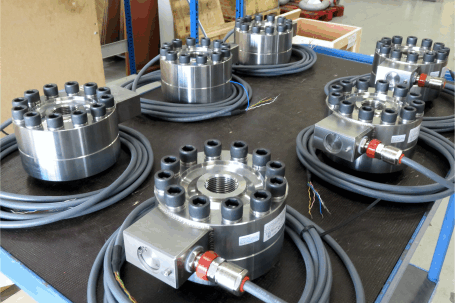

Six of these 300kN rated ATEX/IECEx Ex'd tension and compression load cells have been manufactured for a US customer, and will be installed on an actuator for structural static and fatigue testing purposes.
8th Mar 2019

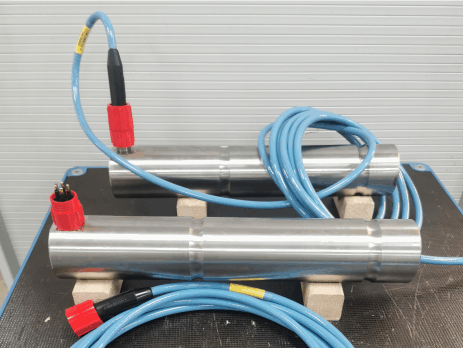

Load Pins for Aerospace Industry

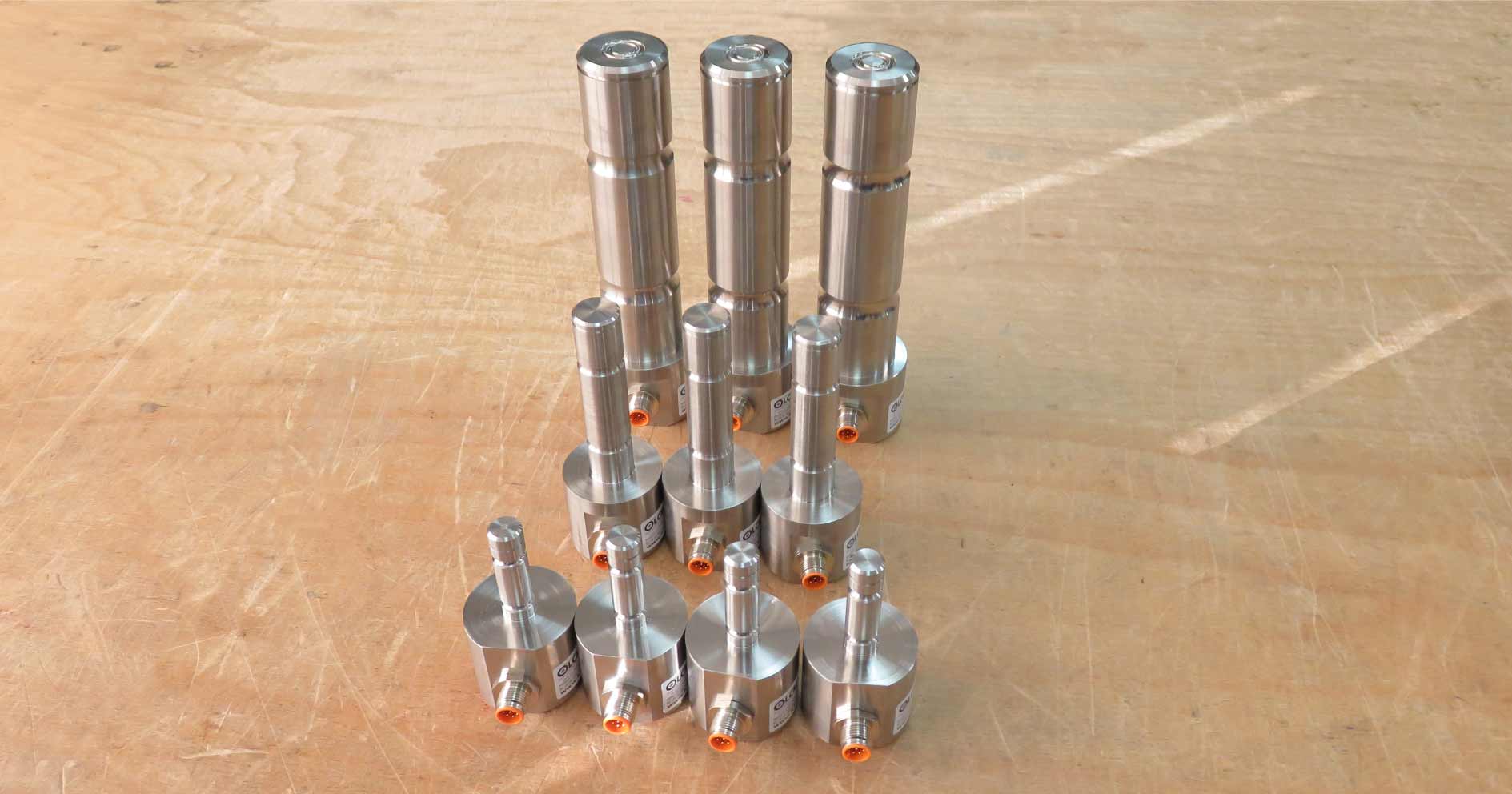

Despatched to our USA distributor, Interface Inc, were these 10 load pins for an aerospace application.
