LPC Stainless Steel Shackle/Clevis Load Pin

The LCM LPC shackle/clevis load pin offers precision force measurement by replacing existing pins in load shackles or clevises with a load sensing pin. They are extremely durable under even the harshest working conditions and have a long operational life.

The LPC load pin range is available in ratings from 1te to 1500te and are built to exacting standards. They are proof loaded to 150% of normal rated load and are temperature compensated. The load pins employ a full strain gauge bridge as its measurement technology.

The LPC load pin series can be supplied on its own or combined with our extensive range of instrumentation to provide a complete load monitoring system.

We also offer a standard load pin range (see LMP load pin) and a custom designed load pin range (see LPB load pin).

If you would like a quotation for an LPC shackle/clevis load pin, please click the Questionnaire tab and complete the form.



atex statement exd and exi

  • Ranges from 1te to 1500te
  • Stainless steel construction
  • Environmentally sealed to IP67 (IP68 available on request)
  • Can be supplied with integral connector
  • Versions available with integral conditioning providing 0-10V, 0.5V, 4-20mA, RS485 outputs
  • Design support software available

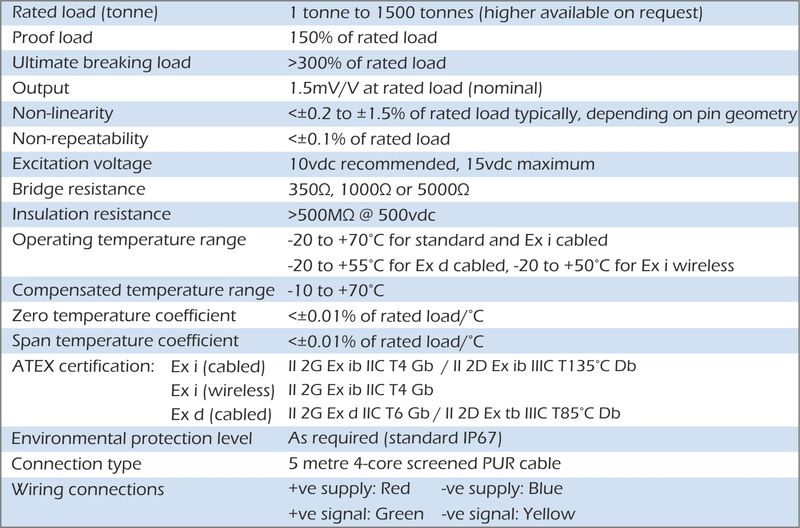

lpc load pin specifcation

atex statement exd and exi

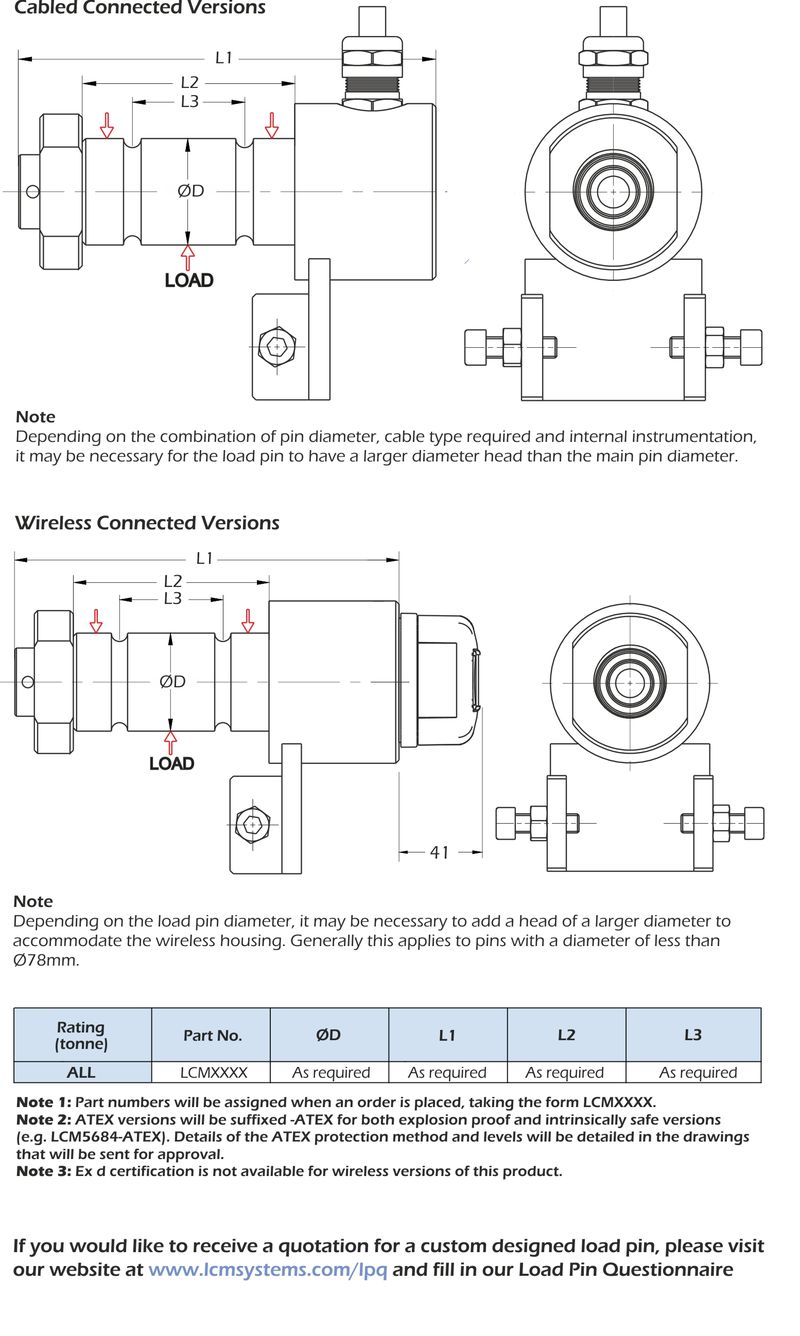

lpc load pin dimensions

  • Hazardous Area certified - Explosion Proof (Ex d) and Intrinsically Safe (Ex i)
  • Integral signal conditioning
  • Special electrical connectors
  • Subsea versions available
  • Wireless option (not available with Explosion Proof (Exd) certification)
  • TEDS option when used with TR150 handheld display (Not available with Hazardous Area versions)
  • Crane overload protection
  • Winch force monitoring
  • Cable and wire dynamometers
  • Hoist overload protection
  • Mooring load tension measurement
  • Container weighing
