- Ratings from 2 tonnes to 1000 tonnes
- Stainless steel construction
- Environmentally sealed to IP67
Newly built bridges need to be lifted and carefully positioned in their final position following construction and transportation to site. They may also have to be lifted during their service life for bearing replacement or structural repairs. This requires the use of jacking systems or cranes, both of which can benefit from the use of a load monitoring system to improve safety and efficiency.
If a hydraulic jacking system is being used, our load cells can be incorporated to provide real time information to engineers of the jacking forces being applied to the bridge structure, allowing them to be either increased or reduced to achieve optimal lift and performance.
When using cranes to lift bridge structures, our crane safe load monitoring systems provides the operator with lifting load data so they can continually monitor the lift to ensure that it stays within the cranes maximum safe load limit.
LCM Systems have provided many load monitoring solutions for bridge lifting and positioning applications and have a range of load cells to suit. Below is a selection of the most commonly used load cell types, with both cabled and wireless options.
Below is a selection of some of our most popular standard load cell and sensor based products used for Bridge Lifting & Positioning applications
Below is a selection of our most popular standard instrumentation products used for Bridge Lifting & Positioning applications
T24 Base Stations
Below is a selection of some of our custom design product solutions used for Bridge Lifting & Positioning applications
What Bridge Lifting & Positioning Applications have LCM Systems already satisfied?
Please review some of the recent news items relating to Bridge Lifting & Positioning load cells, load pins and associated instrumentation that we have supplied to our customer base. These will help demonstrate the experience we have in finding solutions for our customers, in a addition to the standard product offering available for this application.
31st Jan 2020

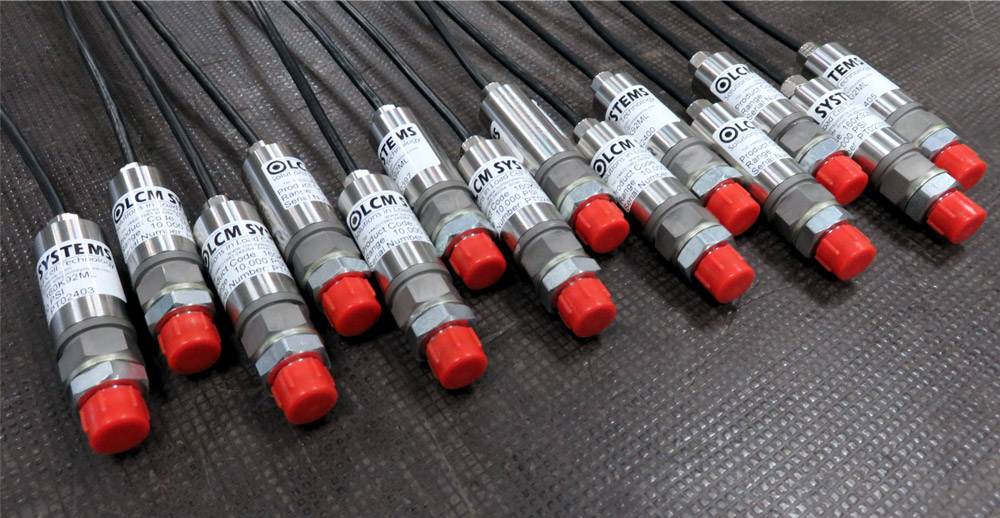

These 10,000psi BP16 pressure transducers have been manufactured for a UK based company that specialises in controlled hydraulic jacking.
9th Aug 2019
400te Load Pins for Bridge Structural Monitoring
We have recently desptached 35 load pins, each rated to 900klbf (400 tonnes) to our USA distributors, Interface Inc.
