Anchor Line Monitoring

Inspection of permanent anchor line moorings is particularly significant in the oil and gas industry for FPSOs, Semi-Submersibles, Spars, TLPs, SPM buoys and fixed platforms, where anchor line failure could lead to a spillage incident and put the safety of onboard personnel at risk. While limited measurements and inspection can be carried out by divers and ROVs, the most common inspection methods are simply visual, leading to the identification of sections of the mooring line that are showing signs of fatigue or over tensioning being missed.

The installation of an anchor load monitoring system can significantly improve operational safety by providing the vessel operator with real time data on anchor load tensions to give ongoing information on the integrity of the anchor mooring system. This allows preventative action to be taken in the event of anchor line loads exceeding predetermined limits.

LCM Systems can provide complete anchor line monitoring systems that include alarms to alert control room personnel that an over tensioning issue has been detected and remedial measures are required. Alternatively we can supply just the load sensor with signal outputs suitable for direct integration into existing vessel operating systems. Our systems can be installed in new mooring arrangements or retrofitted, and can consist of submersible load shackles or load pins installed in the mooring bridle/mooring assembly.




Below is a selection of some of our most popular standard load cell and sensor based products used for Anchor Line Monitoring applications

Below is a selection of our most popular standard instrumentation products used for Anchor Line Monitoring applications

Below is a selection of some of our custom design product solutions used for Anchor Line Monitoring applications

Buy Now
lcm1410

LCM1410

  • 55te Subsea Load Cell
  • Installed in chain stopper
  • Low Height (only 117mm high)
Buy Now
lcm3511

LCM3511

  • 85te Subsea Load Shackle
  • Permanently submersible to 45 metres
  • Greenpin G4153 Bow Shackle
Buy Now
lcm4487

LCM4487

  • Diving Bell Weight Verification
  • 1000kN load pins
  • Integral amplifier for 4-20mA output
Buy Now
lcm4550

LCM4550

  • Pipe Laying Vessel Load Cell
  • All load pins dual bridge
  • Serial output direct to PC
Buy Now
lcm4570

LCM4570

  • 12te Shackle and Data Logger
  • Submersible to 4.5m
  • 6 weeks unattended operation
Buy Now
lcm4573

LCM4573

  • 55te Low Temperature Load Shackle
  • Temperature range of -40°C to +60°C
  • Crosby G2140 bow shackle
Buy Now
lcm4580

LCM4580

  • Data logging facility
  • Holes sized for G-4159 shackles
  • Machined with rounded edges
Buy Now
lcm4670

LCM4670

  • 55te Telemetry Load Shackle
  • Crosby G2130 bow shackle
  • Used for lifting nuclear container dome

What Anchor Line Monitoring Applications have LCM Systems already satisfied?

Please review some of the recent news items relating to Anchor Line Monitoring load cells, load pins and associated instrumentation that we have supplied to our customer base. These will help demonstrate the experience we have in finding solutions for our customers, in a addition to the standard product offering available for this application.

550te Compression Load Cells

6th Jul 2023

550te Compression Load Cells

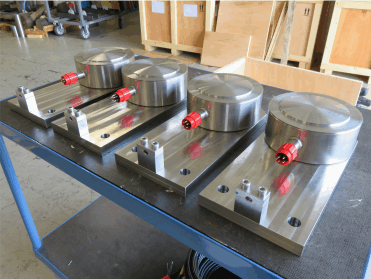

We have recently despatched these 550te compression load cells to a petroleum company in Vietnam, which will be installed within a chain stopper on a oil service platform.

Read More...
10kn-tension-load-cell

12th Jul 2019

10kN Tension Load Cell

Recently manufactured for a UK customer working in the offshore renewable energy sector was this 10kN rated tension load cell.

Read More...
3800kn-washer-load-cell

25th Jan 2019

3800kN Washer Load Cell

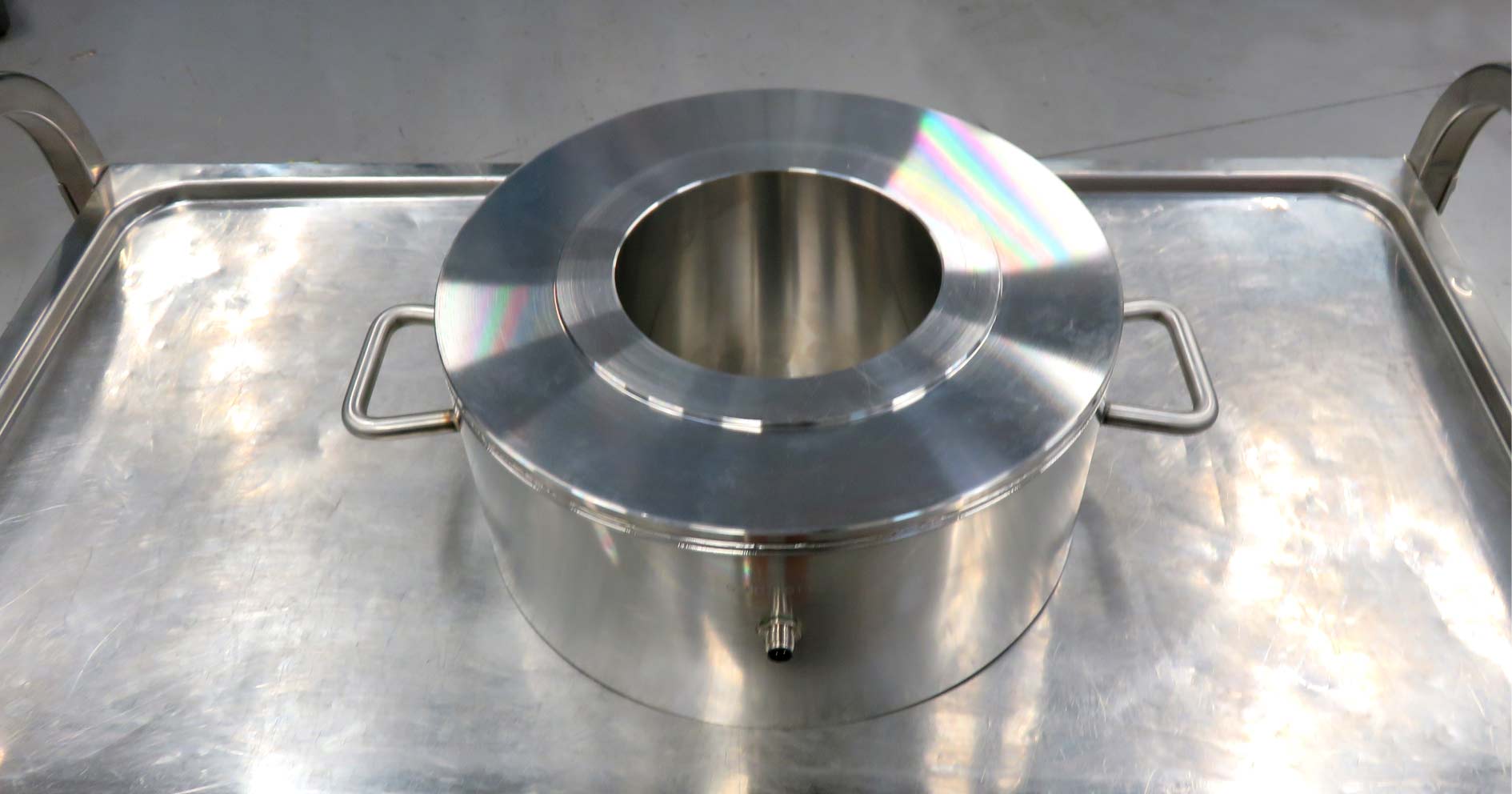

This 3800kN stainless steel through hole load cell has been manufactured for a UK customer that specialises in power and propulsion systems.

Read More...
