Applications Winch Load Monitoring
Winch Load Monitoring
LCM Systems manufacturer and supply winch load monitoring systems that provide winch line load data. This improves operational safety by allowing operators to take preventative action in the event that winch loads exceed pre-determined safe limits. The load cells that we use for this application are robust, reliable and built to withstand harsh operational environments. They can be fitted to new equipment or retrofitted without any modifications to the winch. We can supply standard load pins or dual axis load pins that take into account wrap angles. These load pins incorporate separate strain gauges in both the X and Y axis, so that the effect the wrap angle has on line loads is taken into account.
In addition to load pins, other types of load cell can be used to monitor winch loads and include load links and compression load cells. These are often used when a highly accurate solution is needed or where the use of a load measuring pin is not practical/possible.
In addition to providing improved safety, the historical data-logging of winch loads gives asset owners and managers additional information that can be used for scheduling routine maintenance and to demonstrate winch performance and integrity.
Below is a selection of some of our most popular standard load cell and sensor based products used for Winch Load Monitoring applications
LMP
- From 500 kgs to 1500 tonnes
- Stainless Steel Construction
- Environmentally Sealed to IP67
LPB
- Custom design load pin
- Dimensions to suit application
- From 100 kgs to 1500+ tonnes
TLL
- 5te to 100te
- Stainless steel construction
- Environmentally sealed to IP67
Below is a selection of our most popular standard instrumentation products used for Winch Load Monitoring applications
DIS-323AL/SS ATEX
- Display for use in hazardous areas
- Loop powered
- +/-99999 display, 10cm high
LCA20
- Intelligent load cell amplifier
- 4-20mA/0-10V/RS232/RS485 outputs
- Autotare, peakhold and reset
LD-STRAIN
- Load cell input
- Digit height up to 16" (40.5cm)
- AC or DC powered
PMD-STRAIN
- Load cell input
- Wide selection of outputs
- 14.2mm high red LED display
SGA
- Strain gauge amplifier
- Load cell input
- Selectable voltage & current outputs
SMW
- Load cell input
- Large 8 digit LCD display
- Voltage and current output
T24-ACM
- Wireless sensor transmitter
- Regulated external supply
- Powered by batteries for up to 5 years
T24-HS-LS
- Simple wireless handheld indicator
- Connects to a single acquisition unit
- Gross/Net weight facility
T24-RM1
- Relay output module
- Offers dual 240V AC 5Amp Relays
- Sums up to 8 T24 acquisition modules
T24-SO
- Serial output module
- Wide operating voltage range
- Output can be formatted
Below is a selection of some of our custom design product solutions used for Winch Load Monitoring applications
LCM1410
- 55te Subsea Load Cell
- Installed in chain stopper
- Low Height (only 117mm high)
LCM3064
- 150te Subsea Load Shackle
- GN Rope H11 shackle
- Special anti-rotation bracket
LCM4550
- Pipe Laying Vessel Load Cell
- All load pins dual bridge
- Serial output direct to PC
LCM4643-ATEX
- 12te ATEX Load Shackle
- Audio and visual alarms
- Supplied with ATEX certified display
What Winch Load Monitoring Applications have LCM Systems already satisfied?
Please review some of the recent news items relating to Winch Load Monitoring load cells, load pins and associated instrumentation that we have supplied to our customer base. These will help demonstrate the experience we have in finding solutions for our customers, in a addition to the standard product offering available for this application.
19th May 2023

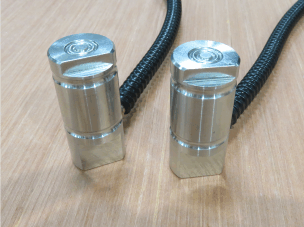

120kN Load Pins for Reel Winch
These tiny 120kN load measuring pins will be used to measure the tension in a reel winch to make sure line tension stays within safe limits.
14th Jan 2022

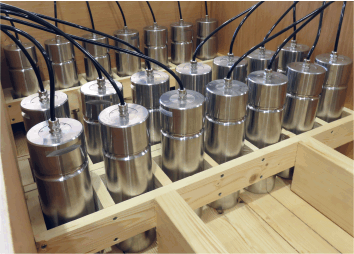

These 950kN rated load monitoring pins are about to be shipped to our distributor in Singapore, Scigate Automation. A total of 25 have been manufactured for one of their customers who orders these load pins on a regular basis.
15th Jan 2021

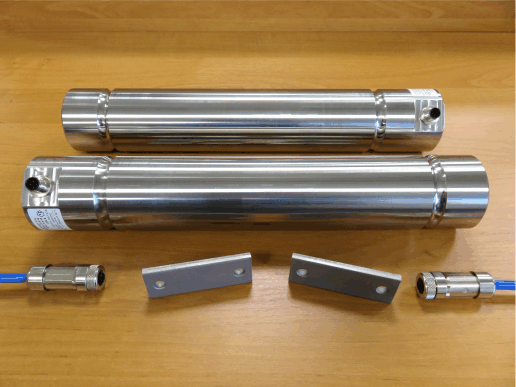

We have recently despached these two 60 tonne rated load pins to a customer in the UK. Approved for use in a Zone 1 hazardous area, these load pins are Intrinsically Safe (Ex i) certified.
15th Sep 2020

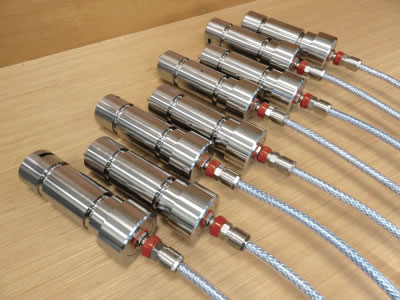

We have just despatched these 20 tonne rated load pins to a customer in the US. They are going to a winch manufacturer and will be installed in the winch to provide load monitoring.
10th Jan 2020

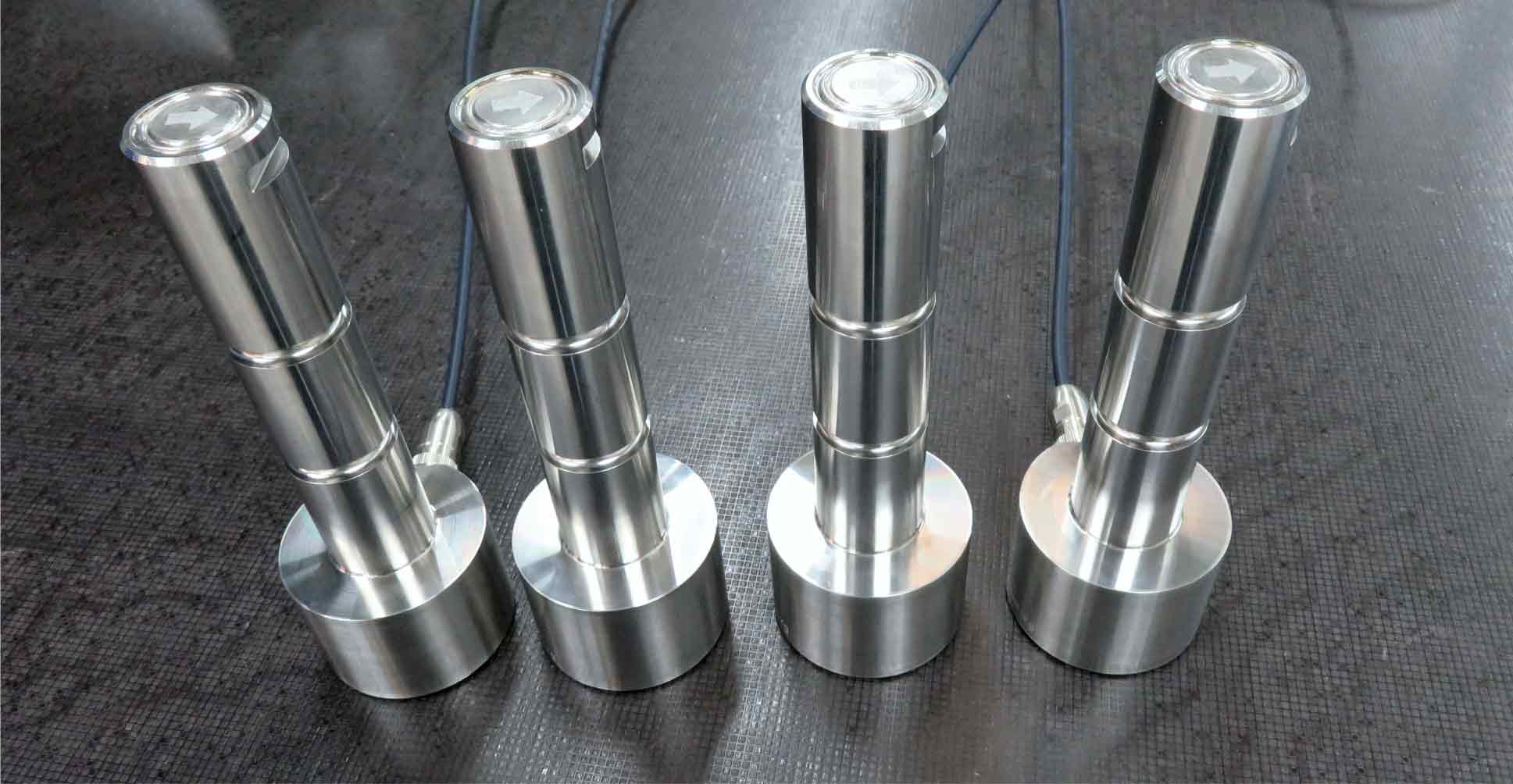

Currently undergoing final calibration are these 4000kg rated load measuring pins.
20th Sep 2019
276te Load Pin for Anchor Winch
Despatched this week to our distributor in Singapore was this stainless steel load pin rated to 276 tonnes.
15th Mar 2019

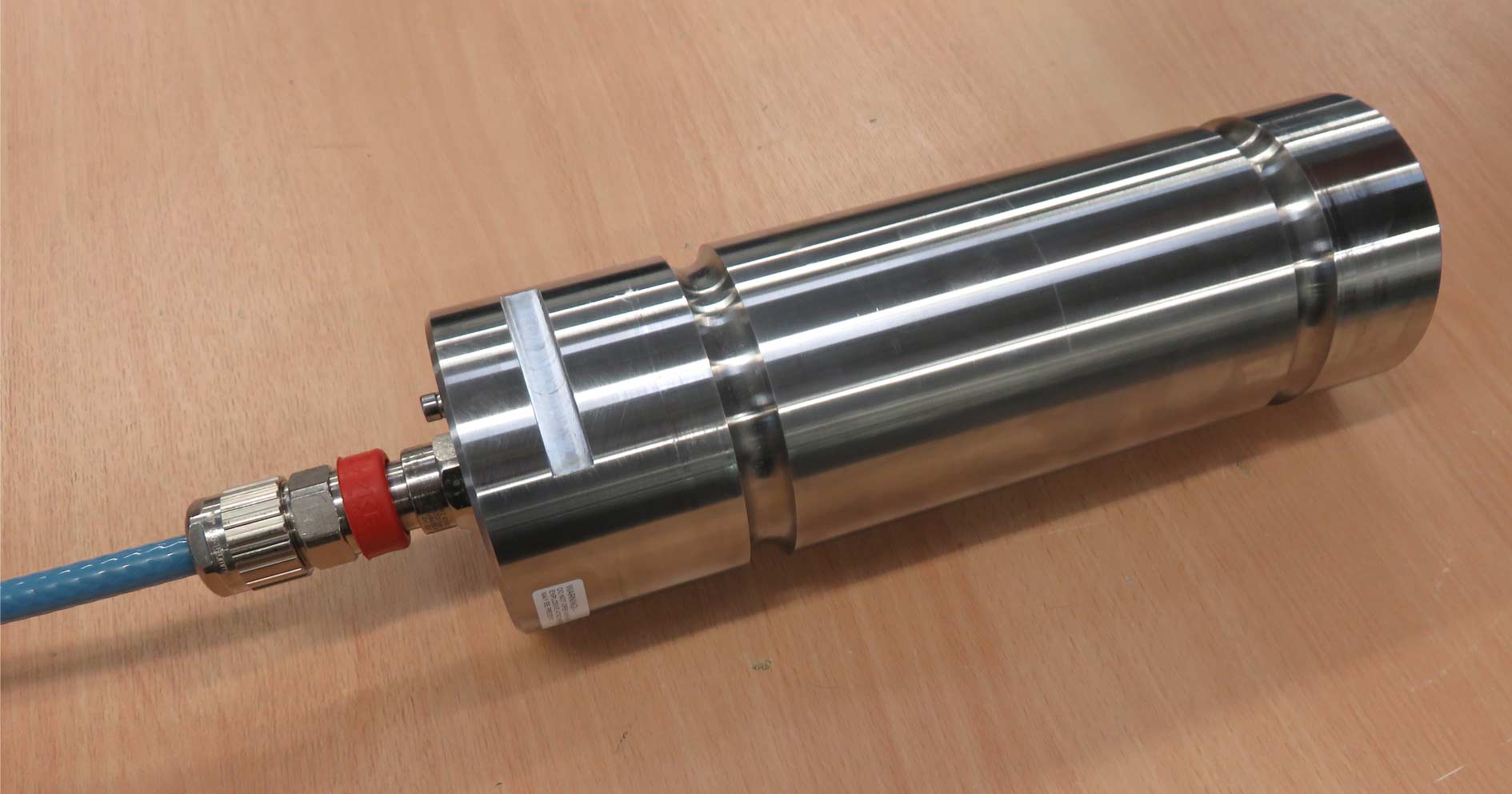

We recently despatched this 750kN ATEX certified load pin to one of our regular customers.
8th Feb 2019
These load pins have been purchased by a leading offshore equipment manufacturer and will be installed in an offshore winch to provide real-time load monitoring and overload protection.
18th Jan 2019

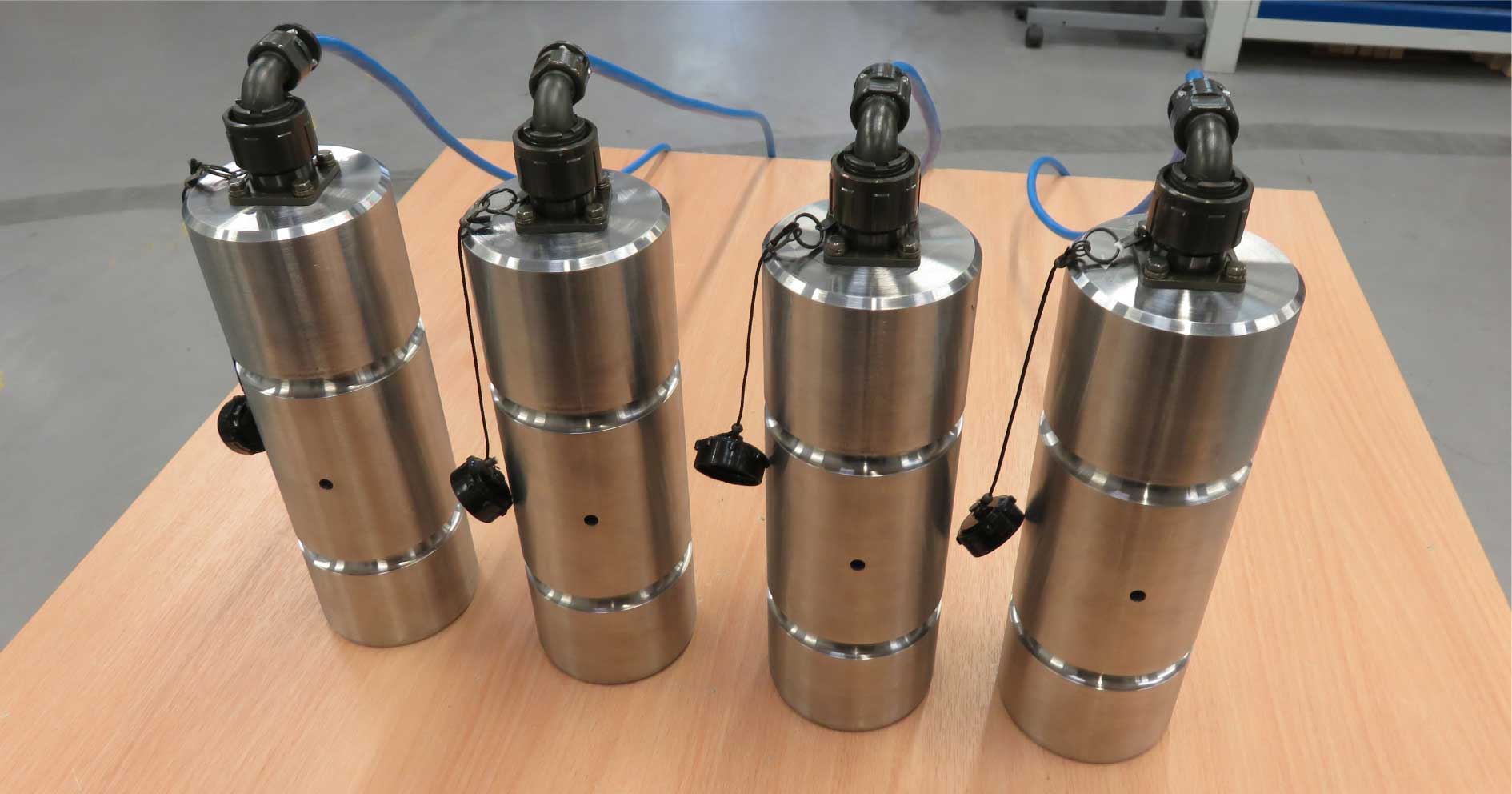

Purchased by our distributor in Singapore, Scigate Automation, but ultimately on their way to a leading offshore deck equipment manufacturer, are these 45te stainless steel load pins.
21st Sep 2018

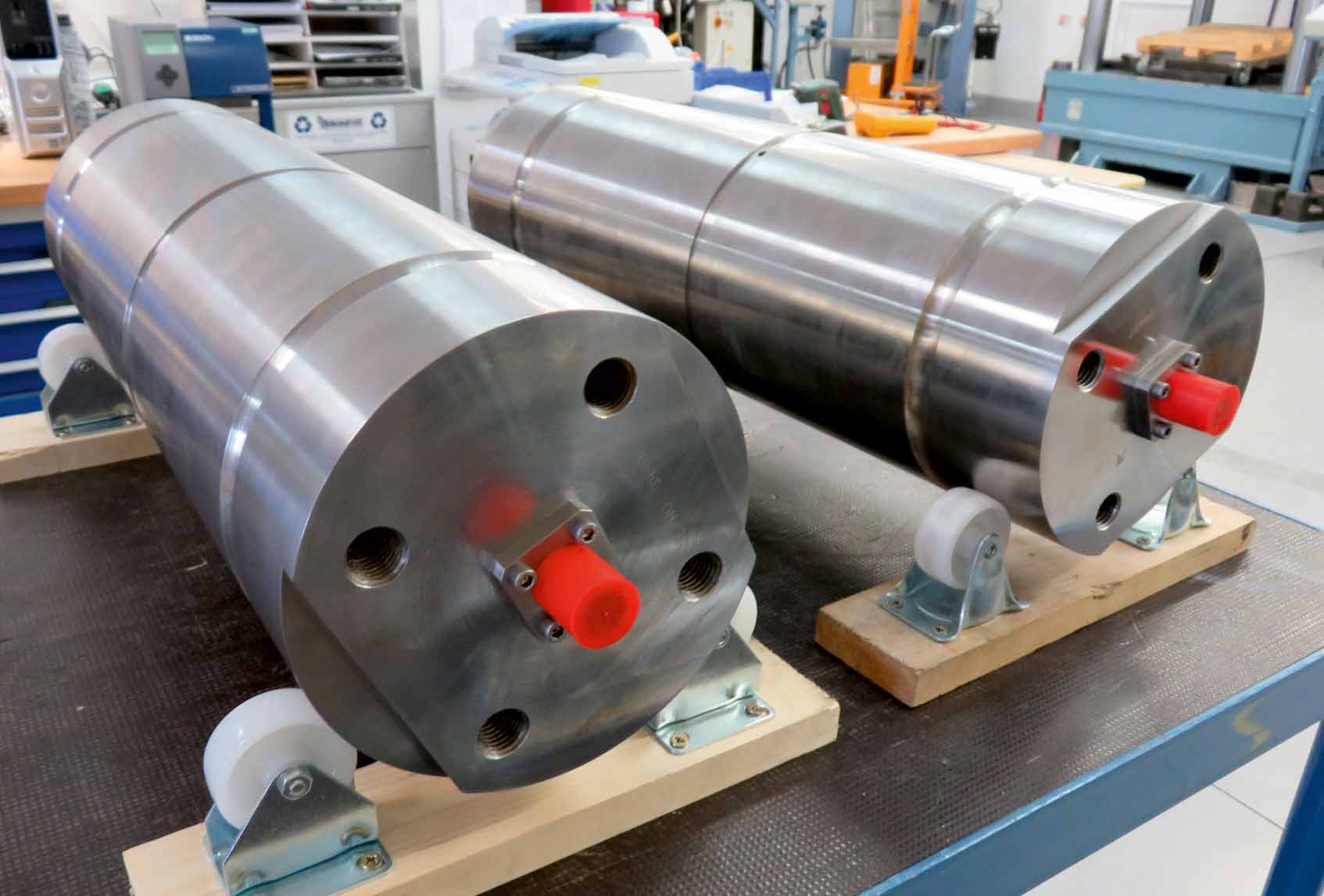

380te Left and Right Hand Load Pins
Just completed an on their way to our customer are these two 380te stainless steel load pins.
17th Aug 2018

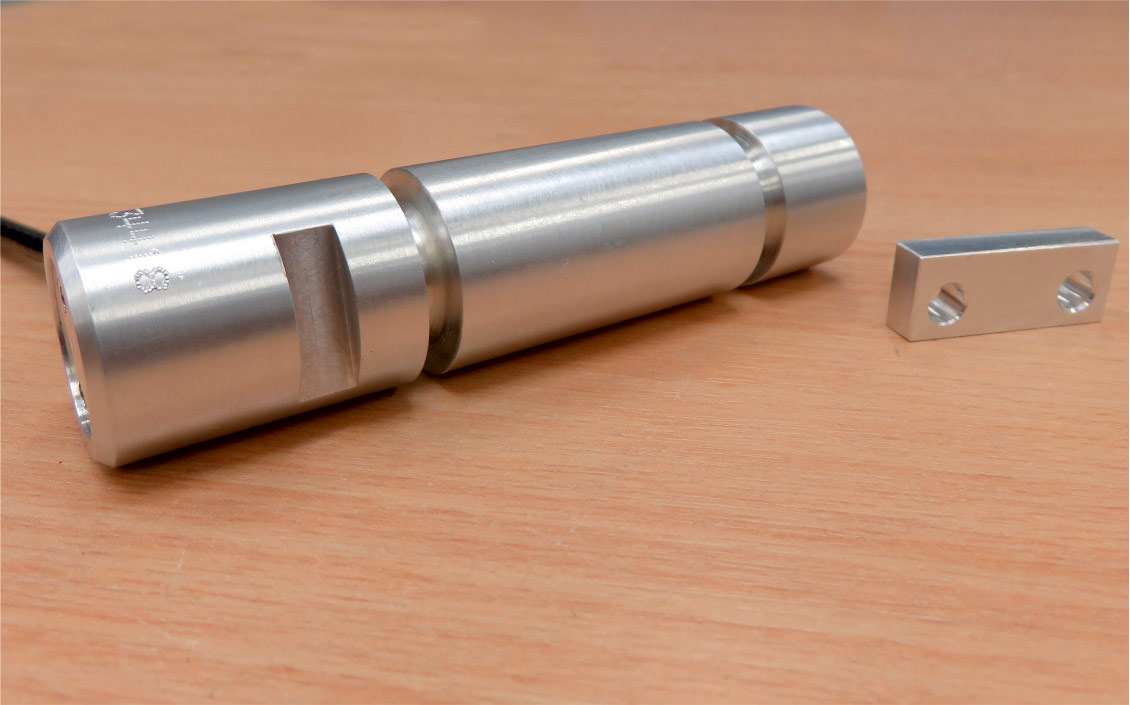

For one of our UK customers we have manufactured this small (Ø25mm x 105mm) aluminium load pin.
13th Apr 2018

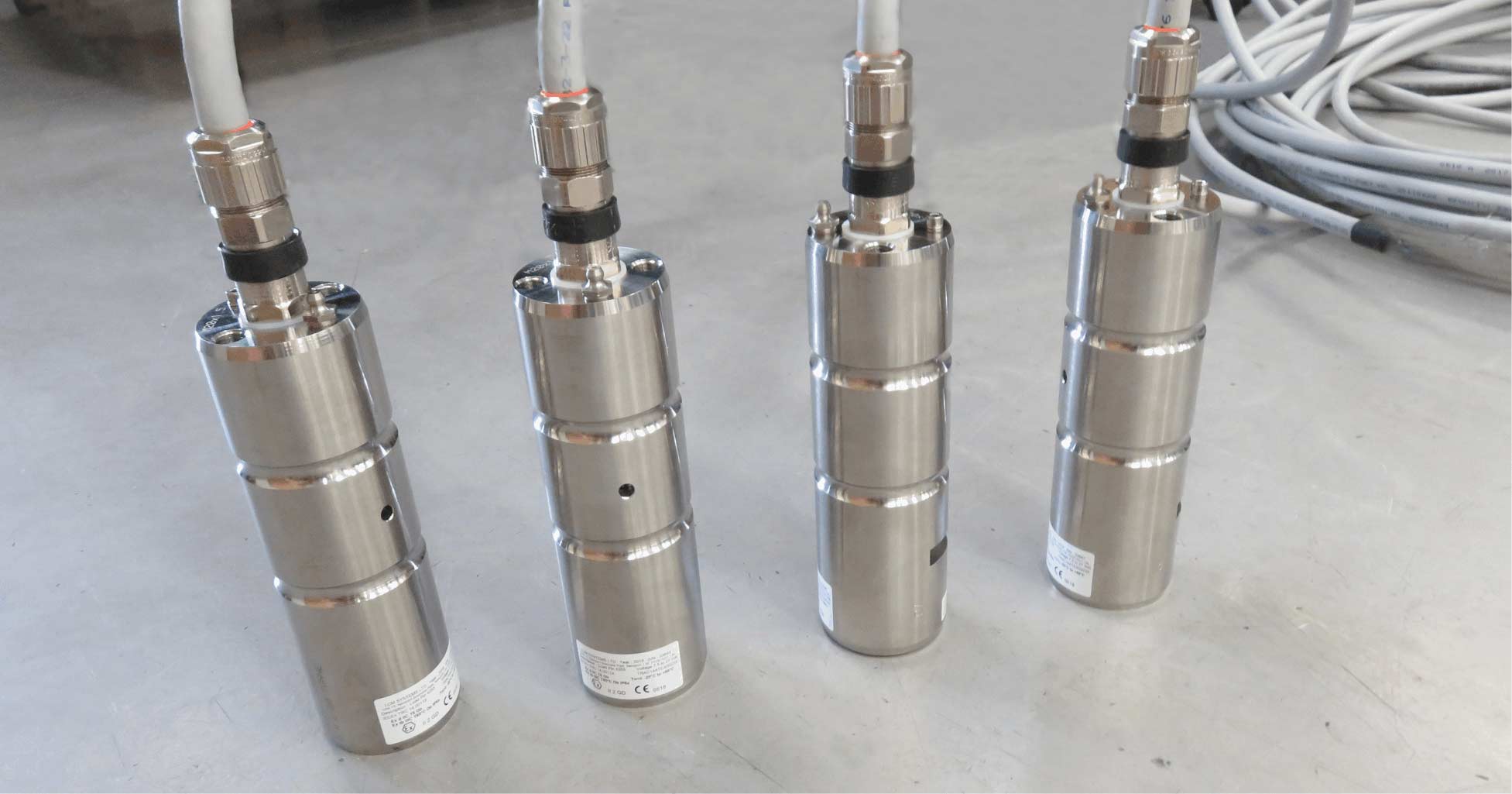

50te ATEX Dual Bridge Load Pins for Winch Load Monitoring Application
Supplied for use as part of a large winch load monitoring system, these 50 tonne ATEX certified load pins will provide feedback from the main winch payout system for additional overload protection.
9th Mar 2018

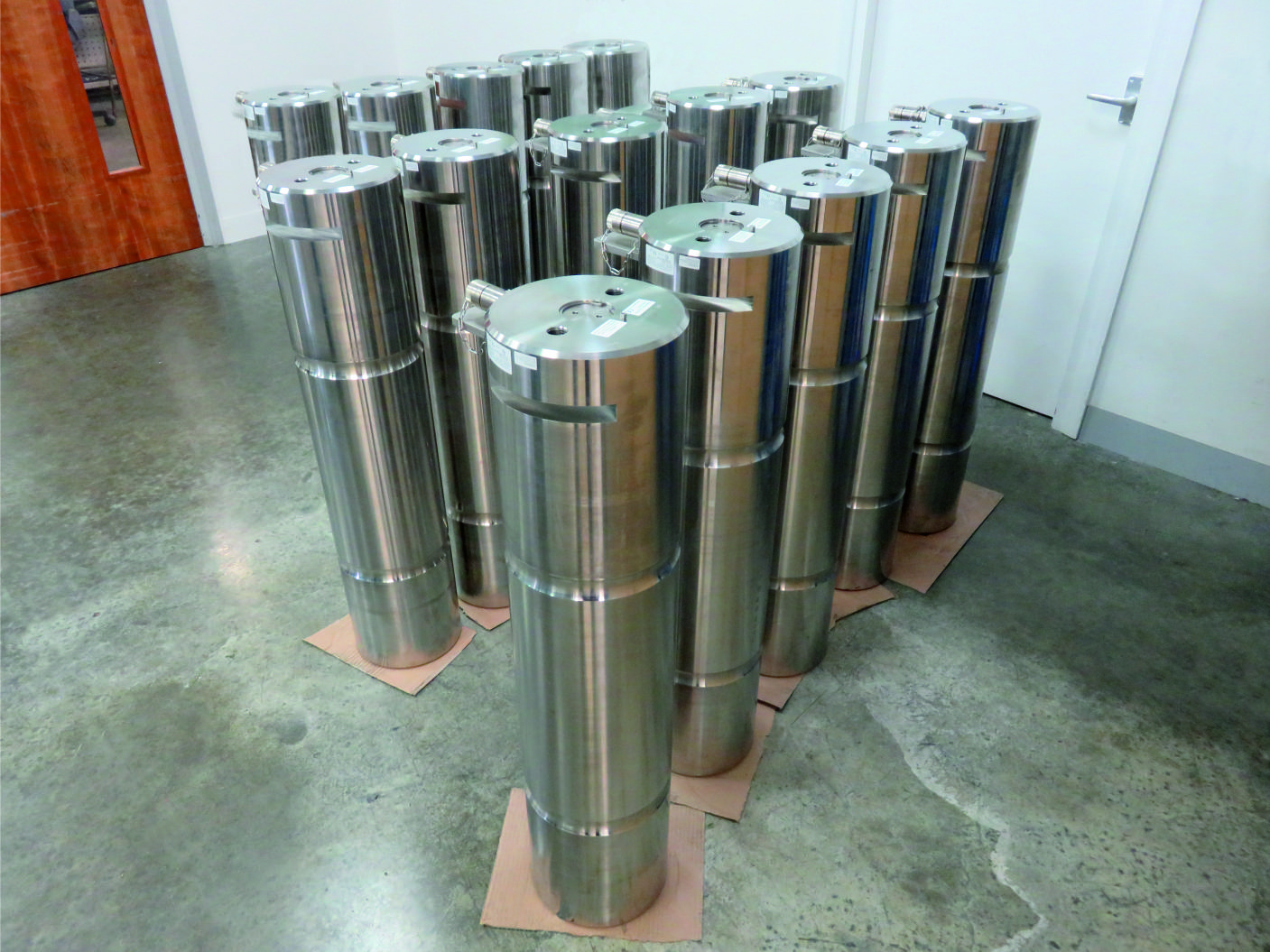

32 x 650te ATEX Load Pins for Offshore Winch Application
Ready for despatch this week are 32 ATEX dual bridge load pins with integral amplifiers.
29th Sep 2017

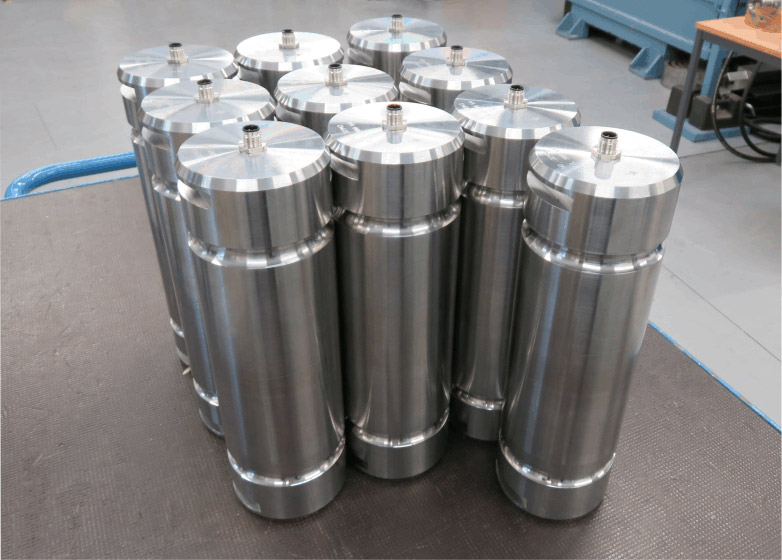

10 x 900kN Load Pins for Marine Mooring Winches
Leaving the factory today are 10 x 900kN load pins for a European customer that specialises in the design of winch systems and deck equipment for the marine and offshore industries.
13th Apr 2017

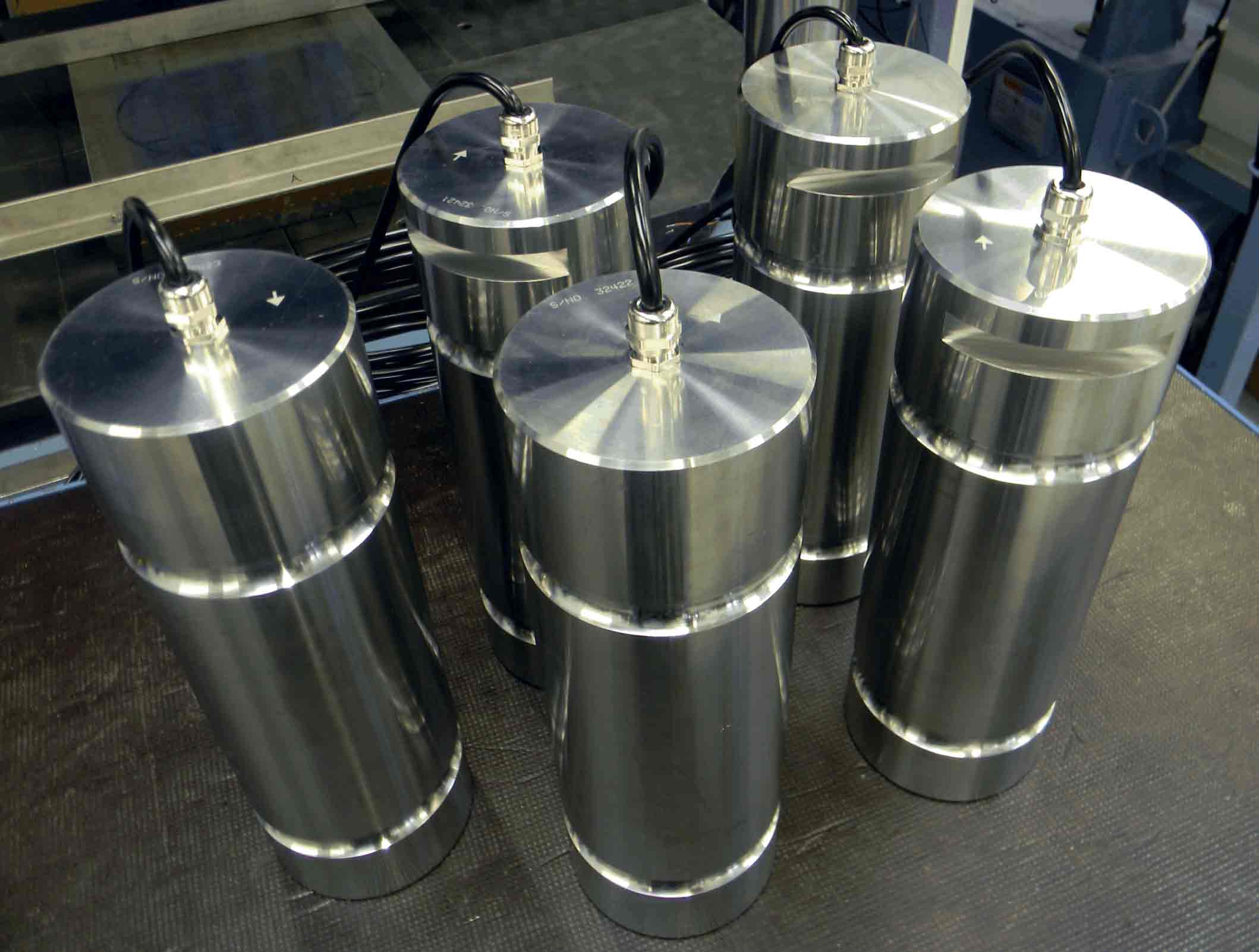

150te Load Pins Supplied for Towing Winch Application
Leaving the factory today are 5 x 150 tonne load pins, which will be installed in marine towing winches.
