Applications Material Test Machines
Material Test Machines
Material testing machines are commonly used to test the tensile and compressive strength of a wide range of raw materials, components and finished goods to evaluate the physical properties of the material (particularly in relation to its strength and performance), by subjecting it to tension, compression, bending etc.
These tests are required for a number of reasons, including for production testing, quality control, laboratory testing, research and education. The types of materials tested range from plastics, rubbers, electronic components, metals, packaging, adhesives and textiles.
The material testing machine incorporates a load cell to measure the compressive, tensile or bending force the material is being subjected to, and a wide series of tests are available for establishing tensile strength, shear strength, compressive strength, stiffness, puncture and burst resistance, to name but a few. Many of these are required to demonstrate compliance with international testing standards that have been put in place to ensure the material meets specific safety criteria.
LCM Systems designs and manufactures a range of load cells that are suitable for this application, some of which are available from our standard range, while others are custom designed to meet the criteria needed to fit a specific material test machine.
Below is a selection of some of our most popular standard load cell and sensor based products used for Material Test Machines applications
CPA
- Ratings from 2 tonnes to 1000 tonnes
- Stainless steel construction
- Environmentally sealed to IP67
PTC-1
- From 5kN to 2000kN
- Stainless steel construction
- Environmentally sealed to IP66

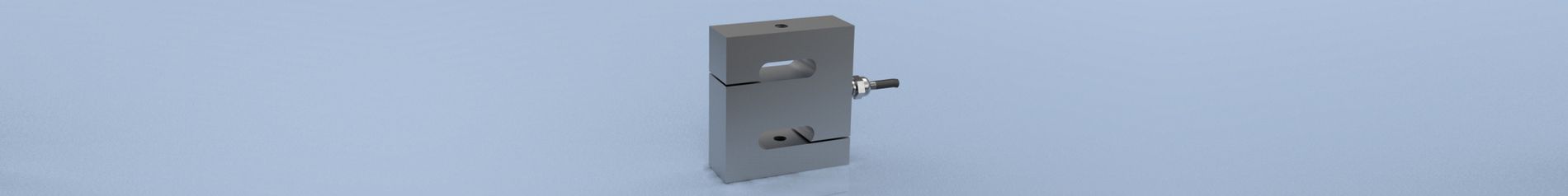

STA-1
- From 50kgs to 300kg
- Aluminium alloy construction
- Environmentally sealed to IP66
STA-2
- Ratings from 250kgs to 20 tonnes
- Fully welded stainless steel
- Environmentally sealed to IP68
STA-3
- From 50kgs to 1000kgs
- Alloy steel nickel plated construction
- Environmentally sealed to IP67
STA-4
- 50kgs to 5000kgs
- Alloy steel nickel plated construction
- Environmentally sealed to IP67
STA-7
- Ratings from 1kg to 50kgs
- High accuracy
- Aluminium alloy construction
TCA
- Ratings from 1 tonne to 100 tonnes
- Stainless steel construction
- Environmentally sealed to IP66
Below is a selection of our most popular standard instrumentation products used for Material Test Machines applications
DSC
- Strain gauge to digital data converter
- RS485 and RS232 versions available
- High speed (up to 500 readings/sec)
DSCUSB
- USB conditioning module
- Quick and easy connectivity via USB
- Strain gauge bridge input
DSJ1
- DSC docking station
- Single channel
- Digital outputs including RS232/RS485
PMD-STRAIN
- Load cell input
- Wide selection of outputs
- 14.2mm high red LED display
T24-ACMi
- Compact wireless sensor transmitter
- Battery powered for up to 2 months
- IP67 sealed enclosure
T24-HS-LS
- Simple wireless handheld indicator
- Connects to a single acquisition unit
- Gross/Net weight facility
TR150
- Battery powered
- Handheld and portable
- Load cell input
What Material Test Machines Applications have LCM Systems already satisfied?
Please review some of the recent news items relating to Material Test Machines load cells, load pins and associated instrumentation that we have supplied to our customer base. These will help demonstrate the experience we have in finding solutions for our customers, in a addition to the standard product offering available for this application.
10th Mar 2023
500N DCE Tension & Compression Load Cell
This tiny DCE tension and compression load cell has been purchased by a customer in France via our e-commerce website. Available ex-stock, our DCE load cells come in load ratings from 100N to 50kN.
30th Jun 2022
5kN DCE Tension & Compression Load Cells
These tiny DCE tension and compression load cells have been purchased by our distributor in Singapore for a customer who will use them to measure the central force on round parts using four actuators.
1st Apr 2022
1500te Tension & Compression Load Cell
Recently shipped to a research institute in Germany that specialises in subsurface energy systems was this rather hefty 1500 tonne rated tension and compression load cell.
23rd Oct 2020
2000te Tension & Compression Load Cells
Awaiting collection are these two 2000 tonne stainless steel tension and compression load cells that have been ordered by a customer in China.
13th Sep 2019
100 Tonne Tension & Compression Load Cell
We have recently delivered a 100 tonne TCA load cell to one of our regular UK customers.
28th Jun 2019
STA-4 Tension & Compression Load Cells
Supplied to one of our regular UK customers were these 5000kg rated STA-4 tension and compression load cells.
17th Apr 2019

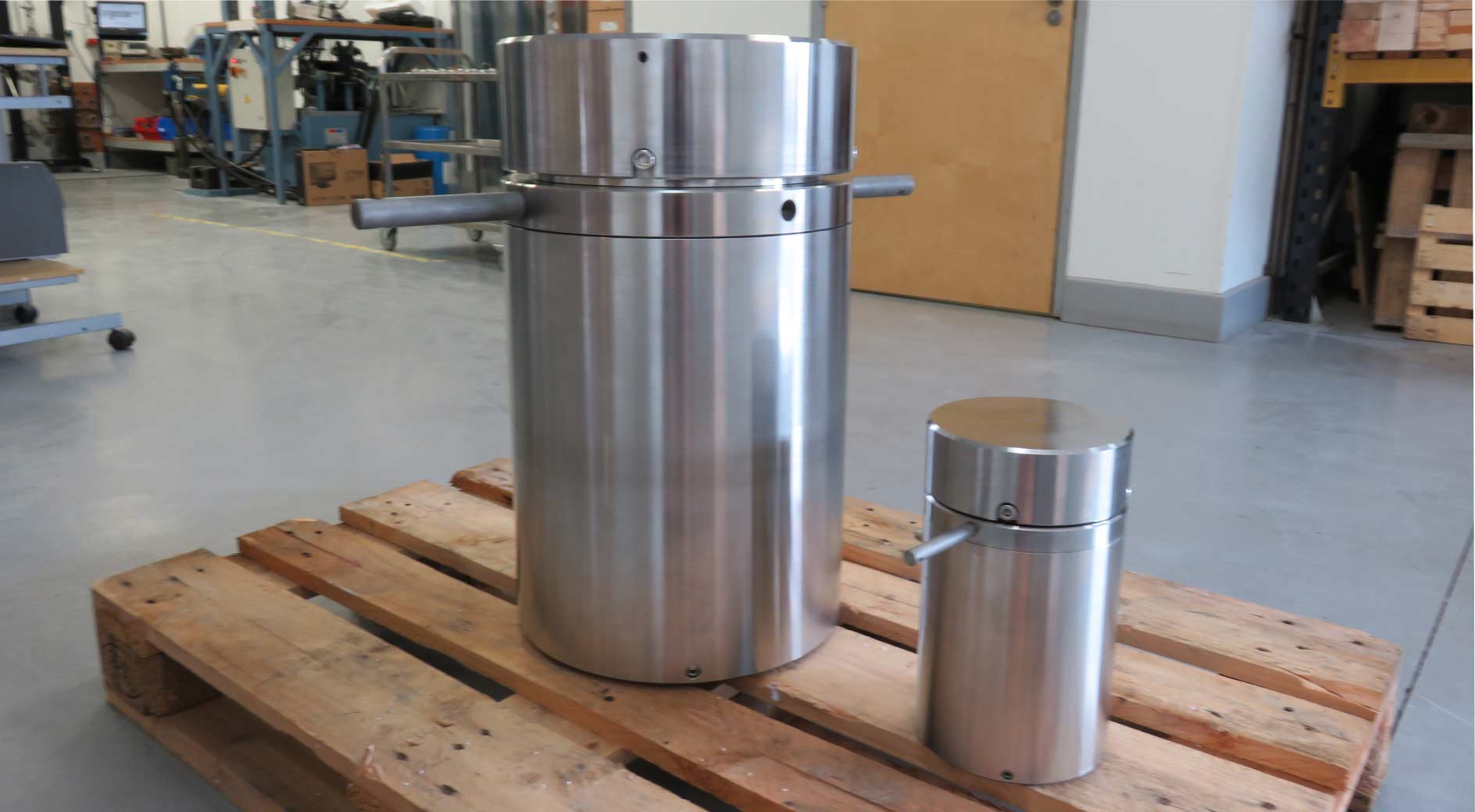

20,000kN & 5000kN Compression Load Cells
Due to be despatched imminently to a customer in Korea are these two stainless steel compression load cells.
12th Apr 2019

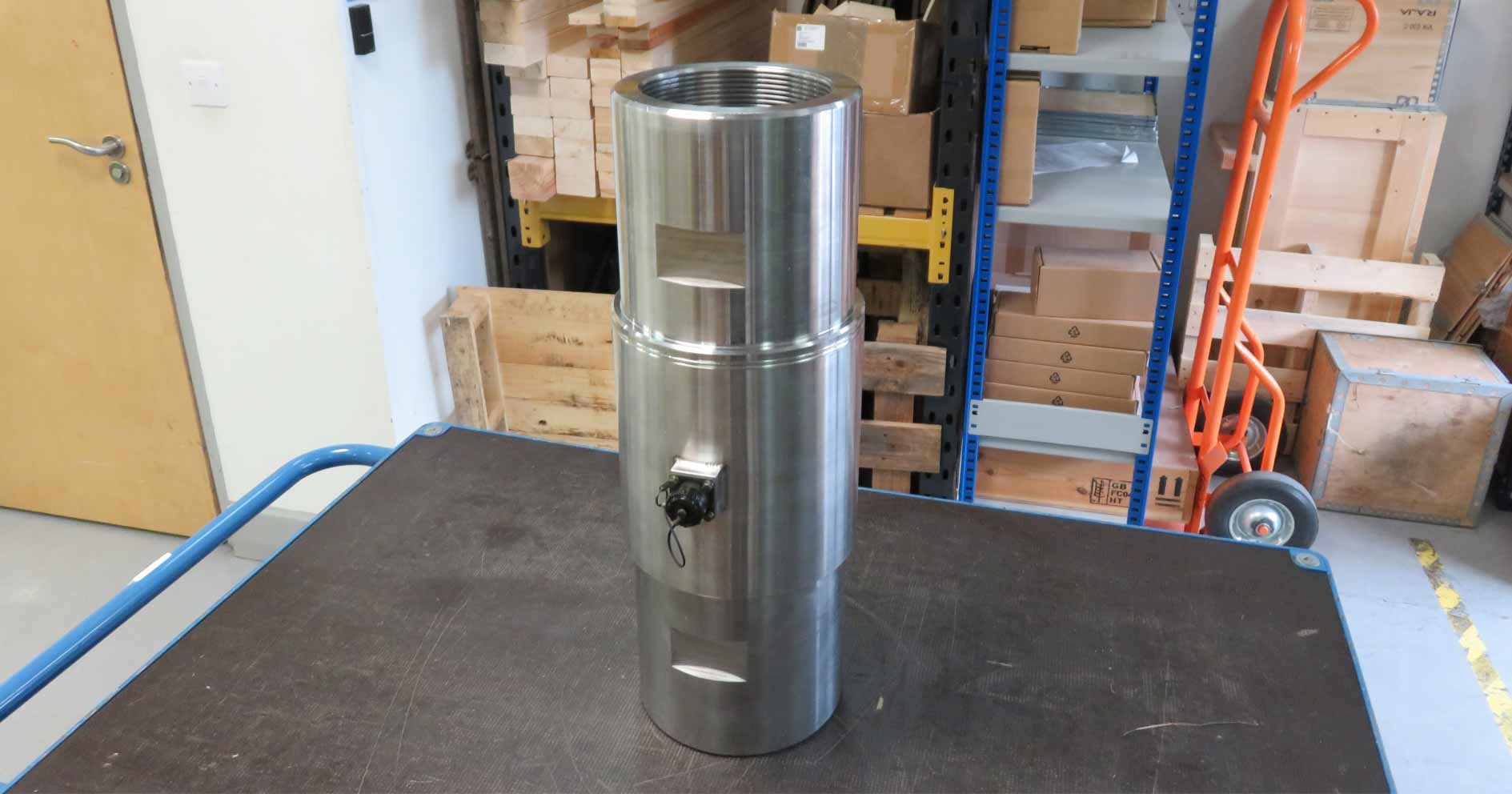

200te Tension & Compression Load Cell
For a UK customer we have designed and manufactured a 200 tonne load cell suitable for use in both tension and compression.
22nd Mar 2019

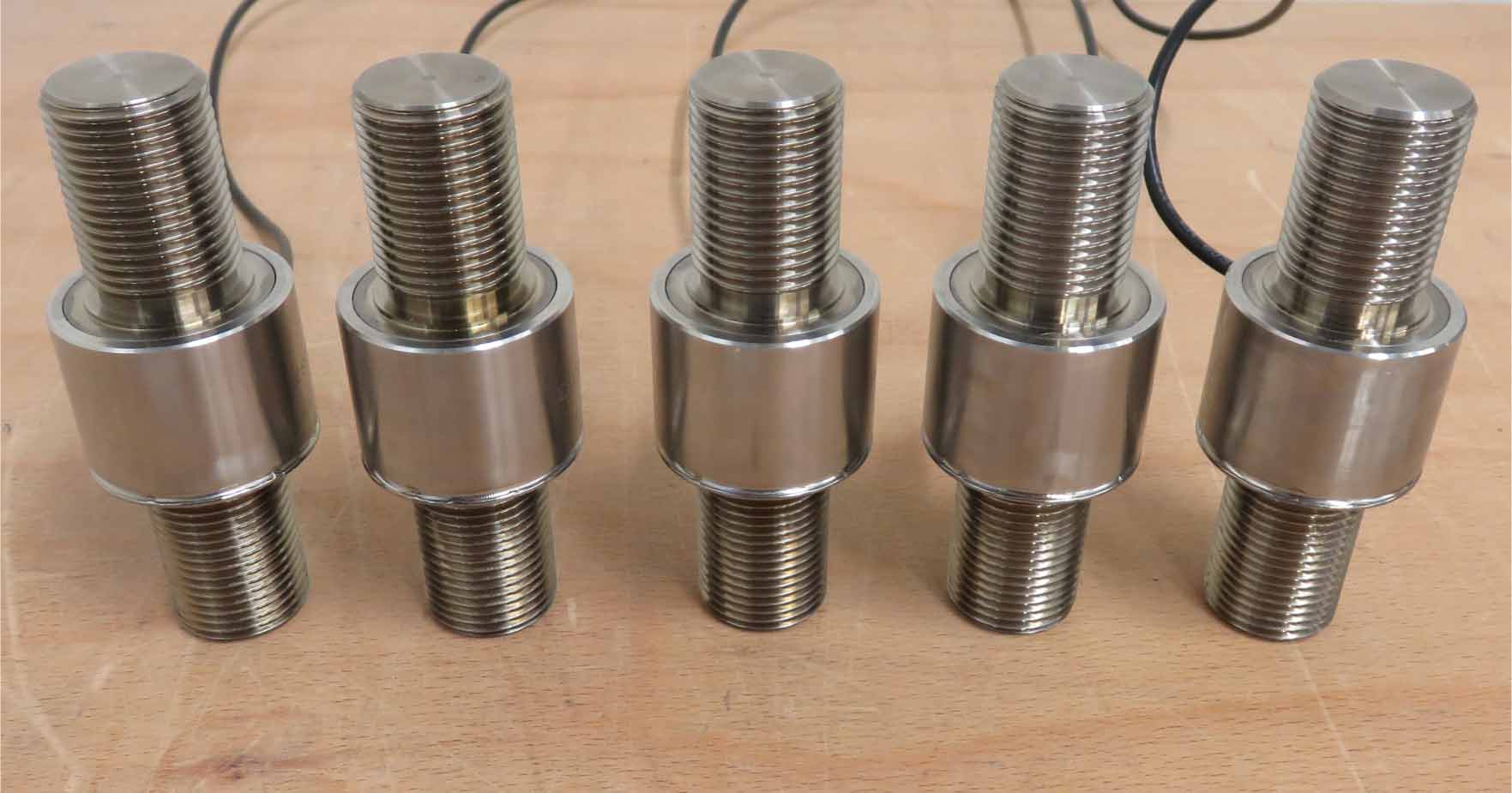

50kN Tension & Compression Load Cells
Ready to go to a customer in Australia for a component testing application are these 50kN tension and compression load cells.
15th Jun 2018

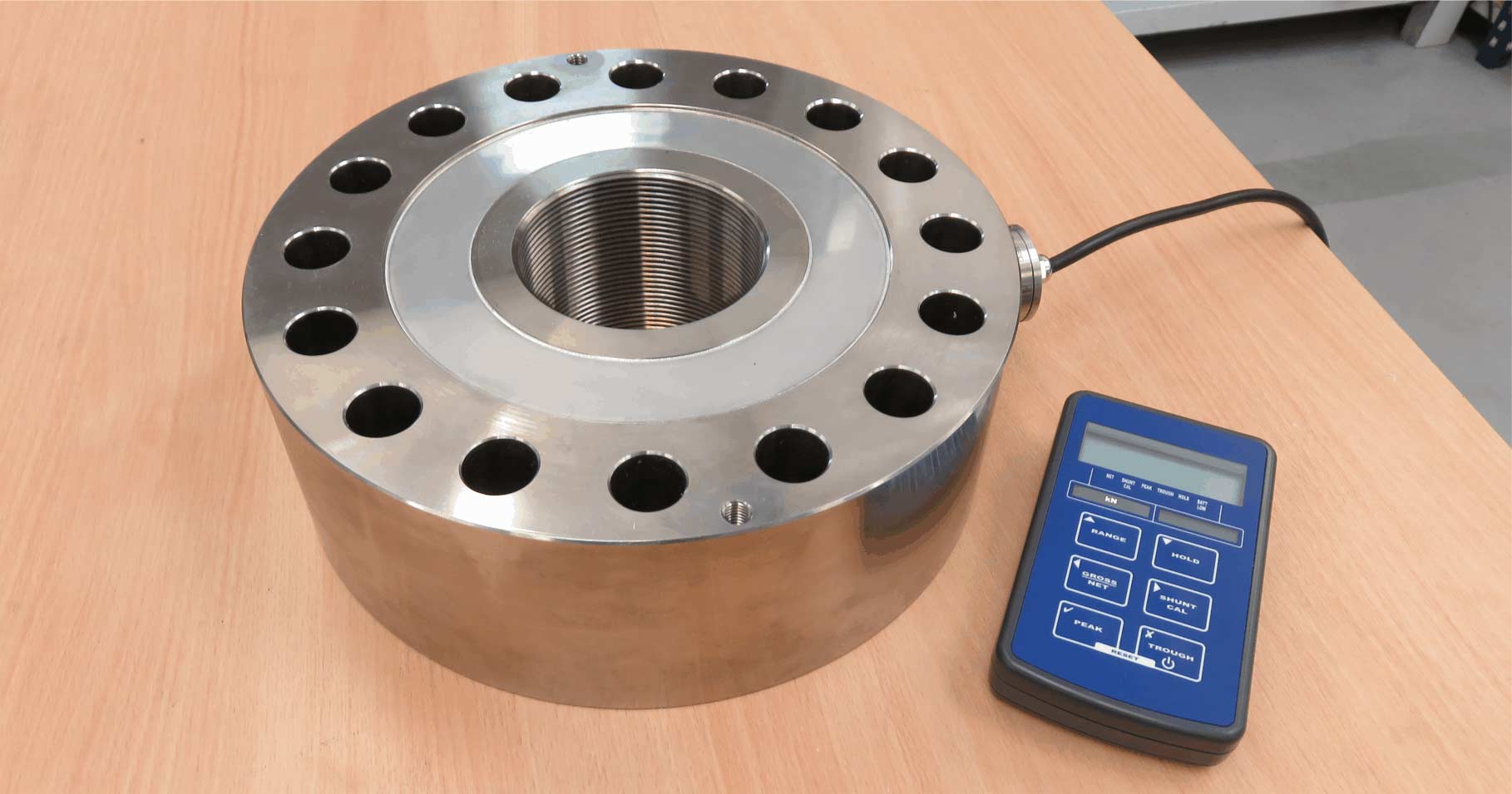

200te Low Profile Compression Load Cell
Off to China this week is a 200te low profile compression load cell from our standard PTC-1 range.
5th Jan 2018

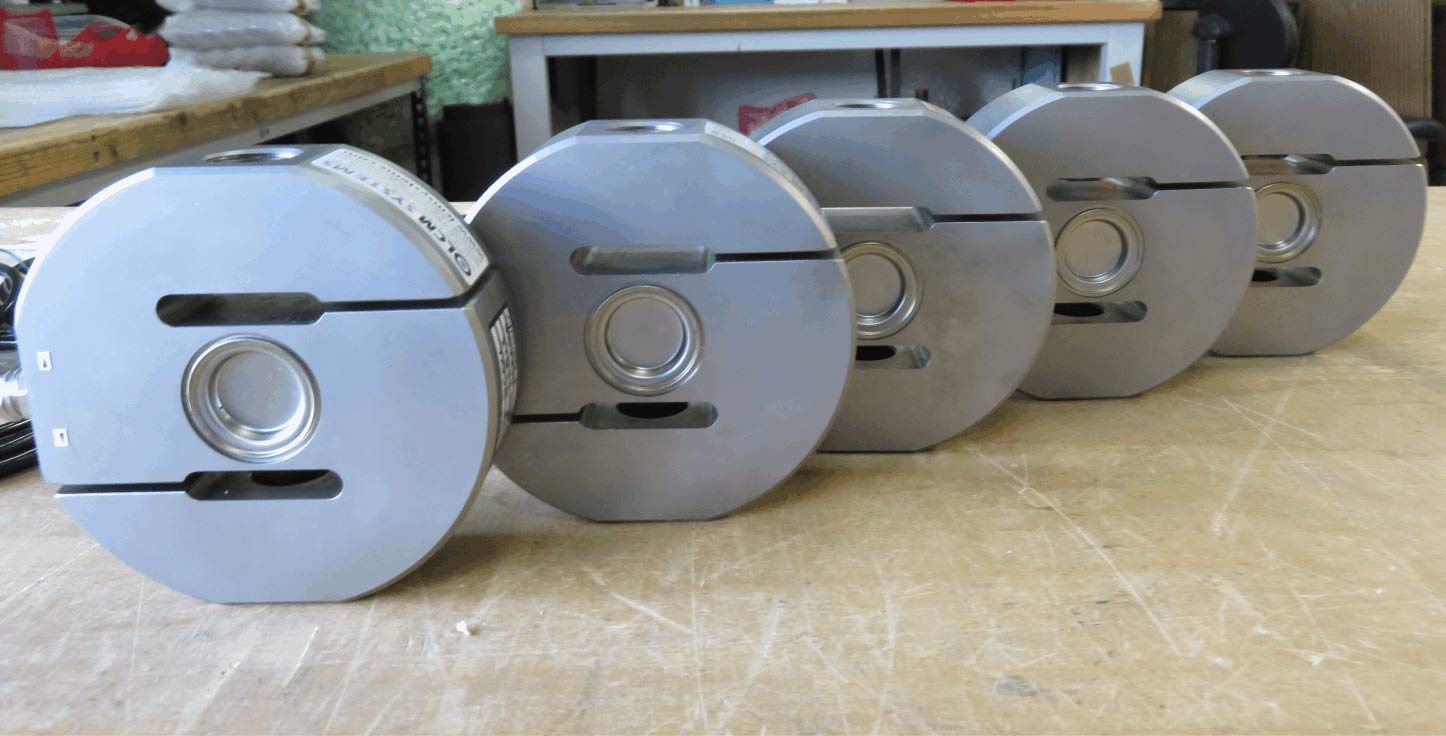

5000kg Stainless Steel S Type Load Cells
Being despatched today to one of our regular UK customers are these 5,000kg tension and compression S Type load cells.
22nd Sep 2017
100te Tension & Compression for Calibration Test Rig
Despatched earlier this week and on its way to one of our regular customers is a 100te TCA tension and compression load cell.
31st Aug 2017

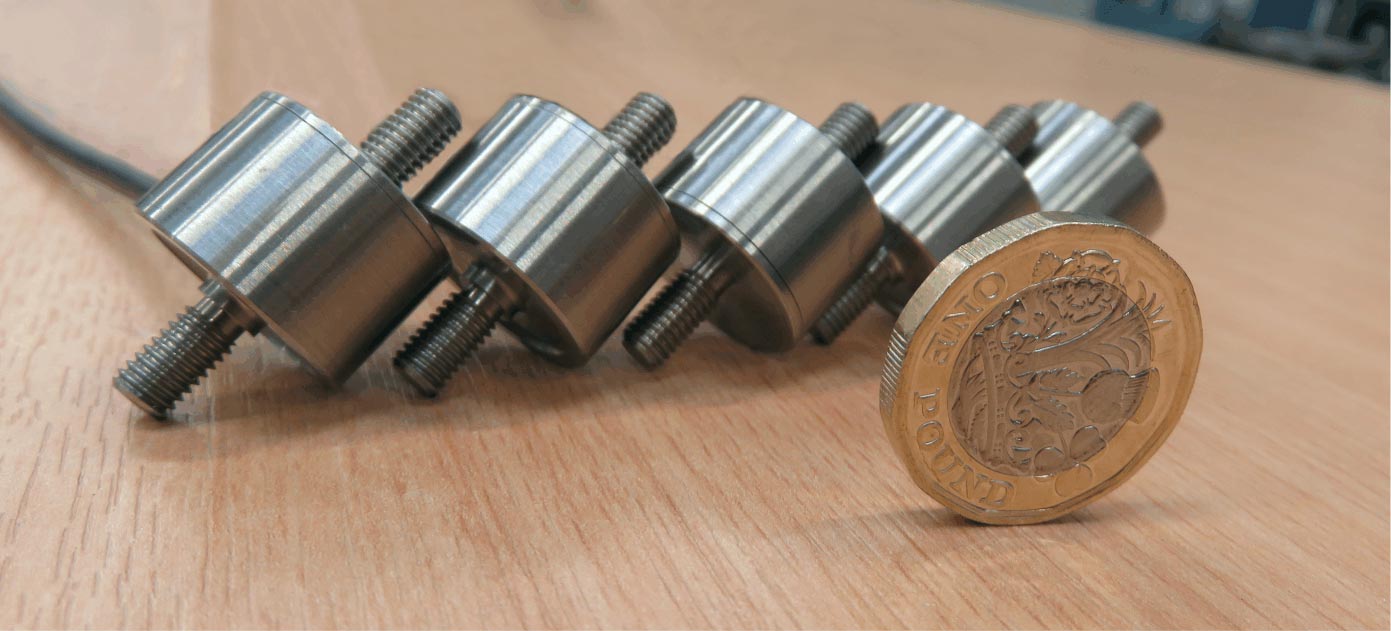

5 x 1kN Tension Load Cells for Test Machine Application
In addition to the larger load cells we supply, we also manufacture much smaller load cells, like these DCE tension and compression load cells that will be despatched tomorrow to one of our UK customers.
24th Mar 2017
High Accuracy Load Cells for Test Machine Application
Being used in texture analysis and powder characterisation equipment are 10 of our smaller load cells.
18th Jan 2017

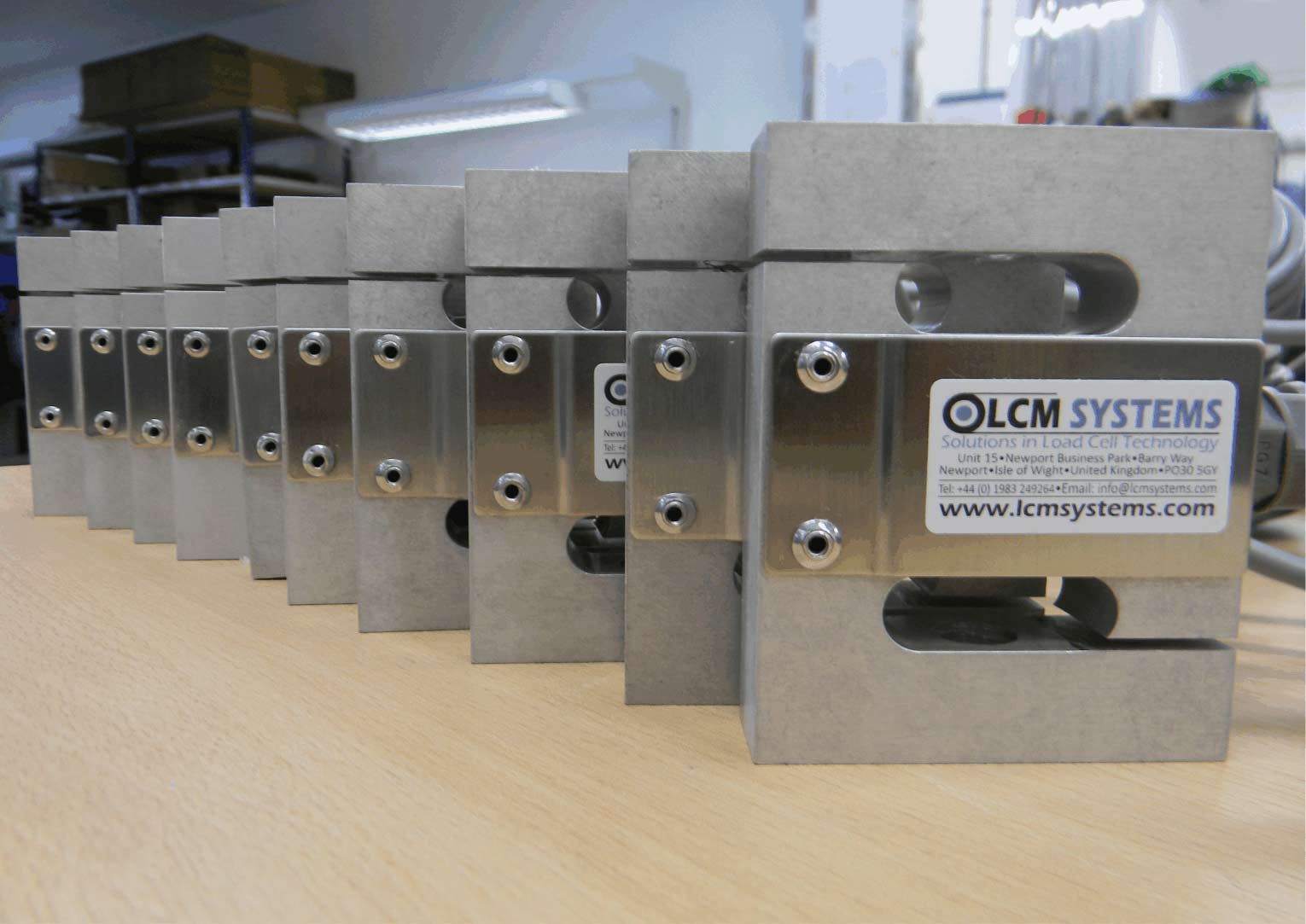

Load Cells used for Portable Saddle Clamp Tester
Leaving our factory this week are 10 off S-type load cells, that will be used in Portable Saddle Clamp Testers.
